SVS-1B Volume Stabilizer
now with Enhanced Sound Circuitry
Sima Products Corporation
140 Pennsylvania Ave,
Bld #5, Oakmont PA 15139
412-828-3700
800-345-7462
www.simacorp.com

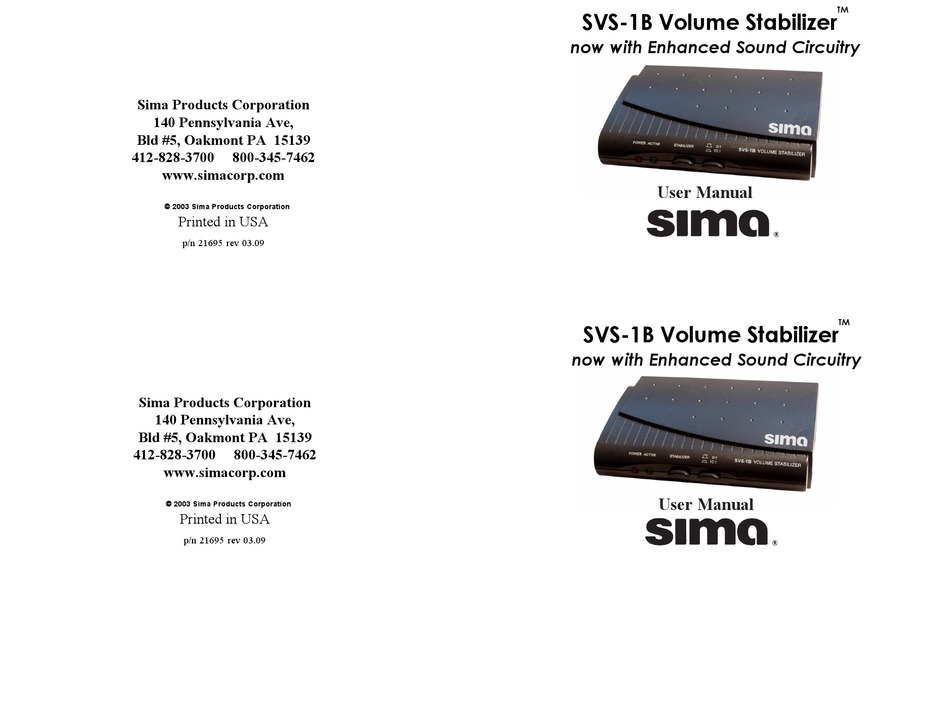

User Manual
2003 Sima Products Corporation
Printed in USA
p/n 21695 rev 03.09
TM
SVS-1B Volume Stabilizer
now with Enhanced Sound Circuitry
Sima Products Corporation
140 Pennsylvania Ave,
Bld #5, Oakmont PA 15139
412-828-3700
800-345-7462
www.simacorp.com
User Manual
2003 Sima Products Corporation
Printed in USA
p/n 21695 rev 03.09
Advertisement
Table of Contents
Related Manuals for Sima SVS-1B
Summary of Contents for Sima SVS-1B
- Page 1 140 Pennsylvania Ave, Bld #5, Oakmont PA 15139 412-828-3700 800-345-7462 www.simacorp.com User Manual 2003 Sima Products Corporation Printed in USA p/n 21695 rev 03.09 SVS-1B Volume Stabilizer now with Enhanced Sound Circuitry Sima Products Corporation...
- Page 2 Why are the attack and decay time constants different? The attack time is the time for the SVS-1B to respond to an increase in volume. It needs to be very fast in order to “catch” a sudden burst of music. The attack time constant of the SVS- 1B is 2 msec ( 0.001 seconds) and is an exponential shape so that the slope (change of...
-
Page 3: Typical Questions
- Automatic gain control devices are compressors with an infinite compression slope, so they completely remove the dynamic range from music. In the MAX position, the SVS-1B also provides a flat output vs. input, yet retains the instantaneous dynamics of the music. -
Page 4: Specifications
Table of Contents Subject Warranty ... 2 Introduction ... 5 Product Overview ... 6-9 Installation ... 10-13 Operation ... 14-15 Technical Information ... 16-19 Trouble Shooting ... 20 Specifications ... 21 Typical Questions ... 22-23 Table of Contents Subject Warranty ... 2 Introduction ... -
Page 5: Troubleshooting
Congratulations on purchasing the SVS-1B Volume Stabilizer from Sima. It has been designed for easy installation and use. Please read pages 10 to 15 for the proper hook up and operation of the SVS-1B before using the unit. For more technical information on how the unit operates, refer to the Technical Information Chapter starting on page 16. -
Page 6: Front Panel
Figure 1 Front Panel Figure 1 Front Panel OUTPUT Figure 8 - Effect of the Volume Stabilization Setting on Output OUTPUT Figure 8 - Effect of the Volume Stabilization Setting on Output... - Page 7 In the bypass mode, the output signal is the same level as the input signal regardless of volume. As you can see in figure 8, The SVS-1B’s Volume Stabilizer switch allows you to select either 2:1 curve (NORM) or an almost flat volume stabilization (MAX). With...
-
Page 8: Technical Information
It increases the signals below a threshold and decreases the signals above this threshold. The SVS-1B changes only the volume just like a volume control. It does not change any frequency response or phase information for optimal sound quality and so it works with surround sound systems. - Page 9 Active 8) ON / OFF SWITCH – Turns on power to the unit. Right Output 9) WALL MOUNTED POWER TRANSFORMER - Supplies Bypass 12 VDC to the SVS-1B. Signal Path Control Path Bypass Left Output 5) AUDIO OUT - Outputs to go to the input of a cassette deck...
- Page 10 Active Light The ACTIVE LIGHT show when the SVS-1B is in the active mode. If the light is out the unit is in the BYPASS mode or the power is removed. Volume Stabilization Setting The optimal setting of the Volume Stabilizer switch depends upon the type of music you listen to, how you intend to use the SVS-1B and your preferences.
-
Page 11: Operation
With the MODE SWITCH in the “OUT” (bypass) position (ACTIVE LIGHT is off), there is no change to the audio signal. The SVS-1B will work with power on or off in this mode. Likewise, adjustment of the Volume Stabilization switch will not have any affect. - Page 12 VCR or satellite receiver on your Figure 5 Connection in a Tape Loop Useful if you want the SVS-1B to affect the output of any device connected to your receiver. Simply select the desired input and then monitor the “tape” to hear the SVS-1B.
