7 Input A/V Switcher
with Component Video, Digital Audio, Conversion,
Automatic Input Mode and Volume Stabilizer
Model VS-712EX
User Manual
Package Contents:
1 - VS-712EX A/V switcher unit
1 - Power Adapter, (120VAC input,15VDC output)
1 - IR remote control, with batteries
1 - This instruction manual
1 – SVS-Remote Control to RS-232C Adapter
Options (Available separately)
19" Rack Mount Kit
A/V Cables
Advertisement
Table of Contents
Related Manuals for Sima VS-712 EX
Summary of Contents for Sima VS-712 EX
-

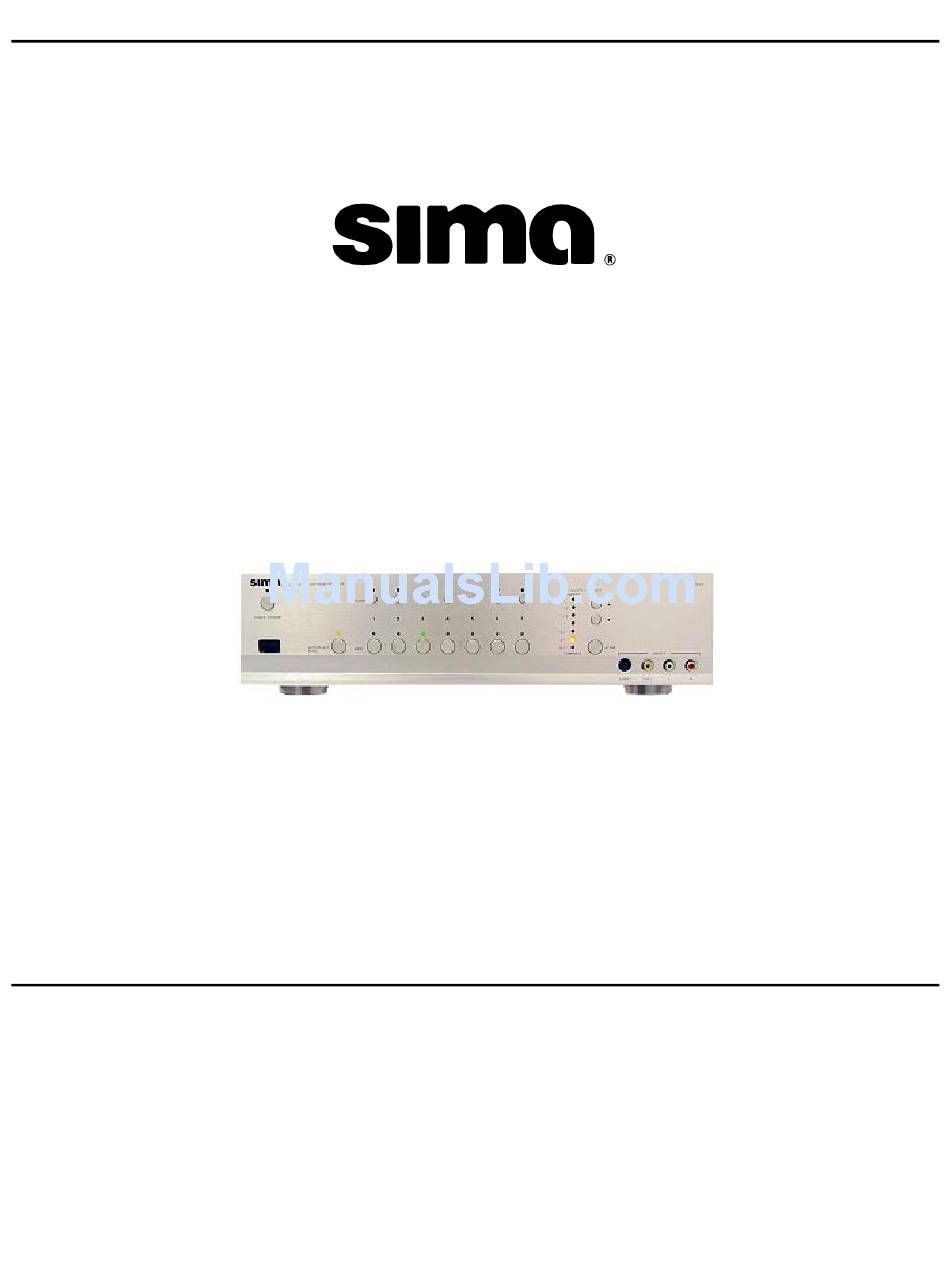

Page 1: User Manual
7 Input A/V Switcher with Component Video, Digital Audio, Conversion, Automatic Input Mode and Volume Stabilizer Model VS-712EX User Manual Package Contents: 1 - VS-712EX A/V switcher unit 1 - Power Adapter, (120VAC input,15VDC output) 1 - IR remote control, with batteries 1 - This instruction manual 1 –... -
Page 2: Caution
2003 by Sima Products Corp. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without prior written permission from Sima Products Corp. Page 2... -
Page 3: Table Of Contents
Table of Contents PACKAGE CONTENTS:... 1 CAUTION:... 2 INTRODUCTION ... 4 FRONT PANEL ... 5 REAR PANEL ... 6 IR REMOTE CONTROL, RM-18... 7 TYPICAL HOOK UP ... 8 OPERATION... 11 ... 11 OWER ... 11 NPUTS ... 11 ECORD NPUTS ... -
Page 4: Introduction
Introduction Congratulations on purchasing Sima’s Model VS-712EX, 7 Input Audio / Video Switcher with Automatic Input Mode (AUTO SELECT) and Volume Stabilization. It has been designed for use with Home Theater, DSS Satellite, DVD, HDTV, Video Games, Audio Recording Equipment, as well as for background music applications. -
Page 5: Front Panel
Front Panel Controls 1 - IR Receive Window - 2 - Power / Standby - Press to toggle the unit between modes. The red Standby indicator above the button will be lit when the unit is in Standby Mode. 3 - Record Inputs 1 through 7 - Press to select the desired input to send to the record output. -
Page 6: Rear Panel
10 – DIP Switch setting to set the default operation of the unit. 11 - Wired IR Input connect to your home automation system or Sima SUR-47 Wireless LCD Touchscreen Remote Control 12 - SVS-CONTROL connect to your home automation system or PC. -
Page 7: Ir Remote Control, Rm-18
IR Remote Control, RM-18 Fig. 3, RM-18 The RM-18 IR remote control allows you to control all of the functions available from the unit’s front panel, with the addition of a DIM setting. POWER – Toggles between Active and Standby mode. DIM - Pressing this button cycles through four levels of brightness on the front panel lights - bright, medium, dim or off. -
Page 8: Typical Hook Up
Typical Hook up Step 1 Connect the AC adapter to 120 VAC and plug the DC cord into the 15 VDC input on the rear of the VS- 712EX. Step 2 You will determine how you want to use your system. We have provided two sample hook-up diagrams to help you determine how to connect the components of your system. - Page 9 Fig. 5 - Basic Hook-up #1 Figure 5 below shows a hook-up with only two input sources. This diagram shows only inputs 1 and 2 being used. Be sure you use either S-Video or composite video inputs, but not both on the same input. The one VS-712EX output goes to the TV so you can watch and listen on your TV.
- Page 10 Fig. 6 - Basic Hook-up #2 Figure 6 below shows a system with 3 input sources. It shows how you can watch video on your TV, listen on your surround sound receiver and record from the sources plugged into the VS-712EX. It also illustrates using the dual outputs to record on a VCR, watch the video on the TV and listen to the sound on a surround system.
-
Page 11: Operation
Operation When AC power is first applied, all outputs will be muted and all the lights will come on for 1 second and then go out. The Power / Stand-by light will be lit dim red. The Auto Input and Volume Stabilization modes will be active as default. -
Page 12: Volume Stabilizer Active
Note: If an input goes off and back on in less than 5 seconds, the VS-712EX may not sense the input change so no input change may occur. Volume Stabilizer Active (only on analog audio – no effect on digital audio) If the Volume Stabilizer Active light is on, then the output of the audio switcher will be routed through the Volume Stabilizer circuitry. -
Page 13: How It Works
How it works This section has more technical information for the person who wants to learn more about the VS- 712EX. In the block diagram below you can see how the audio and video inputs are selected and fed to the output buffer amplifiers. -
Page 14: Automatic Input Sensing
Automatic Input Sensing When the AUTO SELECT mode is on, the VS-712EX constantly scans the video inputs, Composite, S- Video, and Component waiting for a video input. When you turn on a device (VCR, DSS, etc.) a microprocessor in the VS-712EX senses the video input, turns on the VS-712EX (when it is in the stand- by mode) and selects the input. -
Page 15: Composite To S-Video To Component Conversion
Composite to S-Video to Component Conversion The VS-712EX has special circuitry to convert the composite video inputs to the S-Video outputs and the composite/s-video signals to component video. The VS-712EX sends the original composite and the generated s-video signal to both sets of outputs and it takes the s-video signal and generates a component video signal. -
Page 16: Digital Audio Conversion
Digital Audio Conversion The VS-712EX converts the coaxial and optical digital audio inputs and sends the signal out both the coaxial and optical outputs simultaneously. This lets you connect a single digital audio cable (either optical or coaxial) between the VS-712EX and your receiver and feed the VS-712EX with both coaxial and optical inputs. -
Page 17: Advanced Information
Advanced Information DIP Switch Setting The DIP switches on the rear panel of the VS-712EX lets you control the default operation of the unit. The default position of all the switches is in the OFF or up position. RS-232 Address Ignore Front Disable IR ADCR... -
Page 18: Svs-Control Interface
SVS-CONTROL Interface The SVS-CONTROL interface on the VS-712EX lets you connect the unit to a home automation system and control the various functions of the unit. SVS-CONTROL Connection The specifications of the SVS-CONTROL port are: 9600 baud 1 start, 8 bits, no parity no handshaking DB-15, female connector Here is the pin out of the SVS-CONTROL port on the VS-712EX... -
Page 19: View Video Commands
Message Acknowledgement The VS-712EX will ignore any message that does not begin with the @ character. When the VS-712EX receives an correctly initiated RS232 message, it will respond with an acknowledgement message, followed by a block of data, as appropriate. The acknowledgement message consists of 3 bytes (a start character, an address character and a status character), The message structure is summarize in the following table: Start Address... - Page 20 Page 20...
- Page 21 RS232 Status Response The returned data format (in response to a status request) takes the following format: Message header = $*2 as per section 7.3 above (* = RS232 address). Message data = VE?RE?CS?CL?SD?SL?SS?SA?SR?SP? (where ? represents a numeric value). Note that the mnemonics are the same as for the received RS232 commands.
-
Page 22: Ir Input
IR Rear Panel Interface Valid IR Commands Function Set standby on / off (toggle) Set standby on* Set standby off* Set Auto Select mode on / off (toggle) Set Auto Select mode on* Set Auto Select mode off* Set LED brightness to next value (cyclic)* Set view / record outputs to channel 1 Set view / record outputs to channel 2 Set view / record outputs to channel 3... -
Page 23: Trouble Shooting
Trouble Shooting Problem Power/Stand-by light does not come on No video output No audio output No input is selected Picture is black and white AUTO SELECT does not detect device when turned on Unit goes to standby after 5 seconds Volume seems to vary too much between sources No front panel buttons work... - Page 24 Page 24...
-
Page 25: Technical Specifications
Technical Specifications - Design and specifications are subject to change without notice Audio Inputs, (7 stereo) Input impedance, 47 Kohms Typical input level, 300 mV Frequency response 20 to 20KHz, +/- 3db (bypass mode) Signal to Noise ratio, greater than 80 db THD less than 0.03% (bypass mode) Left to right separation, greater than 60 db Channel to channel separation, greater than 60 db... - Page 26 Size: 17” wide, 12” deep, 4” high Weight: 12 lbs Page 26...
-
Page 27: Limited Warranty
Limitation of Liability and Remedies Sima shall have no liability for any damages due to lost profits, loss of use or anticipated benefits, or other incidental, consequential, special or punitive damages arising from the use of, or the inability to use, this product, whether arising out of contract, negligence, tort or under any warranty, even if Sima has been advised of the possibility of such damages. - Page 28 NOTES Page 28...
- Page 29 Sima Products Corp. 140 Pennsylvania Ave., Bld. #5 Oakmont, PA 15139 USA 412-828-3700 800-345-7462 412-828-3775 FAX Visit us at www.simacorp.com E-mail us at custserv@simacorp.com Manual # 21680, rev A Page 29...
-
Page 30: System Organization Chart
System Organization Chart Fill in the chart below to help you organize and remember what devices are connected to the inputs and outputs. Save for future reference. Inputs From (VCR, DSS, etc.) Outputs To (TV, Receiver, etc.) View A View B Record Component Composit...
