EverMore ST-K700 User Manual

Gps receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

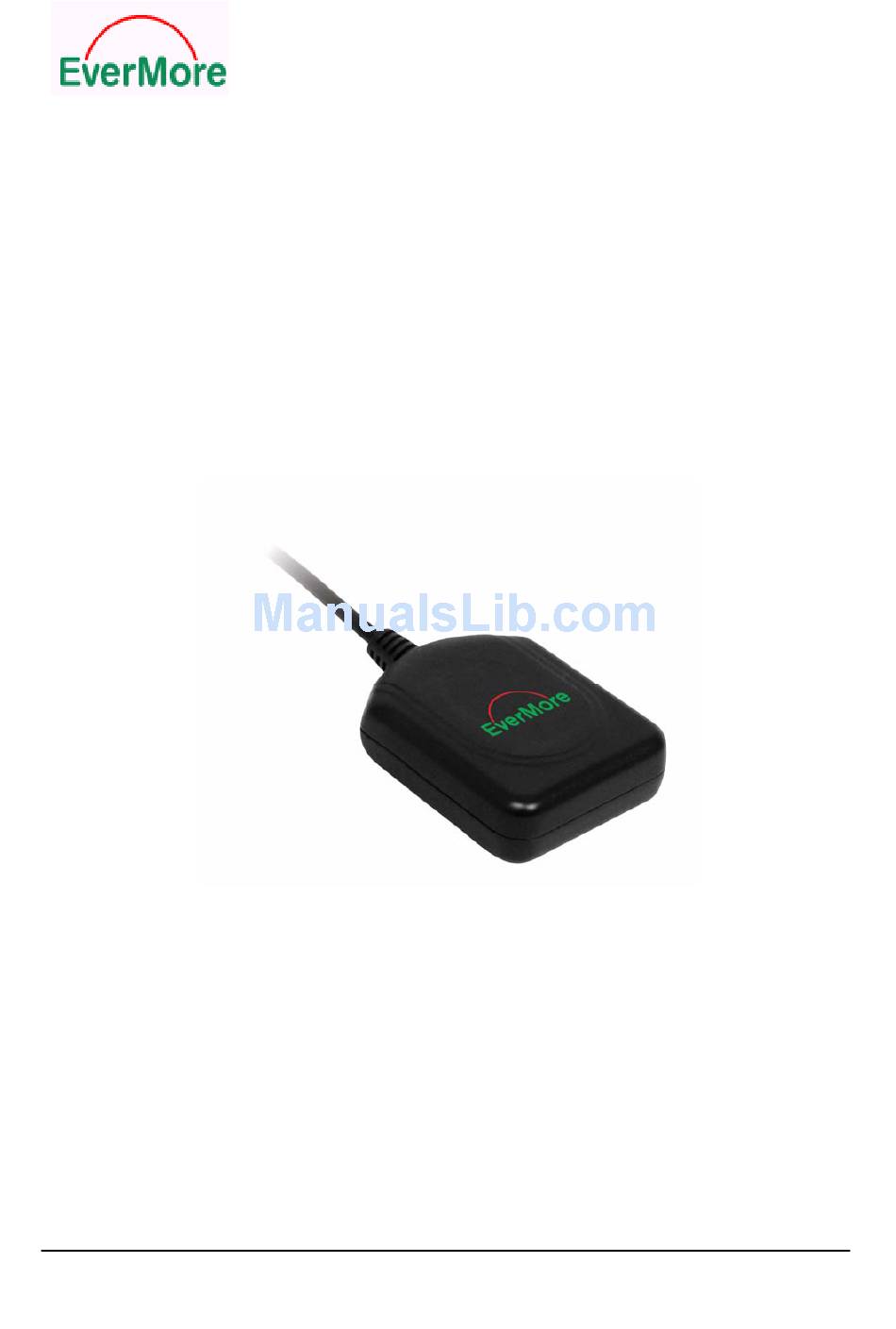

GM-R700 User's Manual
ST-K700/ GM-R700
GPS Receiver User's Manual
EverMore Technology Inc.
EverMore Technology Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-K700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EverMore ST-K700

Summary of Contents for EverMore ST-K700

  • Page 1 GM-R700 User’s Manual ST-K700/ GM-R700 GPS Receiver User’s Manual EverMore Technology Inc. EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.
  • Page 2 © EverMore Technology Inc. All rights reserved. Not to be reproduced in whole or part for any purpose without written permission of EverMore Technology Inc. Information provided by EverMore Technology Inc. is believed to be accurate and reliable. However, no responsibility is assumed by EverMore Technology Inc.

  • Page 3: Table Of Contents

    2.2 Environmental Characteristics ..................9 2.3 Physical Characteristics..................... 9 3. HARDWARE INTERFACE ................10 3.1 ST-K700 PS/2 Female Connector (standard type) ............10 3.2 ST-K700 Female PS/2 Connector Interface ..............11 3.3 ST-K700 Accessories......................12 ..............12 3.3.1 DB9 9 Pins Female and PS/2 Male Connector ......................
  • Page 4 GM-R700 User’s Manual 6. SOFTWARE SPECIFICATION ..............17 6.1 ST-K700 NMEA Protocol....................17 6.2 General NMEA Format ....................17 6.3 $GPGGA ........................... 18 6.4 $GPGLL..........................19 6.5 $GPGSA ..........................19 6.6 $GPGSV ..........................20 6.7 $GPRMC........................... 21 6.8 $GPVTG..........................21 6.9 $GPZDA..........................

  • Page 5: Introduction

    1. Introduction 1.1 Overview EverMore series GPS module ST-K700 is a high sensitivity ultra low power consumption cost efficient, compact size; plug & play GPS module board designed for a broad spectrum of OEM system applications. This product is based on the proven technology found in 16 channel GPS receivers and NEMERIX chipset solution.

  • Page 6: Features

    Compact board Size ST-K700 51mm x 42.5mm x 17.3mm (2.01”x1.67”x0.68”) for easy integration into hand-held device. 1.3 Applications ST-K700 engine board receiver is a high performance, ultra low power consumption, plug &play product. These applications are as follow. Car navigation system for portable device and car device...

  • Page 7: Start-Up Modes

    Reacquisition This is very common in urban areas, but please be noted that reacquisition time has nothing to do with the time-to-first-fix (TTFF). EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 8: Technical Specifications

    2.1.6 Dynamic Conditions Altitude 18,000 meters max Horizontal Velocity 300 kilometers/hour max Vertical Velocity 36 kilometers/hour max Acceleration 2g, max Jerk 4 meters/second , max EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 9: Environmental Characteristics

    -50 ℃ to +90 ℃ Storage temperature range 2.3 Physical Characteristics Dimension: 51mm x 42.5mm x 17.3mm (2.01”x1.67”x0.68”) Weight: 78g (2.75oz) Interface connector: PS/2 female connector EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 10: Hardware Interface

    GM-R700 User’s Manual 3. Hardware Interface 3.1 ST-K700 PS/2 Female Connector (standard type) PS/2 female connector (standard type) ST-K700 Real Picture PS/2 Female Connector Pin Assignment Function Input/Output Level Power Supply Input 12V, RS232 Input 3.3V, LVTTL Output 3.3V, LVTTL...

  • Page 11: St-K700 Female Ps/2 Connector Interface

    GM-R700 User’s Manual 3.2 ST-K700 Female PS/2 Connector Interface Extension Male PS/2 Connector ST-K700 USB, Link to PC or Notebook Extension Male PS/2 Connector RS232, Link to PC or Notebook Standard Female PS/2 Connector Male PS/2 ST-K700 Link to Host Device Diagram...

  • Page 12: St-K700 Accessories

    GM-R700 User’s Manual 3.3 ST-K700 Accessories 3.3.1 DB9 9 Pins Female and PS/2 Male Connector DB9 Connector (Female) Function Input/Output Level Output RS232 Input RS232 Ground RS232 PS/2 (Male) (Female) Connector Pin Assignment PS/2 Connector (Male) Function Function Function EverMore Technology Inc.

  • Page 13: Usb Connector

    GM-R700 User’s Manual 3.3.2 USB Connector Function Color VCC, 5V White Green Black GND D+ D- VCC USB Connector Pin 1 Connector Pin Assignment EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 14: St-K700 Dimensions

    Length 51 Unit: mm Diamete Wide 42.5 41.25 Top View 17.3 Height Lateral View 3.5 ST-K700 Appearance Diagram GPS Receiver Patch Length: 2M PS/2 (Female) ST-K700 EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 15: St-K700 Usb Driver Installation

    GM-R700 User’s Manual 4 ST-K700 USB Driver Installation Following is the brief indication of USB driver installation. We enclose a CD for detailed USB driver installation “GPS USB Driver Setup.pdf ” with products. Step 1: Copy entire USB driver folder from CD to hard disk Step 2: Double click the “...

  • Page 16: Operation And Test

    The software and manual are available for download from website. Below list ST-K700 software tools For example double click 700_SeriesGPSTest.exe to test ST-K700 EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 17: Software Specification

    GM-R700 User’s Manual 6. Software Specification 6.1 ST-K700 NMEA Protocol The ST-K700 software is capable of supporting the following NMEA message formats NMEA Message Format Direction Prefix $GPGGA(1)* GPS fix data. $GPGLL Geographic position Latitude / Longitude. $GPGSA(3)* GNSS DOP and actives satellites $GPGSV(3)* Satellites in view.

  • Page 18: Gpgga

    Age in seconds Blank (Null) fields when DGPS Differential is not used. Corrections Diff 0000. Reference Corrections Checksum (0) 3 2 digits. Message <CR> <LF> ASCII 13, ASCII 10. terminator EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 19: Gpgll

    SV on channel 2. … Satellites Used SV on channel 12. PDOP Float HDOP Float VDOP Float Checksum 2 digits Message <CR> <LF> ASCII 13, ASCII 10 terminator EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 20: Gpgsv

    Signal to noise ration in dBHz, null if the sv is not in tracking. Checksum (0) 3 2 digits. Message <CR> <LF> ASCII 13, ASCII 10. terminator EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 21: Gprmc

    Speed Float Speed units Char K = Km/h. Mode Char A Autonomous Checksum (0) 3 2 digits. Message <CR> ASCII 13, ASCII 10. terminator <LF> EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 22: Gpzda

    <LF> 7. Limited Warranty The ST-K700 is warranted to be free from defects in material and functions for one year from the date of purchase. Any failure of this product within this period under normal conditions will be replaced at no charge to the customers EverMore Technology Inc.

  • Page 23: Ordering Information

    3.3V, LVTTL Output 3.3V, LVTTL Output 12V, RS232 3 RX 1 VCC PS/2 (Female) 2 GND at the ST-K700 4 RXD Female PS/2 Connectors Pin Assignment EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 24: Optional Types Cable

    RS232 Output RS232 Output 3.3V, LVTTL 3 NC 5 TX 1 GND PS/2 (Male) 2 VCC 4 RX 6 NC Male PS/2 Connectors Pin Assignment EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 25: Sp6P Cable

    White Input 12V, RS232 Black 0V, Ground Green Output 12V, RS232 Blue Input 3.3V, LVTTL Super Mini Din (Female) at the ST-K700 Connectors Pin Assignment EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 26: Rs-232 Cable (Db9 9 Pins Female + Ps/2 Male)

    For all kind definition DB9 Connector (Female) Function Input/Output Level Output RS232 Input RS232 Ground RS232 PS/2 (Male) (Female) Connector Pin Assignment PS/2 Connector (Male) Function Function Function EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 27: Usb Cable (With Usb Bridge Controller Ic)

    8.2.4 USB Cable (With USB Bridge Controller IC) Function Color VCC, 5V White Green Black GND D+ D- VCC USB Connector Pin 1 Connector Pin Assignment EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 28: Car Charger List

    Car charger for Dell Axim X50V/X50 Car charger for ASUS A716 / A730 / A730W / P505 Car charger for Palm T5 / Treo 650/Tungsten E2 EverMore Technology Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.

  • Page 29: Series Products Information

    GM-R700 User’s Manual 9. Series Products Information 300 Series for Evermore BBP1202 Chipset: 1: GM-307 (USB G-Mouse) 500 Series for Evermore BBP1202 Chipset: 1: GM-M500 (G-Mouse Module) 2: BT-R500 (Bluetooth GPS) 3: GM-R500 (G-MOUSE) 4: CF-R500 (CF Card GPS) 5: GM-R500-DL...
