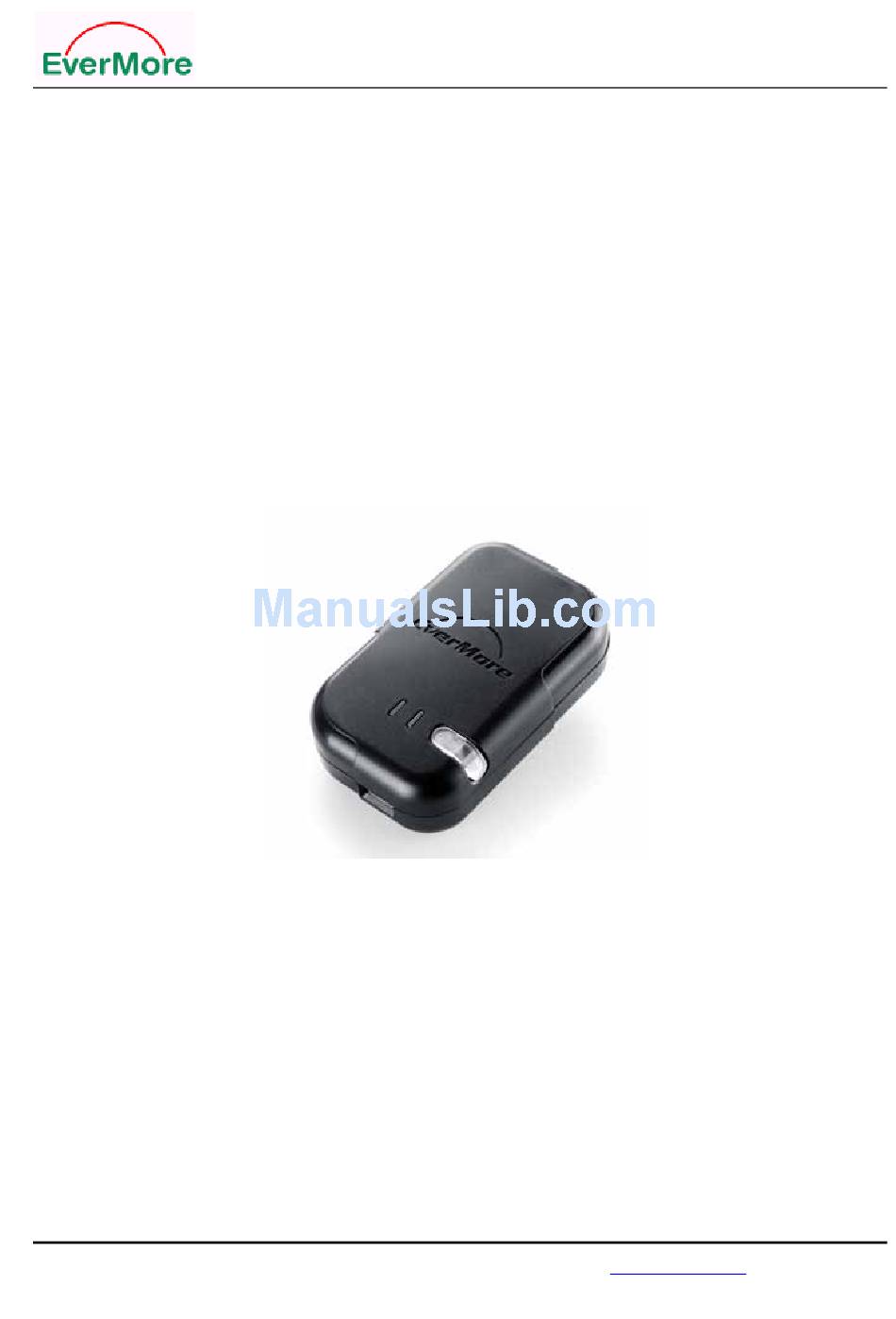

Page 1: Bluetooth Gps Receiver
BT-R900 User’s Manual BT-R900 Bluetooth GPS Receiver User’s Manual Date: April 2006 Version: 2.1 All Rights Reserved EverMore Technology, Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw Page 1... - Page 2 © EverMore Technology Inc. All rights reserved. Not to be reproduced in whole or part for any purpose without written permission of EverMore Technology Inc. Information provided by EverMore Technology Inc. is believed to be accurate and reliable. However, no responsibility is assumed by EverMore Technology Inc.
-
Page 3: Table Of Contents
BT-R900 User’s Manual TABLE OF CONTENTS 0. Quick Installation..........................4 1. Introduction............................5 1.1 Overview.............................5 1.2 Main Features..........................5 1.3 Possible Applications ........................5 1.4 Package ............................6 2. Hardware Interface..........................7 2.1 LED Status ..........................7 2.2 Power Jack ..........................7 3 . Installation............................8 3.1 Wireless connection ........................8 3.2 Wireless GPS device for Notebook...................13... -
Page 4: Quick Installation
0. Quick Installation Have the battery full charged. Before using the battery, please put it in BT-R900 and have it recharged for 4 hours. 2. Turn on your PDA. Execute the Wireless function. If your PDA has no built-in Wireless function, you need an optional CF or SD Wireless card and activate the Wireless function. -
Page 5: Introduction
Based on the Sirf starIII high performance chipset The BT-R900 is well suited to system integration and users who use PDA , Smart phone, Tablet PC and Notebook PC with Wireless devices. It satisfies a wide variety of applications. -
Page 6: Package
1.4 Package Before you start up, make sure that your package includes the following Items. If any items are missing or damaged, contact your dealer immediately. BT-R900 Bluetooth GPS Receiver CD with the User’s Manual A USB charging cable Battery (3.7V/1050mAh lithium-ion rechargeable) DC Car Charger EverMore Technology, Inc. -
Page 7: Hardware Interface
1. Power On/Off switch 2. Low Battery LED 3. Charger LED Power Jack How to turn on the BT-R900: Continued press power button 3 seconds. How to turn off the BT-R900: Continued press power button 3 seconds or automatic turn off. -
Page 8: Installation
BT-R900 User’s Manual 3 . Installation 3.1 Wireless connection Insert the rechargeable battery into the battery compartment. <1> Power button <1.1> Push Wireless “power on”, Wireless LED will be lighted for searching the Wireless device. <2> On the PDA, make sure the Wireless device is available. - Page 9 BT-R900 User’s Manual <3> Open “Wireless Manager “ in the PDA <3.1> Click the Wireless icon and select Wireless manager. Select <3.2> Click “new” to connect device EverMore Technology, Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.
- Page 10 <4.1> Click “check Wireless device “ and then click “next” Step 1 Step 2 <5> Click “Device” to connect with Wireless Product < 5.1 > Click “device” and find BT-R900 Select EverMore Technology, Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.
- Page 11 BT-R900 User’s Manual <5.2> Click “BT-R900 “to setup the device. <6> Connect to SPP slave <6.1> Click “SPP slave “and then click “next” EverMore Technology, Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw Page 11...
- Page 12 <7>Connect PDA and GPS Device <7.1 > Press “BT GPS” icon until pop up the new window <7.2 > Click “connect” to access BT-R900 Wireless GPS device EverMore Technology, Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C.
-
Page 13: Wireless Gps Device For Notebook
BT-R900 User’s Manual 3.2 Wireless GPS device for Notebook. 1. Turn the BT-R900 power on 2. Check the COM port number used by Wireless Device. (Example: COM 6). 3. Run navigation software and set the right COM port and 4800 Baud Rate. -
Page 14: Technical Specification
BT-R900 User’s Manual 4. Technical Specification GPS Specification Features Description General L1 1575.42MHz, C/A code, 20-channel all in view tracking -159 dBm Sensitivity Position: <15m(95%) without S/A Accuracy Velocity: 0.1 m/sec without S/A ± 100ns synchronized to GPS time Time:... - Page 15 BT-R900 User’s Manual Power Specifications Features Description Battery Lithium-ion Rechargeable Battery 3.7V/1050mAh Operation Current 100 mA (Typical) Operation Time 10 hrs, after fully charged, in continuous 4 hrs. (Typical) Charging time Interface Specification Features Description Interface Wireless™ version 1.1 compliant (SPP slave)
-
Page 16: Limited Warranty
BT-R900 User’s Manual 5 . Limited Warranty The BT-R900 is warranted to be free from defects in material and functions for one year from the date of purchase. Any failure of this product within this period under normal conditions will be replaced at no charge to the customers 6. -
Page 17: Series Products Information
BT-R900 User’s Manual 7. Series Products Information 300 Series for EverMore BBP1202 Chipset: 1: GM-307 (USB G-Mouse) 500 Series for EverMore BBP1202 Chipset: 1: BT-R500 (Wireless GPS) 2: GM-R500 (G-MOUSE) 3: CF-R500 (CF Card GPS) 4: CM-M500 (GPS Module) 5: DL-200... -
Page 18: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
