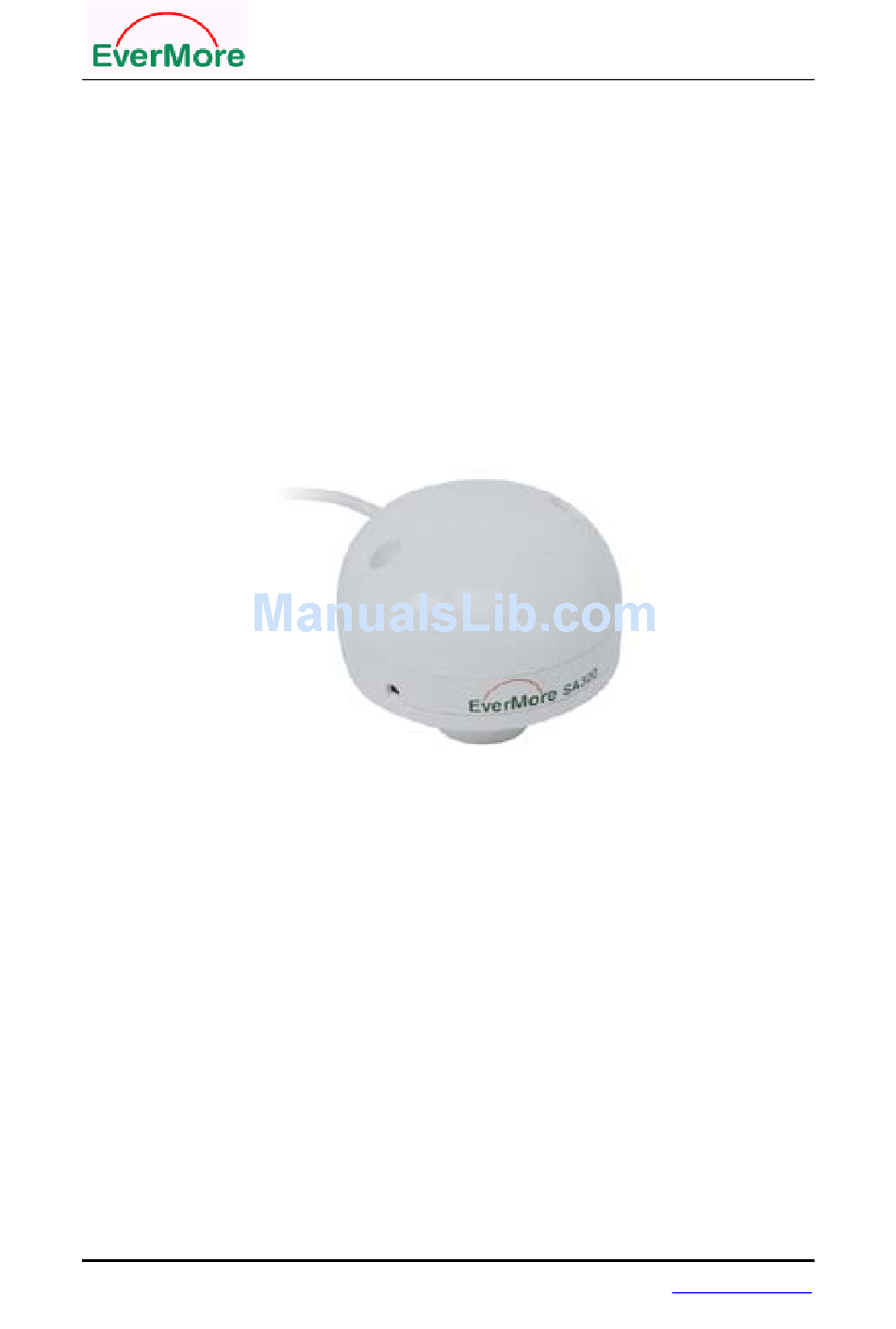

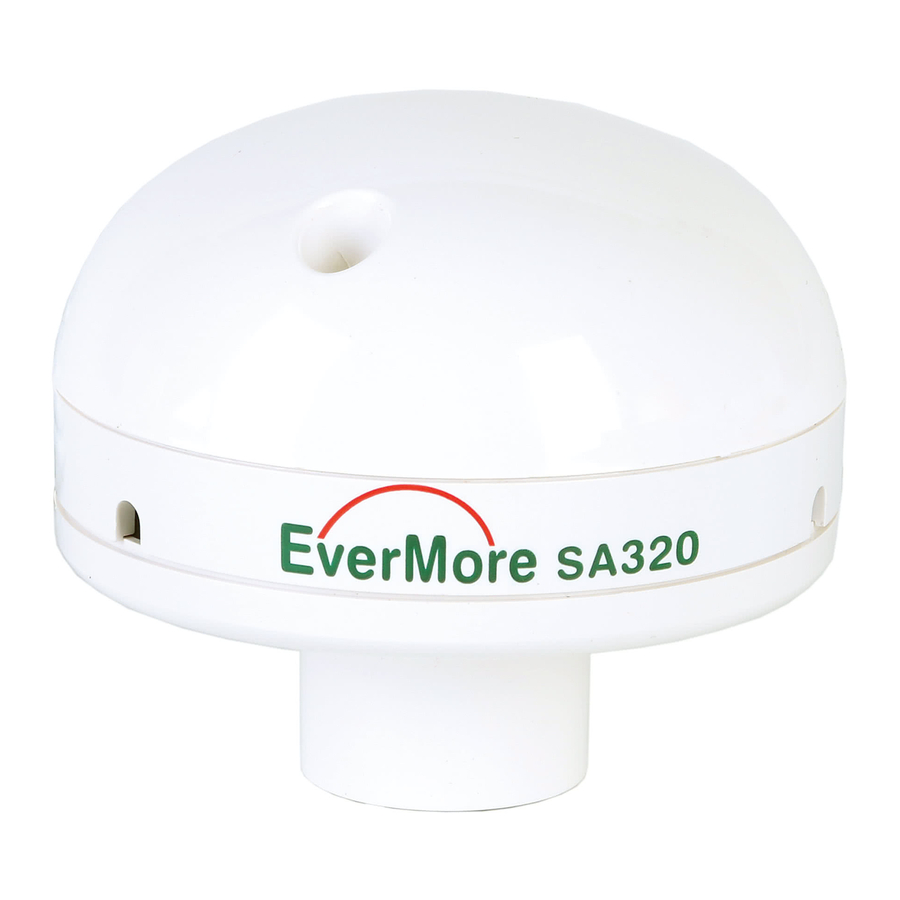

- Page 1 SA-320 Installation Guide SA-320 Installation Guide Date: Oct, 2007 Version: 2.4 All Rights Reserved EverMore Technology, Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw Page 1...
-
Page 2: Table Of Contents
SA-320 Installation Guide TABLE OF CONTENTS 1. Product Overview...………….……………………………………………..3 1.1 Main Features.................3 1.2 Applications…...………………………………………………………..3 1.3 Package Content…..…………………………………………………...3 2. Installation……………………………………………………………………4 2.1 Mounting methods……………………………………………….…….4 2.2 USB Connect Definition……………………………………...……….5 2.3 Naked Wire Definition.………………………………………...………6 3. Technical Specification..………………………………...………..………8 4. Limited Warranty...….………………………………………………….…..10 5. Appendix..……………………………………………………………..….10 EverMore Technology, Inc. -
Page 3: Product Overview
SA-320 Installation Guide 1. Product Overview 1.1 Main Features Built-in patch antenna 12 parallel tracking channels Fast TTFF and low power consumption On-board rechargeable battery sustained Real-Time Clock and control parameters memory for fast satellite acquisition during power-up Interference filter to major VHF channels of marine radar... -
Page 4: Package Content
1.3 Package Content When open the package, please check it includes the following items. Contact your dealer immediately if any item is missing or damaged. Installation Guide SA-320 GPS Receiver with Cable Thread Adaptor Screw Pairs Mounting-Hole-Drill Alignment Mask CD Manual EverMore Technology, Inc. -
Page 5: Installation
2.1.1 To mount the SA-320, with Thread Adaptor, on a standard cable pole. 2.1.2 To screw the SA-320 on the surface of the plate. 2.1.3 To screw the SA-320 on the surface of a plate from the other side. EverMore Technology, Inc. -
Page 6: Usb Connector Definition
SA-320 Installation Guide 2.2 USB Connector Definition Function Color VCC, 5V White Green Black GND D+ D- VCC USB Connector Pin 1 Connector Pin Assignment EverMore Technology, Inc. 2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. -
Page 7: Naked Wire Definition
SA-320 Installation Guide 2.3 Naked Wires Pin Definition 2.3.1 Naked Wires Definition ( RS-232 ) Wire Color Designation VCC, Power Supply ( VDC 5V) Green RS-232 Transmit Tx, Output Signal White RS-232 Receiver Rx, Input Signal Ground Black EverMore Technology, Inc. -
Page 8: Technical Specification
SA-320 Installation Guide 3. Technical Specification Performance Specification Features Description General L1 1575.42MHz, C/A code, 12-channel, Carrier-Aided with HWTrack© Sensitivity -143 dBm minimum Update Rate Accuracy Position: 15m CEP without S/A Velocity: 0.1m/sec without S/A ± 100ns synchronized to UTC time... - Page 9 SA-320 Installation Guide Protocol Features Description Protocols NMEA-0183 V2.2 at 4800 baud rate , 8-None-1 NMEA messages Default : GGA, RMC, GSA, GSV Optional : GLL, VTG Interface Specification Features Description Interface USB or RS-232 Power Input VDC +5V ( USB ) or VDC 5V (RS-232 ) Preliminary Specification, Subject To Change without Notice EverMore Technology, Inc.
-
Page 10: Limited Warranty
SA-320 Installation Guide 4. Limited Warranty The SA-320 GPS receiver is warranted to be defect free in material designed to use and production for one year from the date of purchase. Under normal operation conditions, any failure of this product caused by material/production within the warranted period, it would be replaced with no charge.
