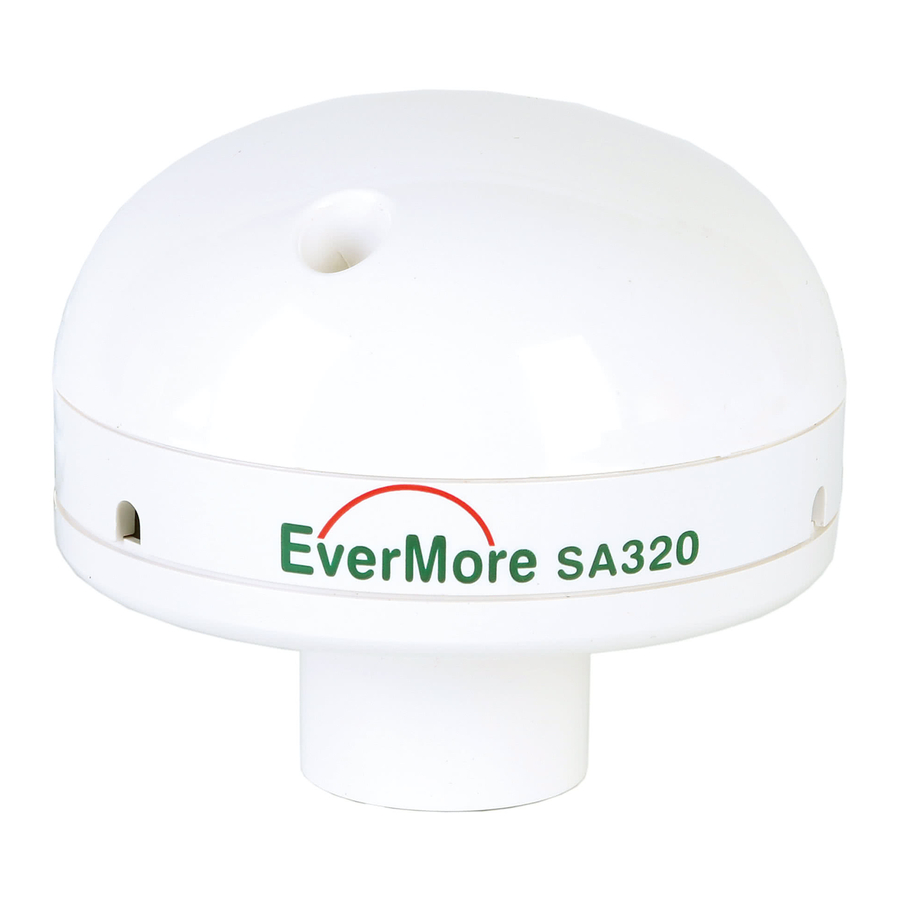

SA-320 Installation Guide
SA-320
Installation Guide
Date: Oct, 2007
Version: 2.4
All Rights Reserved

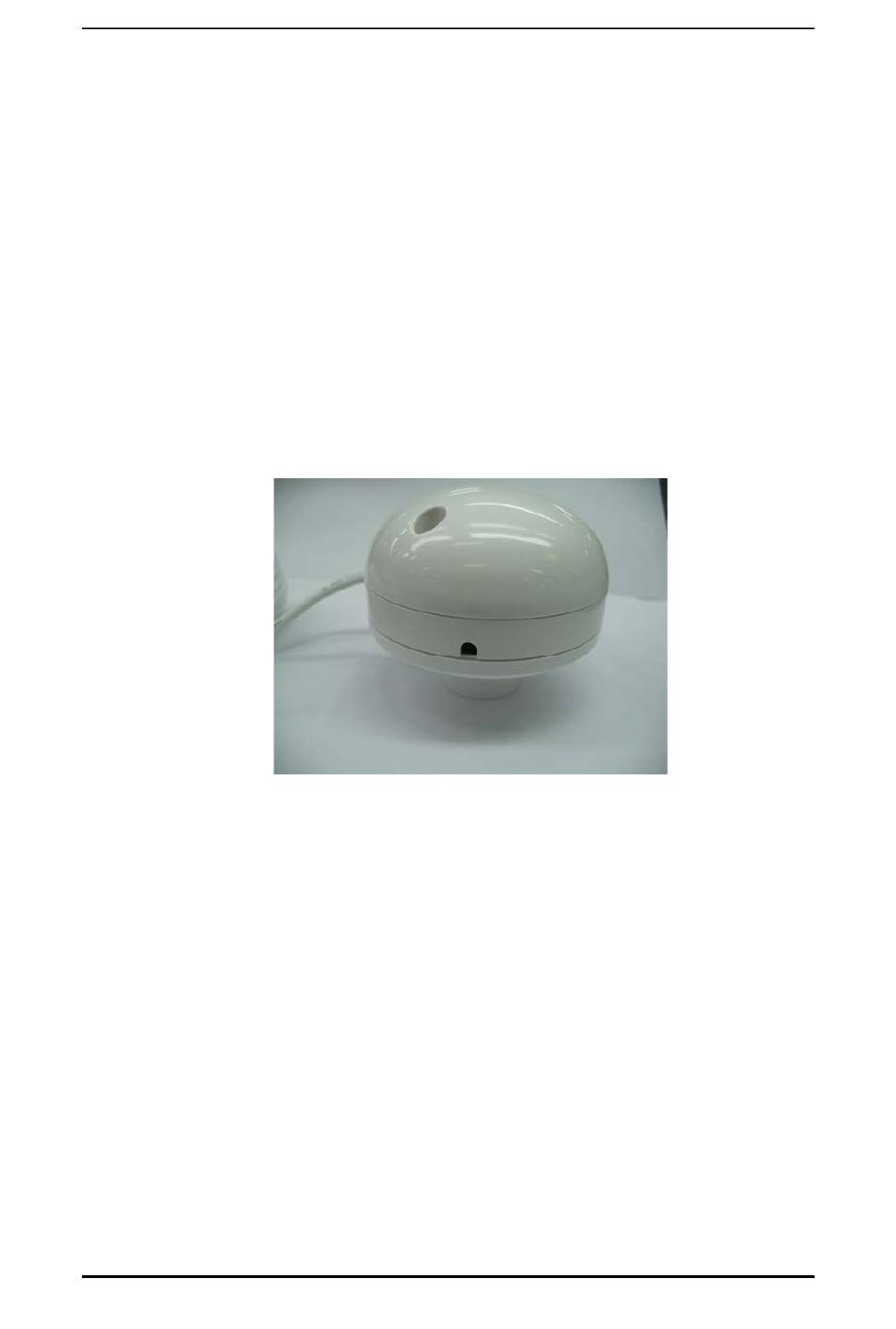

Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EverMore SA-320

Summary of Contents for EverMore SA-320

  • Page 1 SA-320 Installation Guide SA-320 Installation Guide Date: Oct, 2007 Version: 2.4 All Rights Reserved Page 1...

  • Page 2: Table Of Contents

    SA-320 Installation Guide TABLE OF CONTENTS 1. Product Overview...………….……………………………………………..3 1.1 Main Features.................3 1.2 Applications…...………………………………………………………..3 1.3 Package Content…..…………………………………………………...3 2. Installation……………………………………………………………………4 2.1 Mounting methods……………………………………………….…….4 2.2 USB Connect Definition……………………………………...……….5 2.3 Naked Wire Definition.………………………………………...………6 2.4 Circular Connector Definition………………………………………..8 2.5 NMEA Connector Definition………………………...………………..9 2.6 DB_9 ( Female ) Connector Pin Definition……………………...…10 3.

  • Page 3: Product Overview

    1.3 Package Content When open the package, please check it includes the following items. Contact your dealer immediately if any item is missing or damaged. Installation Guide SA-320 GPS Receiver with Cable Thread Adaptor Screw Pairs Mounting-Hole-Drill Alignment Mask CD Manual...

  • Page 4: Installation

    2.1.1 To mount the SA-320, with Thread Adaptor, on a standard cable pole. 2.1.2 To screw the SA-320 on the surface of the plate. 2.1.3 To screw the SA-320 on the surface of a plate from the other side. Page 4...

  • Page 5: Usb Connect Definition

    SA-320 Installation Guide 2.2 USB Connector Definition Function Color VCC, 5V White Green Black GND D+ D- VCC USB Connector Pin 1 Connector Pin Assignment Page 5...

  • Page 6: Naked Wire Definition

    SA-320 Installation Guide 2.3 Naked Wires Pin Definition 2.3.1 Naked Wires Definition ( RS-232 ) Wire Color Designation Violet VCC, Power Supply ( VDC 9V-34V) Brown RS-232 Transmit Tx, Output Signal Green Blue White RS-232 Receiver Rx, Input Signal Ground...
  • Page 7 SA-320 Installation Guide 2.3.2 Naked Wires Definition ( RS-422 ) Wire Color Designation Violet VCC, Power Supply ( VDC 9V-34V) Brown RS-422 Transmit Tx - , Output Signal RS-422 Transmit Tx+, Output Signal Green Blue RS-422 Receiver Rx -, Input Signal...

  • Page 8: Circular Connector Definition

    SA-320 Installation Guide 2.4 Circular Connector ( Male ) For GEONAV Function Input/Output Level No Connect Output RS-232 Ground No Connect Input RS-232 Ground Power Supply VDC 9-34V Connectors Pin Assignment Page 8...

  • Page 9: Nmea Connector Definition

    SA-320 Installation Guide 2.5 NMEA Connector Pin Definition (RS-232 ) For HUMMINBIRD Pin Number Designation VCC, Power Supply + ( VDC 9V-34 V ) PGND, Power Ground RS-232 Transmit Tx, Output Signal RS-232 Receiver Rx, Input Signal 2.5.1 Naked Wire Pin Definition...

  • Page 10: Db_9 ( Female ) Connector Pin Definition

    SA-320 Installation Guide 2.6 DB_9 ( Female ) Connector Pin Definition ( RS-232 ) with Power Supply Pin Number Designation RS-232 Transmit Tx, Output Signal RS-232 Receiver Rx, Input Signal PGND, Power Ground VCC, Power Supply + ( VDC 9V-34 V )

  • Page 11: Technical Specification

    SA-320 Installation Guide 3. Technical Specification Performance Specification Features Description General L1 1575.42MHz, C/A code, 12-channel, Carrier-Aided with HWTrack© Sensitivity -143 dBm minimum Update Rate Position: 15m CEP without S/A Accuracy Velocity: 0.1m/sec without S/A ± 100ns synchronized to UTC time...
  • Page 12 SA-320 Installation Guide Protocol Features Description Protocols NMEA-0183 V2.2 at 4800 baud rate , 8-None-1 NMEA messages Default : GGA, RMC, GSA, GSV Optional : GLL, VTG Interface Specification Features Description Interface USB or RS-232 or RS-422 Power Input VDC +5V ( USB ) or VDC 9V-34V (RS-232/RS-422 ,...

  • Page 13: Limited Warranty

    SA-320 Installation Guide 4. Limited Warranty The SA-320 GPS receiver is warranted to be defect free in material designed to use and production for one year from the date of purchase. Under normal operation conditions, any failure of this product caused by material/production within the warranted period, it would be replaced with no charge.
