Terratek T12VRHD User Manual

Terratek T12VRHD User Manual

12v li-ion sds rotary hammer drill

Advertisement

Quick Links

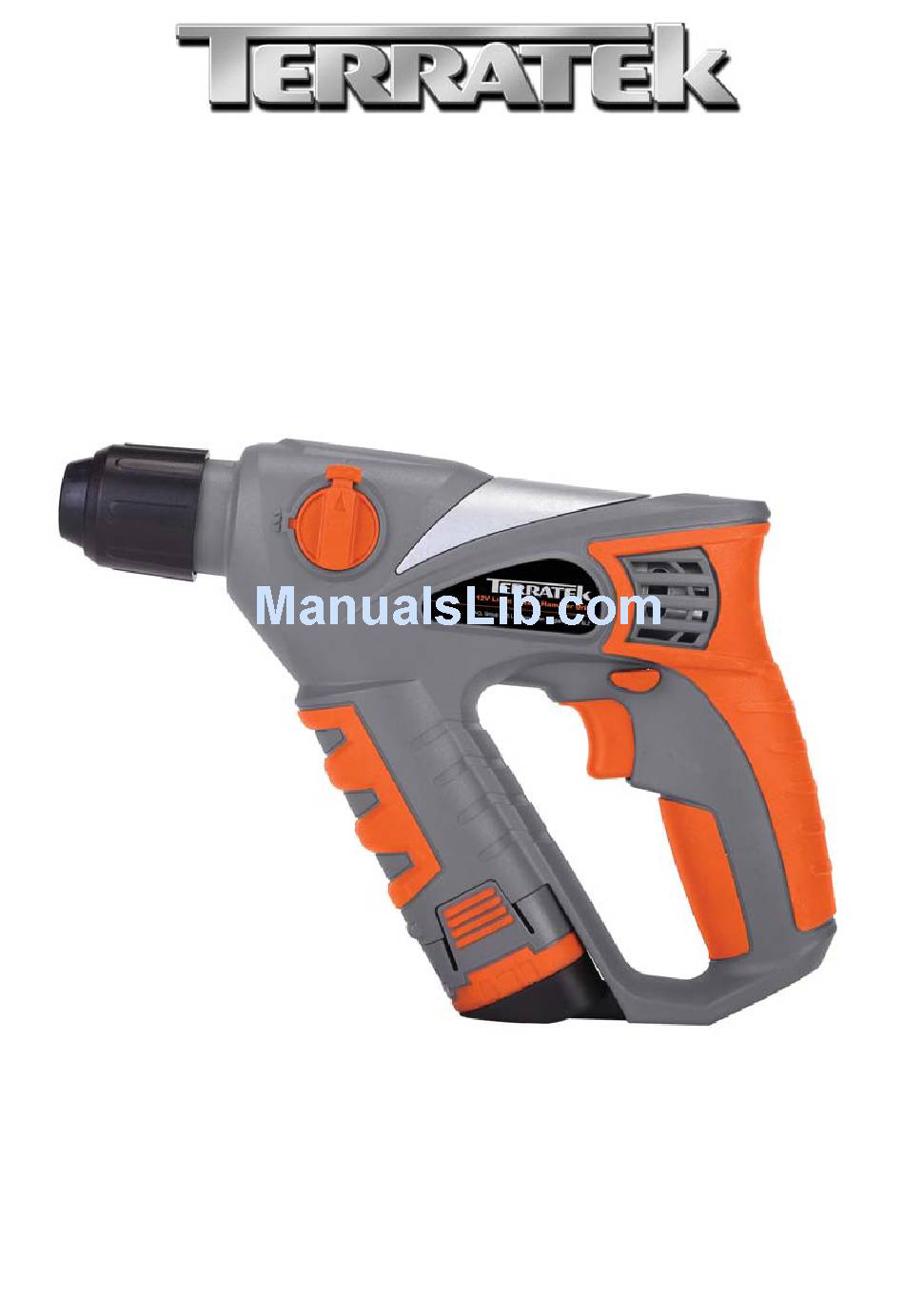

12V Li-ion SDS Rotary Hammer Drill
T12VRHD
T12VRHD
User Manual — Please read and retain for future reference.
IMPORTANT: Read all instructions before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T12VRHD and is the answer not in the manual?

Questions and answers

Summary of Contents for Terratek T12VRHD

  • Page 1 12V Li-ion SDS Rotary Hammer Drill T12VRHD T12VRHD User Manual — Please read and retain for future reference. IMPORTANT: Read all instructions before use.
  • Page 2: Technical Information

    Contents Parts List Technical Information Safety Instructions Using your tool Maintenance Warranty Parts List Description Description Seal Packing collar Driving lever Rocking bearing Shaft Screw ST3.5 x10 Needle bearing Stop Rubber pad Left top plastic housing Shaft Seal Packing collar Plastic shortcut cover Knob Shaft...
  • Page 3 Exploded Assembly Diagram NOTICE: Actual product may vary from pictures shown.
  • Page 4 fig.1 1. Hammer/Drill Switch 2. SDS Chuck 3. Trigger Switch 4. Forward/Reverse Switch 5. Battery Pack Battery capacity indicator LED 6. Charger 7. Indicator for right rotation 8. Indicator for left rotation Tabs Charge indicator fig.2...
  • Page 5 Fig.3 Fig.4 Drill mode Hammer mode Fig.5 Fig.6...
  • Page 6 Technical Information Model: T12VRHD Rated Voltage: 12V DC No-load Speed: 0- 750/min Impact rate: 0– 4300/min Drill capacity: Wood 10 mm; Steel 8 mm. Battery Type: 1300 mAh Li-ion Charger Charging time: 1 hour Input: 100-240V AC, 50 – 60 Hz, 27W Output: 12.6V DC, 1500mA Max...
  • Page 7: Important Safety Information

    Read and Keep This Manual Please read carefully all instructions within this manual. Failure to follow all safety warnings can result in serious personal injury. The term “Power Tool” in all of the following warnings refers to your mains operated (corded) or battery operated (cordless) power tool. Important SAFETY Information This symbol is to warn you of potential personal injury hazards.
  • Page 8: Electrical Safety

    Electrical safety Before use, ensure that the power outlet you are using matches the plug on your power tool and that the voltage of the outlet matches that of your power tool. Only use grounded extension cords with power tools fitted with 3 pin plugs and if using outdoors ensure any extension cord is suitable for outdoor use.
  • Page 9: General Safety Instructions

    Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Develop a periodic maintenance schedule for your tool. When cleaning a tool be careful not to disassemble any portion of the tool since internal wires may be misplaced or pinched or safety guard return springs may be improperly mounted.
  • Page 10 9. USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.
  • Page 11 26. NEVER LEAVE TOOL RUNNING UNATTENDED. Turn power off. Don’t leave tool until it comes to a complete stop. 27. Double Insulation eliminates the need for the three wire grounded power cord and grounded power supply system. This power tool is supplied with all the relevant safety guards and features, it should be checked before every operation, this manual should be read and kept in a safe place.
  • Page 12 Switch off the power tool immediately if the tool insert jams. Be prepared for high reaction torque that can cause kickback. The tool insert jams when the power tool is subject to overload or it becomes wedged in the workpiece. Hold power tool by the insulated gripping surfaces, when performing an operation where the cutting tool may run into hidden wiring.
  • Page 13 Symbols IMPORTANT: Some of the following symbols may be used on your tool. V…………………………volts A…………………………amperes Hz……………………….hertz ~…………………….….alternating current …/m………………..revolutions per minute .....class II construction (double insulated) Kg………………………..kilograms ………………………..No load speed ……………….…..Conforms to European Harmonised New Approach Directives. DC ………………..…….Direct Current Battery use and care A battery operated tool with integral batteries or a separate battery pack must be recharged only with the specified charger for the battery.
  • Page 14 Overload Protection The power cutter is fitted with an overload/overheat protection device. When the tool is forced to work at an excessive load, the protection device will be activated automatically to disconnect the power supply. If this occurs, switch off the tool and switch on again to resume the work, make sure to apply only suitable workload to the tool.
  • Page 15: Specific Safety Rules

    ADDITIONAL PRECAUTIONS FOR CHARGER & BATTERY PACK 1. Do not charge battery pack when temperature is below 10°C (50°F) or above 40°C (104°F). 2. Do not attempt to use a step-up transformer, an engine generator or DC power receptacle. 3. Do not allow anything to cover or clog the charger vents. 4.
  • Page 16: Package Contents

    7) Do not strain the tool by holding the speed control trigger halfway so that the motor stops. 8) Be careful not to get dust inside the chuck. 9) Do not touch the rotating parts to avoid injury. 10) Do not use the tool continuously for a long period of time. Stop using the tool from time to time to avoid overheating of the motor.
  • Page 17 Switching on and off (Fig.1) Ensure that the tool is in good condition. The trigger switch of this tool features variable speed control. Slowly depress the trigger switch (Fig.1-3), the tool will be turned on and runs from slow to fast. The tool reaches its full speed when the trigger switch is fully depressed.
  • Page 18 Setting the Speed/Impact Rate The speed/impact rate of the switched on power tool can be variably adjusted, depending on how far the trigger switch (Fig.1-3) is pressed. Light pressure on the trigger switch results in low speed/impact rate. More pressure on the switch increases the speed/impact rate.
  • Page 19: Metal Drilling

    Screw Driving 1. Clamp your work piece. 2. Drill pilot holes for larger screws or when driving screws into hardwoods. 3. Exert enough pressure to start the screw and keep it turning. Do not force the screw. Let the tool do the work. 4.
  • Page 20: Disposal Of The Exhausted Battery

    Disposal of the exhausted battery WARNING: Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream.
  • Page 21: General Maintenance

    Accessories CAUTION: Use only accessories or attachments recommended for use with your Terratek tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
  • Page 22: Environmental Protection

    2011/65/EU Mr. Alan Garnett, UK QA Manager Environmental Protection RECYCLING: WASTE ELECTRICAL PRODUCTS SHOULD NOT BE DISPOSED OF WITH HOUSEHOLD WASTE. PLEASE RECYCLE WHERE FACILITIES EXIST. CHECK WITH YOUR LOCAL AUTHORITY OR RETAILER FOR RECYCLING ADVICE.
  • Page 23 Please read the following carefully ACL Group (Intl) Ltd. and/or it’s distributor has provided the parts list and assembly diagram as a reference tool only. Neither ACL Group (Intl). Ltd. or its distributor makes any representation or warranty of any kind to the buyer that he or she is qualified to do any repairs or replace any parts of this product.
