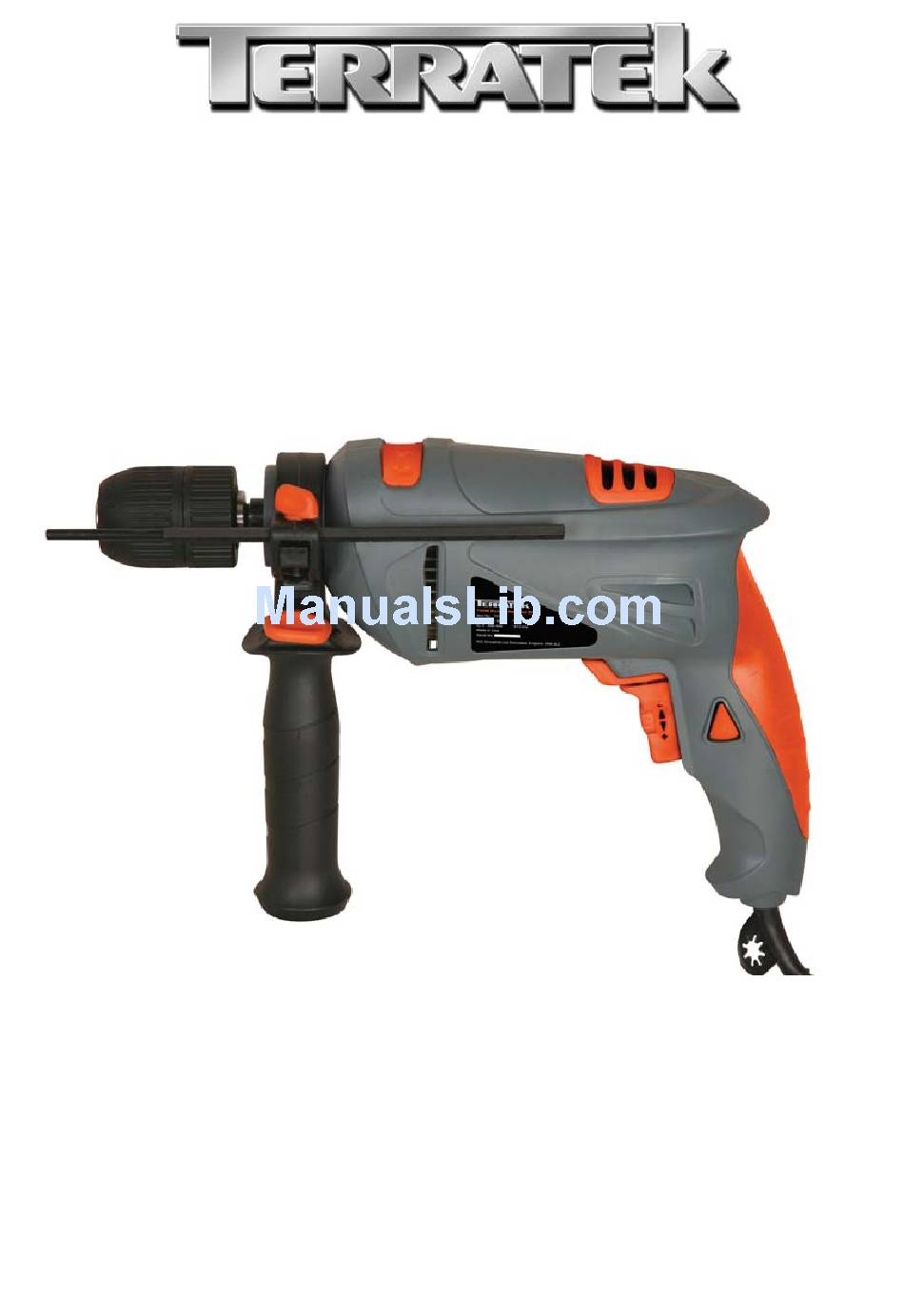

- Page 1 Electric Hammer Dril TTID750 User Manual — Please read and retain for future reference. IMPORTANT: Read all instructions before use.
-
Page 2: Parts List
Contents Parts List Technical Information Safety Instructions Using your drill Maintenance Warranty Parts List... - Page 3 Exploded Assembly Diagram NOTICE: Actual product may vary from pictures shown.
- Page 4 Fig.1 1. Drill chuck 2. Drill depth stop 3. Drill/hammer drill selector switch 4. Locking button 5. ON/OFF switch 6. Speed controller 7. Forward/Reverse switch 8. Additional handle...
-
Page 5: Technical Information
Fig.2 Fig.3 Technical Information Model: TTID750 Power input: 750 W Idling speed: 0-2,900 /min Drilling capacity Concrete: Ø 13 mm Steel: Ø 10 mm Wood: Ø 16 mm Protection class: Weight: 2.2 kg Sound and vibration Sound and vibration values were measured in accordance with EN 60745. -
Page 6: Important Safety Information
Read and Keep This Manual Please read carefully all instructions within this manual. Failure to follow all safety warnings can result in serious personal injury. The term “Power Tool” in all of the following warnings refers to your mains operated (corded) or battery operated (cordless) power tool. Important SAFETY Information This symbol is to warn you of potential personal injury hazards. -
Page 7: Electrical Safety
Electrical safety Before use, ensure that the power outlet you are using matches the plug on your power tool and that the voltage of the outlet matches that of your power tool. Only use grounded extension cords with power tools fitted with 3 pin plugs and if using outdoors ensure any extension cord is suitable for outdoor use. -
Page 8: General Safety Instructions
Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Develop a periodic maintenance schedule for your tool. When cleaning a tool be careful not to disassemble any portion of the tool since internal wires may be misplaced or pinched or safety guard return springs may be improperly mounted. - Page 9 9. USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.
- Page 10 26. NEVER LEAVE TOOL RUNNING UNATTENDED. Turn power off. Don’t leave tool until it comes to a complete stop. 27. Double Insulation eliminates the need for the three wire grounded power cord and grounded power supply system. This power tool is supplied with all the relevant safety guards and features, it should be checked before every operation, this manual should be read and kept in a safe place.
-
Page 11: Specific Safety Rules
Symbols IMPORTANT: Some of the following symbols may be used on your tool. V…………………………volts A…………………………amperes Hz……………………….hertz ~…………………….….alternating current …/m………………..revolutions per minute .....class II construction (double insulated) Kg………………………..kilograms ………………………..No load speed ……………….…..Conforms to European Harmonised New Approach Directives. DC ………………..…….Direct Current Important! The vibration value changes according to the area of application of the electric tool and may exceed the specified value in exceptional circumstances. -
Page 12: Package Contents
Unpacking Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. Package contents A) Drill B) User manual Functional Description (Fig.1) WARNING: Disconnect the plug from the power source before making any assembly, adjustments or changing accessories. - Page 13 Installing and adjusting the depth stop (Fig.1-2) The depth stop (2) is held in place by the additional handle (8) by clamping. The clamp can be released and tightened by turning the handle. Release the clamp and fit the depth stop (2) in the recess provided for it in the additional handle.
- Page 14 Tip: Start drilling holes at low speed. Then increase the speed in stages. Benefits: The drill bit is easier to control when starting the hole and will not slide away. Forward/Reversing lever Your tool is equipped with a forward/ reversing lever (Fig. 2-7) located above the trigger. This lever is for changing rotation of the chuck.
- Page 15 Tips for working with your hammer drill Drilling concrete and masonry Switch the Drill/Hammer drill selector switch (3) to position B (Hammer drill). Always use carbide drill bits and a high speed setting for drilling into masonry and concrete. Drilling steel Switch the drill / hammer drill selector switch (3) to position A (drill).
-
Page 16: General Maintenance
Accessories CAUTION: Use only accessories or attachments recommended for use with your Terratek tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. -
Page 17: Declaration Of Conformity
Declaration of Conformity We ACL Group (Intl.) Ltd, England DN6 8LZ declare that the 750W Electric Hammer Drill has been manufactured according to our full quality assurance procedures. The declaration is to certify that it conforms to CE, EMC, LVD, MD and RoHS directives: EN55014-1: 2006 + A1 EN55014-2: 1997 + A1 + A2 EN61000-3-2: 2006 + A1 + A2... - Page 18 Please read the following carefully ACL Group (Intl) Ltd. and/or it’s distributor has provided the parts list and assembly diagram as a reference tool only. Neither ACL Group (Intl). Ltd. or its distributor makes any representation or warranty of any kind to the buyer that he or she is qualified to do any repairs or replace any parts of this product.
