Summary of Contents for Terratek T14LCID

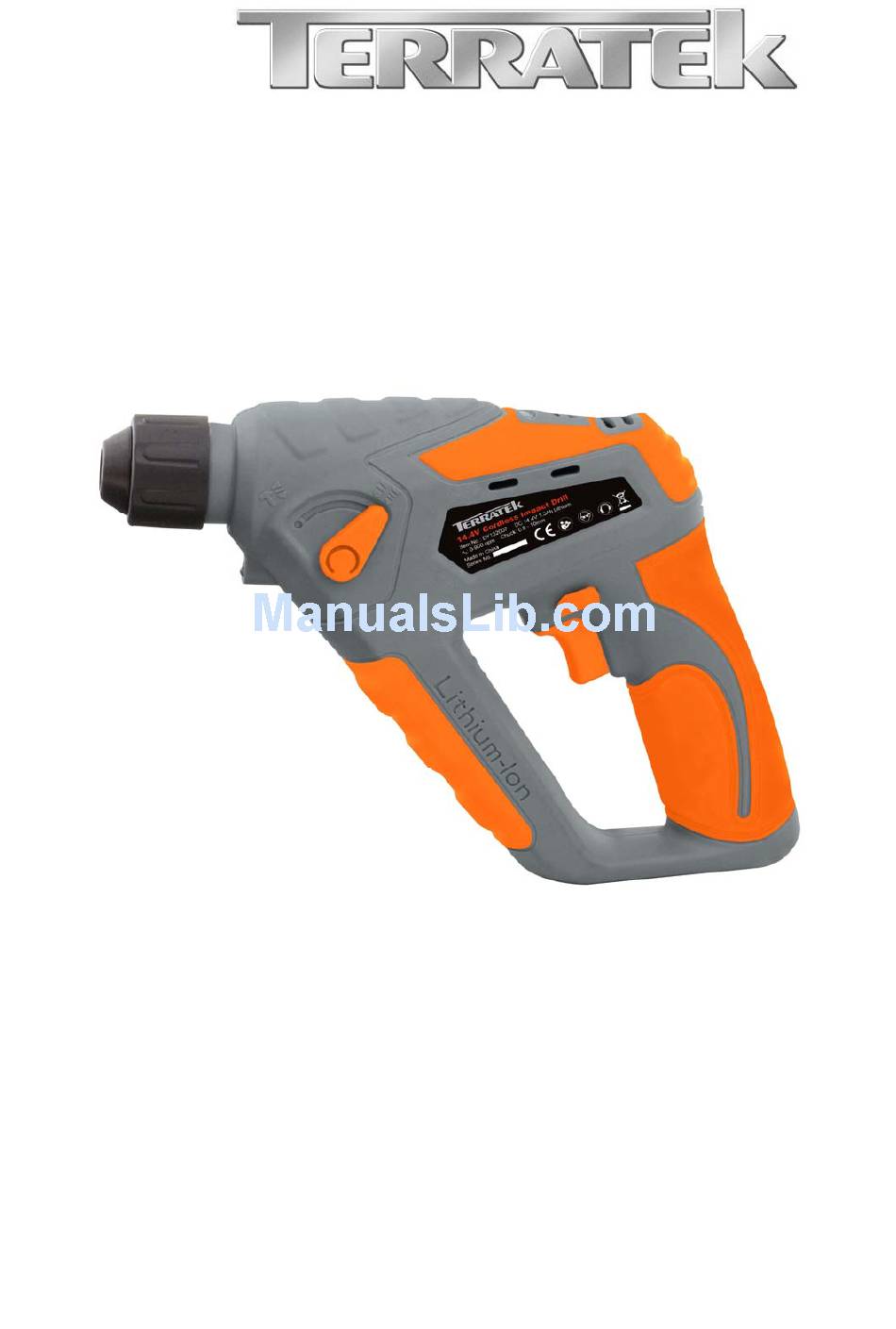

- Page 1 14.4V Cordless Impact Drill T14LCID User Manual – Please read and retain for future reference.
-
Page 2: Parts List
Contents Parts List Technical Information Safety Instructions Using your drill Maintenance Warranty Parts List Description Description Battery Impact out bushing Switch Rubber band Reverse switch Hammer head Left housing Rubber band Power indicator Bead ring Transparent plate Piston Function knob Gasket Rubber band Dowel pin... - Page 3 Exploded Assembly Diagram...
- Page 4 NOTICE: Actual product may vary from pictures shown. Fig.1 Fig. 2 1) SDS-Plus tool holder 2) Dust protection cap 3) Locking sleeve 4) Selector switch for drilling/hammer drilling 5) Battery charge-control indicator...
- Page 5 6) Indicator for right rotation 7) Indicator for left rotation 8) Rotational direction switch 9) On/Off switch 10) Keyless chuck with SDS-Plus* 11) Drill bit * 12) Screwdriver bit with SDS-Plus* 13) Drill bit with SDS-Plus * 14) Socket for charge plug 15) Charge connector *The accessories illustrated or described are not included as standard delivery.
-
Page 6: Technical Information
Fig.5 Technical Information Voltage: 14.4V Battery: Li-ion, 1300mAh No load speed: 0 - 900/min Impact Rate: 0 - 4300/min Chuck: 0.8 - 10mm Charger: 3 – 5 hours. Drilling Capacity Steel: Wood: 16mm Concrete: 10mm Noise Sound pressure level: LPA= 86dB(A) Uncertainty KPA=3dB Sound power level: LWA= 97dB(A) -
Page 7: Important Safety Information
Read and Keep This Manual Please read carefully all instructions within this manual. Failure to follow all safety warnings can result in serious personal injury. The term “Power Tool” in all of the following warnings refers to your mains operated (corded) or battery operated (cordless) power tool. -
Page 8: Power Tool Use And Care
Never use your power tool whilst under the influence of alcohol, drugs or medication. Tiredness can often cause accidents, stay alert. Never use your power tool without the correct guards in place. Always use approved eye protection and dust mask. Non slip safety shoes and hearing protectors should be worn at all times when using your power tool. -
Page 9: Additional Safety Instructions
undersized cord will cause a drop in line voltage resulting in loss of power and overheating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. 10. DON’T FORCE THE TOOL. It has been designed to operate at maximum safety and performance levels. 11. - Page 10 Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Cutting into a water line causes property damage or may cause an electric shock.
- Page 11 A charger that may be suitable for one type of battery may create a risk of fire when used with another battery. Use battery operated tool only with specifically designed battery pack. Use of any other batteries may create a risk of fire. NEVER place hands or other body parts near the drill bit or chuck during operation.
-
Page 12: Specific Safety Rules
E) NEVER charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation. F) NEVER charge when the temperature is below 32°F (0°C) or above 104°F (40°C). G) NEVER connect two battery chargers together. H) NEVER insert foreign objects into the hole for the battery or the battery charger. - Page 13 Note: Change the operating mode only when the machine is switched off! Otherwise, the machine can be damaged. To change the operating mode, turn the selector switch for “drilling/hammer drilling” (4) to the requested position. Position for hammer drilling for concrete or stone. Position for drilling without impact in wood, metal, ceramic and plastic as well as for screw driving.
- Page 14 Accessories CAUTION: Use only accessories or attachments recommended for use with your Terratek tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
-
Page 15: General Maintenance
General Maintenance 1. Keep the air vents free from obstruction and clean regularly. 2. Check regularly for any dust particles entering the grills around the motor and the switch. Use a soft brush to remove any dust particles. Wear safety glasses to protect your eyes whilst cleaning. 3. - Page 16 Please read the following carefully ACL Group (Intl) Ltd. and/or it’s distributor has provided the parts list and assembly diagram as a reference tool only. Neither ACL Group (Intl). Ltd. or its distributor makes any representation or warranty of any kind to the buyer that he or she is qualified to do any repairs or replace any parts of this product.
- Page 17 ACL Group (Intl) Ltd Doncaster, England Email: info@terratekintl.com www.terratekintl.com...
