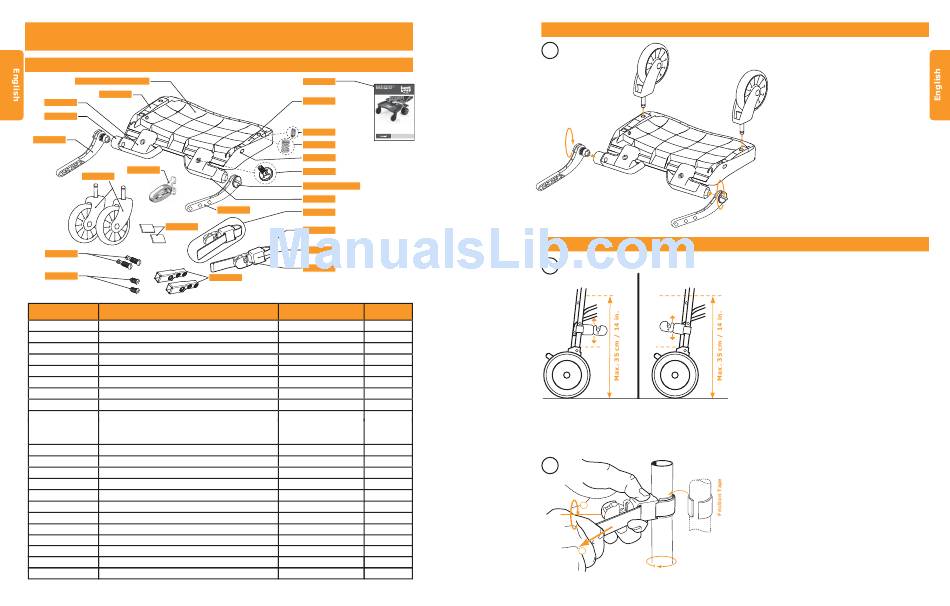

KEEP FOR FUTURE REFERENCE
CONTENT
81610 - 81612
81614
81330
81320
81300
81150
81613
81604
81520
80371
Part no.
Description
81610 - 81612
Platform
81150
Strap with hook
81310/81311
Height adjustment screw (red/blue)
81320
Arm support, left
81321
Arm support, right
81330
Fixing plate
81340
Fixing screw
81613
Wheel
81600
Connector assembly for Maxi
81601 Connector cover
81602 Connector strap
81603 Connector bolt
81604
Friction Tape (25 x 50 mm)
81520
Cotter pin
81800
Owner manual
81614
Suspension arm left
81615
Suspension arm right
81616
Suspension spring
81617
Suspension rivet
81618
Wheel locking cage
80370
Extender
80371
Extender Screw
81300
Arm, left
81301
Arm, right
- 4 -
81800
Eng
Es Fr
De
It
Nl Pt
Hu Ru
Sl
Sf Se
Manual del propietario
Owners manual
Használati utasítás
Manuel d'utilisation
Руководство для владельца
Gebrauchsanleitung
Navodila za uporabo
Manuale utente
Handleiding
Bruksanvisning
Käyttöohje
Manual do proprietário
81615
Modell / Model / Modelo / Modèle / 型號 / Típus / Модель / Malli :
BUGGYBOARD-
81618
Control no.
81616
81617
81340
81310/81311
81321
81301
81600
81602
81601
81603
80370
Preassembled part
Qty.
1
1
x
2
x
1
x
1
x
2
x
2
2
2
2
2
1
x
1
x
1
x
2
x
2
x
2
2
2
x
1
x
1
THE WHEELS AND ARMS
1
MAXI
BuggyBoard is a registered trade-
mark and is protected by patent.
THE CONNECTORS
2.
3.
1. Attaching the wheels and the arms.
2. Positioning the connectors.
The connectors can be attached facing forward
or backwards. The connectors can be fitted onto
different shapes of tubing with a maximum
circumference of 22.5 cm (9 in.). Bend the
strap round the tubing. Then feed the strap
through the slot in the connector cover and pull
the strap gently. Check the position of the
connectors to be sure that
• the arms (81320/81321) will be able to reach
the connectors (maximum 35 cm (14 in.)
above the ground).
• they are as low as possible on the stroller.
• they do not interfere with the stroller's folding
mechanism.
• the arms stay clear of both the braking
mechanisms and the wheels of the stroller.
3. Attaching the connectors.
Once certain of the position of the connectors,
loosen the strap and fix the Friction Tape on the
uprights where the Connectors are going to be
2
attached. Reposition the connector over the
friction tape and pull the strap tight. Secure the
connector by turning the connector-bolt
clockwise. Check that the stroller still folds
properly and th brakes still work properly; if
1
not, you may need to reposition the
connectors.
a
a = max . 22.5 cm / 9 in.
- 5 -
