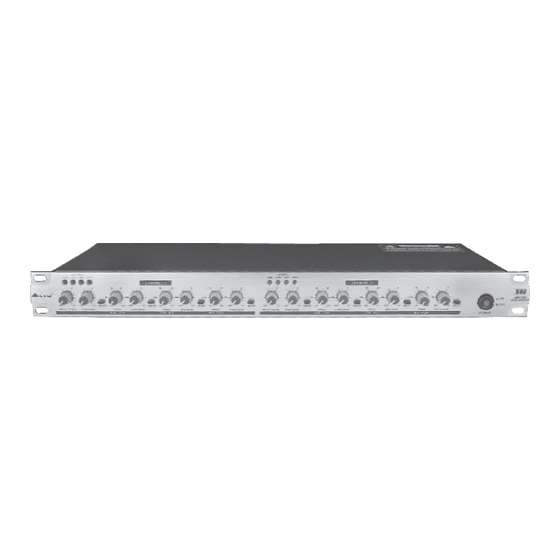

- Page 1 User's Manual 4-WAY STEREO ACTIVE CROSSOVER www.altoproaudio.com Version 2.0 Dec. 2002 English...
- Page 2 the recommended fuse type as indicated in this SAFETY RELATED SYMBOLS manual. Do not short-circuit the fuse holder. Before replacing the fuse, make sure that the product is CAUTION OFF and disconnected from the AC outlet. RISK OF ELECTRIC SHOCK DO NOT OPEN Protective Ground This symbol, wherever used, alerts you to the pre-...
- Page 3 Preface Dear Customer: Thanks for choosing LTO Active Crossover and thanks for choosing the one of results of LTO AUDIO TEAM job and researches. For our LTO AUDIO TEAM, music and sound are more than a job...are first of all passion and let us say...our obsession! We have been designing professional audio products for a long time in cooperation with some of the major brands in the world in the audio field.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION ..........................4 2. FEATURE LIST ............................4 3. CONTROL ELEMENTS ........................4 3.1 The Front Panel 3.2 The Rear Panel 4. INSTALLATION & CONNECTION .....................7 4.1 Mains Connection . 4.2 Rack Mounting 4.3 Audio Connection 5. -
Page 5: Introduction
LTO products by purchasing our X40 Active Crossover. It is the most effective support to us. The X40 Active Crossover is an ideal crossover and used universally in most small and large PA systems, recording studio monitors, DJ setups, commercial installations and live concerts. It is not only adaptable in mounting to different sound systems, but also it has many developed features. -
Page 6: The Rear Panel
SUB OUT1 INPUT 1 CHANNEL 1 CHANNEL 2 44 43 42 41 40 39 34 33 32 31 30 X40 4-way stereo active crossover 4-WAY STEREO MODE Ch1 HIGH Output Fuse Holder Ch2 Line Input AC Inlet Ch1 Line Input... - Page 7 110-120V 220-240V 220-240V 110-120V THIS IS SET FOR THIS IS SET FOR 110V AC TO 120V 220V AC TO 240V AC OPERATION AC OPERATION The fuse-holder above the AC connector on the rear of the chassis has 3 triangular markers (please refer to the above pictures), with two of these triangles opposing each other, your unit is set to the operating Voltage printed next to these markers.
-
Page 8: Installation & Connection
4.2 Rack Mounting The most secure mounting is on a universal rack shelf available from various rack manufactures or your music dealer. The X40 Active Crossover fits into one standard 19" rack unit of space. Please allow at least an additional 4"... - Page 9 In Line Connection For these applications, the X40 Active Crossover provides XLR connectors to easily interface with most professional audio devices. Follow the configuration examples below for your particular connection. Balanced Ring TIP RING SLEEVE Sleeve Unbalanced Ring Sleeve...
-
Page 10: Application
4. Output the Mid frequencies signal to the power amplifier. 5. Output the High frequencies signal to the power amplifier. 6. Power up the X40 first, then the power amplifier to run the system. While powered off, please ensure the power amplifier is turned off first, then the X40. -
Page 11: Technical Specifications
6. TECHNICAL SPECIFICATIONS Electrical SUB-LOW Frequency Range 30Hz-250Hz LOW-MID Frequency Range 100Hz-1KHz MID-HIGH Frequency Range 1KHz-9KHz Av=0dB, fc=46, 200, 1K, 5KHz HUM & Noise SUB e S ction ( utput @ 0db) -95dBu LOW Section (Output@0dB) -94dBu MID S ection utput @0dB) -94dBu... -
Page 12: Warranty
7. WARRANTY 1. WARRANTY REGISTRATION CARD To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within 10 days of the Purchase Date. All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of the sales status, so as to purport a more effective and efficient after-sales warranty service. - Page 13 Tel: 886-4-22313737 email: info@altomobile.com Fax: 886-4-22346757 All rights reserved to ALTO Mobile. Due to continued development in response to customer feedback, product features, specifications and/or internal/external design may be changed without prior notice. No photocopying, translation or reproduction of any part of this user manual is allowed without prior written permission.Copyright...
