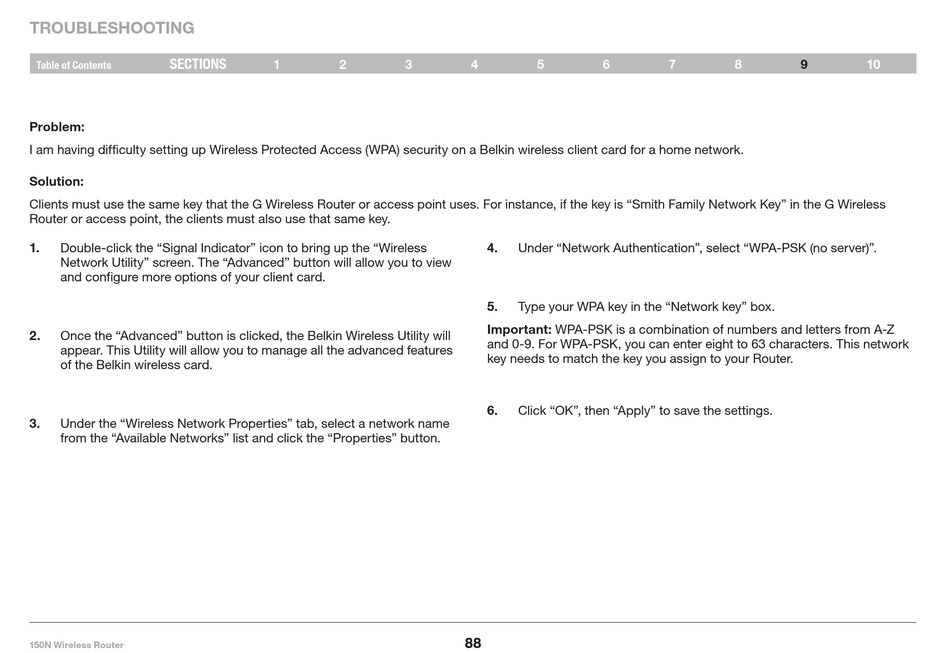

Belkin F6D4230-4 User Manual page 90

TRoUblEsHooTINg
sections
table of contents
Problem:
I am having difficulty setting up Wireless Protected Access (WPA) security on a Belkin wireless client card for a home network�
solution:
Clients must use the same key that the G Wireless Router or access point uses� For instance, if the key is "Smith Family Network Key" in the G Wireless
Router or access point, the clients must also use that same key�
1 Double-click the "Signal Indicator" icon to bring up the "Wireless
Network Utility" screen� The "Advanced" button will allow you to view
and configure more options of your client card�
2 Once the "Advanced" button is clicked, the Belkin Wireless Utility will
appear� This Utility will allow you to manage all the advanced features
of the Belkin wireless card�
3 Under the "Wireless Network Properties" tab, select a network name
from the "Available Networks" list and click the "Properties" button�
150N Wireless Router
1 2 3 4 5 6
4 Under "Network Authentication", select "WPA-PSK (no server)"�
5
Type your WPA key in the "Network key" box�
Important: WPA-PSK is a combination of numbers and letters from A-Z
and 0-9� For WPA-PSK, you can enter eight to 63 characters� This network
key needs to match the key you assign to your Router�
6 Click "OK", then "Apply" to save the settings�
88
7 8 9 10
