alTERNaTE sETUP METHod
sections
table of contents

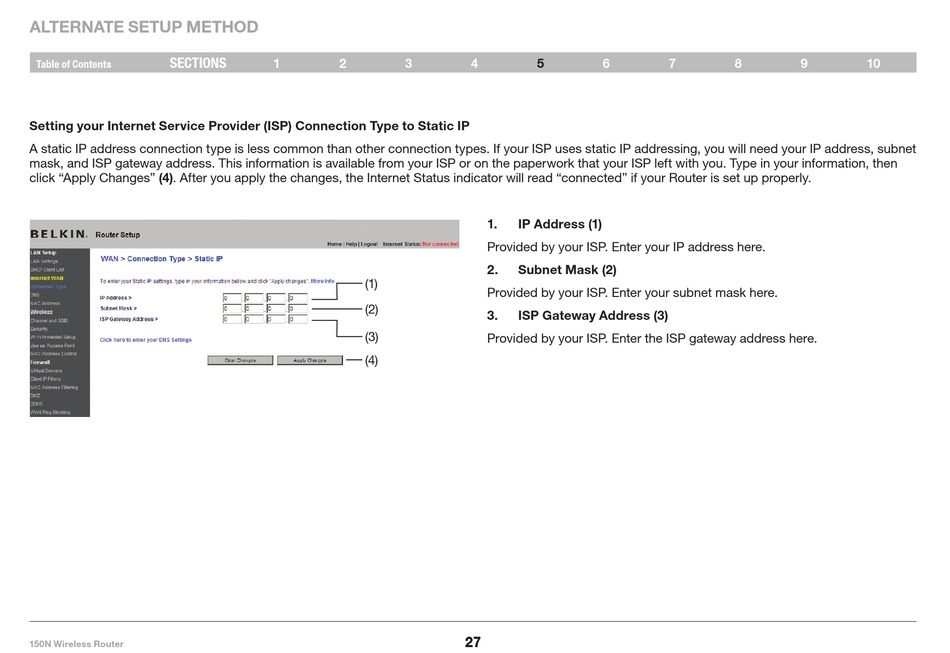

setting your Internet service Provider (IsP) Connection Type to static IP
A static IP address connection type is less common than other connection types� If your ISP uses static IP addressing, you will need your IP address, subnet
mask, and ISP gateway address� This information is available from your ISP or on the paperwork that your ISP left with you� Type in your information, then
click "Apply Changes" (4)� After you apply the changes, the Internet Status indicator will read "connected" if your Router is set up properly�
150N Wireless Router
1 2 3
(1)
(2)
(3)
(4)
4 5 6
1 IP address (1)
Provided by your ISP� Enter your IP address here�
2 subnet Mask (2)
Provided by your ISP� Enter your subnet mask here�
3 IsP gateway address (3)
Provided by your ISP� Enter the ISP gateway address here�
27
