EMPIRE
EMPIRE
Comfort Systems
Outdoor Gas Fireplace
!
DANGER
Installer:
Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Read the installation, operating and maintenance
instructions thoroughly before installing or servicing
this equipment.
If the information in these instructions are not fol-
lowed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
GAS-FIRED
WARNING
WARNING

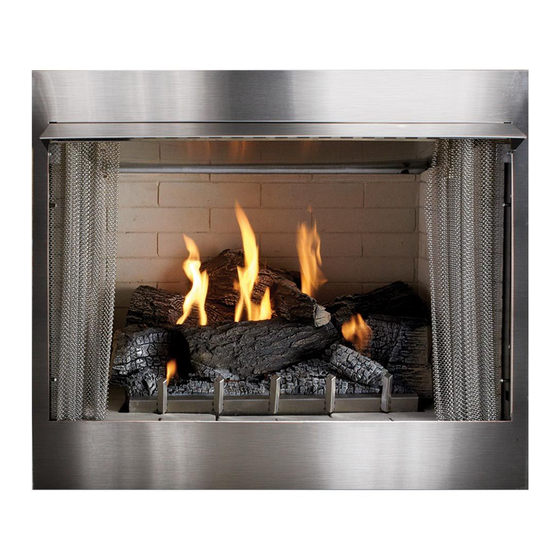

OUTDOOR GAS FIREpLACE
Op36Fp32M(N,p)-2
Op36Fp72M(N,p)-2
Op42Fp32M(N,p)-2
Op42Fp72M(N,p)-2
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
For Outdoor Use Only.
If not installed, operated and maintained in accordance
with the manufacturer's instructions, this product
could expose you to substances in fuel or from fuel
combustion which can cause death or serious illness.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and immediately call your gas supplier or fire de-
partment.
Do not store or use gasoline or other flammable va-
pors and liquids in the vicinity of this or any other
appliance.
An Lp-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
MODELS
WARNING
WARNING
WARNING
WARNING
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Empire Comfort Systems OP36FP32MN-2
Summary of Contents for Empire Comfort Systems OP36FP32MN-2
- Page 1 INSTALLATION INSTRUCTIONS EMPIRE EMPIRE AND OWNER'S MANUAL Comfort Systems Outdoor Gas Fireplace OUTDOOR GAS FIREpLACE MODELS Op36Fp32M(N,p)-2 Op36Fp72M(N,p)-2 Op42Fp32M(N,p)-2 Op42Fp72M(N,p)-2 GAS-FIRED CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE Important Safety Information ..................3 Safety Information for Users of LP-Gas ..............4 Introduction ......................5-6 Specifications ......................7 Gas Supply .......................8 Clearances .......................8 Combustible Materials ....................9 Fireplace Dimensions ..................10-11 Planning Installation ..................11-12 Fireplace Framing and Installation .................13 Gas Line Connection ....................13 Operation Instructions / Flame Appearance ............13 OP(36,42)FP72 Lighting Instructions ..............14 OP(36,42)FP32 Lighting Instructions ..............15... -
Page 3: Important Safety Information
IMpORTANT SAFETY INFORMATION • Installer: please leave these instructions with the owner for • WARNING: Keep appliance area clear and free from future reference combustible materials, gasoline and other flammable vapors and liquids. • This unit complies with ANSI Z21.97/CSA 2.41 and CSA 4.96 U.S. for Outdoor Gas Fireplaces. •... -
Page 4: Safety Information For Users Of Lp-Gas
SAFETY INFORMATION FOR USERS OF Lp-GAS Propane (LP-Gas) is a flammable gas which can cause fires SOME pOINTS TO REMEMBER and explosions. In its natural state, propane is odorless and • Learn to recognize the odor of LP-gas. Your local LP-Gas colorless. You may not know all the following safety precautions Dealer can give you a “Scratch and Sniff”... -
Page 5: Introduction
WARNING: This appliance is equipped for (natural gas or propane) When installed on surfaces where water may collect or cause gas. Field conversion is not permitted. damage: Empire Comfort Systems recommends a slope of 1/8 in to 1/4 in per foot towards the drain port suggested. The fireplace can be shimmed level. 32272-0-0713 Page 5... -
Page 6: Introduction
INTRODUCTION Enclosures for LP-gas supply cylinders shall be ventilated by • When the appliance is connected to a fixed piping system, openings at the level of the cylinder valve and at floor level. The the installation must conform with local codes, or in the ab- effectiveness of the opening(s) for purposes of ventilation shall sence of local codes with the National Fuel Gas Code, ANSI be determined with the LP-gas supply cylinder(s) in place. -
Page 7: Specifications
SpECIFICATIONS Model Op36Fp Op42Fp Input Maximum 50,000 50,000 Minimum 36,000 LP / 38,000 NAT 36,000 LP / 38,000 NAT Orifice P245 #50 LP / P280 #29 NAT P300 #48 LP / P280 #29 NAT Accessories BD36SS 36" Bifold Glass Door - Stainless Steel BD42SS 42"... -
Page 8: Clearances
CLEARANCES Minimum Wall and Ceiling Clearances Mantel Clearances Sidewall and Back Clearances: The clearance from the inside of the fireplace to any combustible wall should not be less than 2". Ceiling Clearances: The ceiling height should not be less than 36" from the top of the hood. Mantel Clearances: Ventless fireplace models must use the hood supplied with the fireplace. If a combustible mantel is installed, it must meet the clearance requirements detailed in Figure 2. -
Page 9: Fireplace Dimensions
FIREpLACE DIMENSIONS DIMENSIONS (in inches) REFERENCE LETTER Op36Fp Op42Fp 41-7/8 41-7/8 41-5/8 43-1/8 19-1/4 19-1/4 32-1/4 36-1/4 34-7/8 34-7/8 6-3/8 6-3/8 30-3/8 30-3/8 8-3/8 8-3/8 5-1/4 5-1/4 37-5/8 39-5/8 75-3/8 79-1/4 2-11/16 2-11/16 8-1/8 8-1/8 32272-0-0713 Page 9... -
Page 10: Planning Installation
pLANNING INSTALLATION In planning the installation for the fireplace, it is necessary to Installation must conform with one of the following conditions: determine where the unit is to be installed and whether optional • With walls on all sides, but with no overhead cover; accessories are desired. -
Page 11: Fireplace Framing And Installation
pLANNING INSTALLATION Installing the Hood Cleaning Instructions A stainless steel hood is furnished with each outdoor fireplace. The This appliance is built using mostly high-grade stainless steel to hood MUST be installed before the fireplace is used. Failure to do resist rust-through. In outdoor applications, all stainless steel will so may create a possible fire hazard. develop a dull patina and, depending on the local environment and on the materials used in the installation, may develop some surface oxidation (rust). - Page 12 FIREpLACE FRAMING AND INSTALLATION 7. Secure the non-combustible board to the middle bracket 4. Slide the fireplace into position inside the metal studs. using two 10-16 flathead screws as shown in Figure 11. Secure the fireplace to the metal studs with four #10 pan- head screws as shown in Figure 9. Figure 11 Figure 9 Alternate Framing and Installation Method 1. Install flanges on side of fireplace as shown using holes on 5. Connect the gas line to the unit and check for leaks with a side of firebox. See Figure 8. The middle pair of holes if for soapy water solution. the 1/2 inch non-combustible board provided with the unit. Note: Ensure that the gas shut-off valve is accessible.
-
Page 13: Gas Line Connection
GAS LINE CONNECTION The fireplace is designed to accept a 3/8-inch gas line for an approved ventless gas logset. Have the line installed by a qualified service person in accordance with all building codes. Consult local building codes to properly size the gas supply line leading to the 3/8- inch hook-up at the unit. The state of Massachusetts requires that a flexible appliance connector cannot exceed three feet in length. -
Page 14: Op(36,42)Fp72 Lighting Instructions
Op(36,42)Fp72 LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXpLOSION MAY RESULT CAUSING pROpERTY DAMAGE, pERSONAL INJURY, OR LOSS OF LIFE. A. BEFORE LIGHTING, smell around the appliance area for B. -
Page 15: Op(36,42)Fp32 Lighting Instructions
Op(36,42)Fp32 LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by C. Use only your hand to push in or turn the gas control hand. -
Page 16: Pilot And Main Burner Flame Characteristics
pILOT AND MAIN BURNER FLAME CHARACTERISTICS Pilot Flame Pattern pilot Flame pattern Figure 16 shows a correct pilot flame pattern. The correct flame will be blue and will extend beyond the thermocouple/thermopile. The flame will surround the thermocouple/thermopile just below the tip. A slight yellow flame may occur where the pilot flame and main burner flame meet. After use, cleaning of the pilot burner may be required for the proper flame. The pilot orifice can be cleaned with high pressure air or by placing under running water. Pilot orifice must be dry before replacement. Use a pipe cleaner to clean inside the pilot after the pilot orifice has been removed. To Remove Pilot Orifice Disconnect the pilot supply line at the pilot burner. - Page 17 MILLIVOLT WIRING BROWN WHITE GREEN GAS CONTROL ORANGE VALVE POWER HI/LO PILOT Solenoid MAIN (GND) PILOT ELECTRONIC BLACK CONTROL MODULE (SENSOR) ORANGE (IGNITOR) AF-4000 B/P ORANGE BROWN BLACK BLACK Figure 17 Figure 18 32272-0-0713 Page 17...
-
Page 18: Remote Control Installation & Operation
REMOTE CONTROL INSTALLATION & OpERATION TWO-FUNCTION WIRELESS REMOTE CONTROL SYSTEM FOR ON/OFF-HI/LO OpERATION OF THE AF-4000 GAS CONTROL VALVE IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT ATTEMpT TO OpERATE INTRODUCTION This remote control system was developed to provide a safe, reliable, and user-friendly remote control system for use with the AF-4000 gas control valve used with some gas heating appliances. The system operates on radio frequencies (RF) within a 20’ range using non- directional signals. -
Page 19: Maintenance
MAINTENANCE Keep the control compartment, logs and burner area surrounding the to lighting instructions located on the rating plate of the log set. logs clean by vacuuming or brushing area at least twice a year. Never obstruct the flow of the combustion and ventilation air. Keep THE LOGS CAN GET VERY HOT – HANDLE ONLY WHEN the front of the fireplace clear of all obstacles and materials. -
Page 20: Parts List
pARTS LIST USE ONLY MANUFACTURER'S REpLACEMENT pARTS. USE OF ANY OTHER pARTS COULD CAUSE INjURY OR DEATH. pART No. Index Description Op36Fp32 Op36Fp72 Op42Fp32 Op42Fp72 23219 23219 23219 23219 Top Standoff 27781 27781 27782 27782 Firebox Front 32359 32359 32359 32359 Middle Bracket R10391... -
Page 21: Parts List
pARTS LIST pART No. Index Description Op36Fp32 Op36Fp72 Op42Fp32 Op42Fp72 R1155 R10814 R1155 R10814 Spark Probe R10813 R10813 Remote Reciever with Harness R10954 R10812 R10954 R10812 Wire Harness R10811 R10811 Control Module R9761 R9761 Piezo Ignigtor 28539 28539 Control Module Base 28088 27800 28088... -
Page 22: Parts View
pARTS VIEW 22 28 21 20 Page 22 32272-0-0713... -
Page 23: Master Parts Distributor List
MASTER pARTS DISTRIBUTOR LIST To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort. com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem with the unit. -
Page 24: Warranty Terms
WARRANTY TERMS Empire Comfort Systems Inc. warranties this hearth product to be free from defects at the time of purchase and for the pe- riods specified below. Hearth products must be installed by a qualified technician and must be maintained and operated safely, in accordance with the instructions in the owner’s manual. This warranty applies to the original purchaser only and is not transferable. All warranty repairs must be accomplished by a qualified gas appliance technician. Limited Five-Year Parts Warranty – All Components (Except Remote Controls, Thermostats, Accessories and Replacement Parts) Should any part fail because of defective workmanship or material within five years from the date of purchase, Empire will repair or replace at Empire’s option.
