EMPIRE
EMPIRE
Comfort Systems

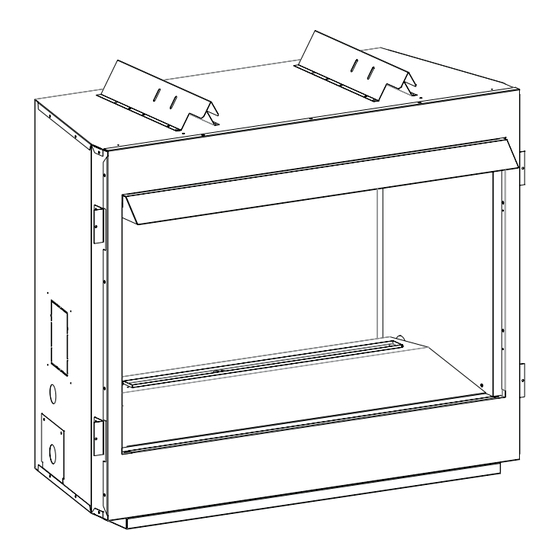

Outdoor Gas Fireplace
!
DANGER
Installer:
Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
If the information in these instructions are not fol-
lowed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Read the installation, operating and maintenance
instructions thoroughly before installing or servicing
this equipment.
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
GAS-FIRED
WARNING
WARNING
OUTDOOR GAS FIREpLACE
OLp36Fp72S(N,p)-2
OLp42Fp72S(N,p)-2
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
For Outdoor Use Only.
If not installed, operated and maintained in accordance
with the manufacturer's instructions, this product could
expose you to substances in fuel or from fuel combus-
tion which can cause death or serious illness.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and immediately call your gas supplier or fire de-
partment.
Do not store or use gasoline or other flammable va-
pors and liquids in the vicinity of this or any other
appliance.
An Lp-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
MODELS
WARNING
WARNING
WARNING
WARNING
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Empire Comfort Systems OLP36FP72SN-2
Summary of Contents for Empire Comfort Systems OLP36FP72SN-2

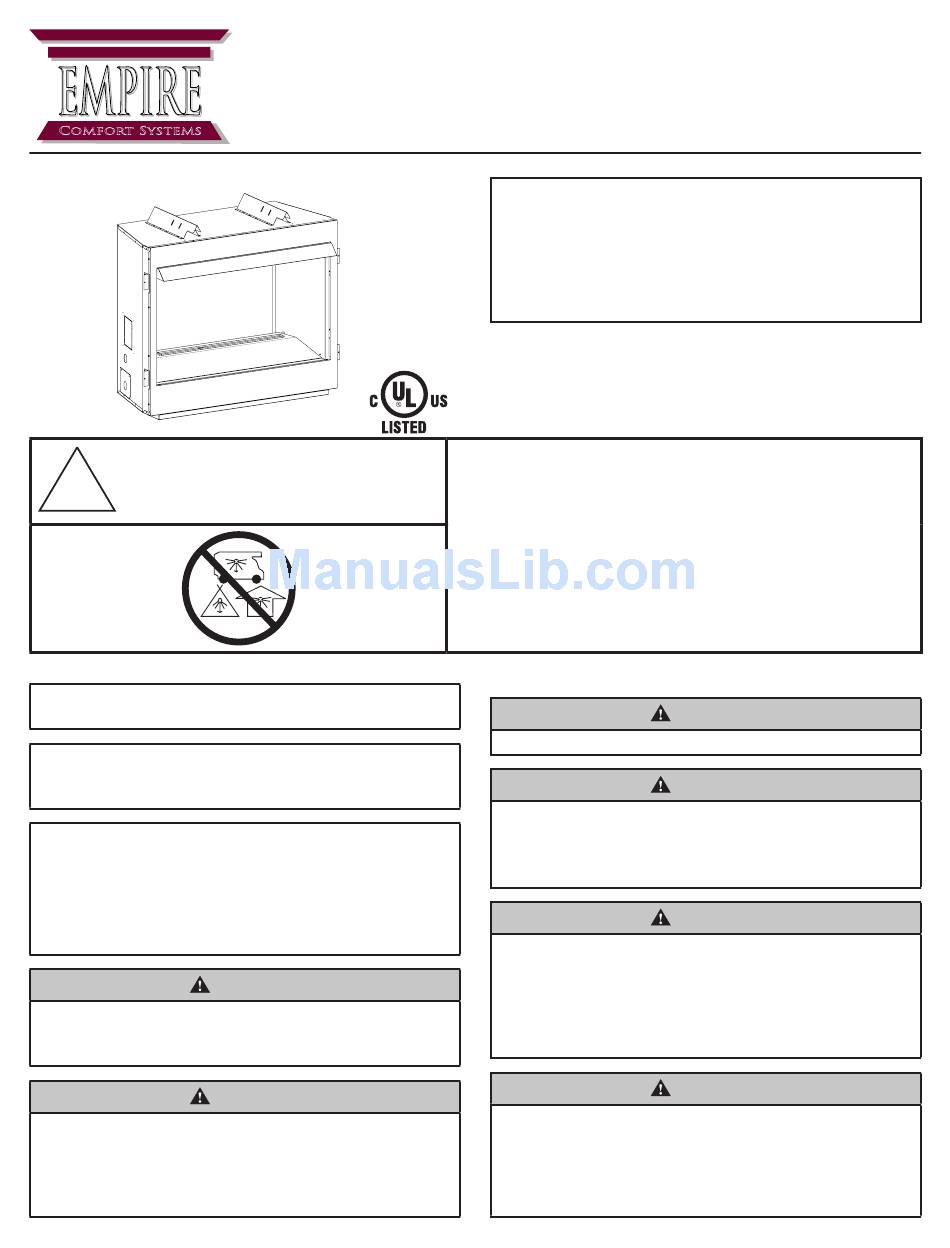

- Page 1 INSTALLATION INSTRUCTIONS EMPIRE EMPIRE AND OWNER'S MANUAL Comfort Systems Outdoor Gas Fireplace OUTDOOR GAS FIREpLACE MODELS OLp36Fp72S(N,p)-2 OLp42Fp72S(N,p)-2 GAS-FIRED CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE Important Safety Information ..................3 Safety Information for Users of LP-Gas ..............4 Introduction ......................5-6 Specifications ......................7 Gas Supply .......................7 Clearances .......................8 Combustible Materials ....................8 Fireplace Dimensions ....................9 Planning Installation ..................10-11 Fireplace Framing and Installation ..............12-13 Gas Line Connection ....................13 Operation Instructions / Flame Appearance ............14 OLP(36,42)FP72 Lighting Instructions ..............15 Main Burner Flame Characteristics ................16... -
Page 3: Important Safety Information
IMpORTANT SAFETY INFORMATION • Installer: please leave these instructions with the owner for • WARNING: Keep appliance area clear and free from future reference combustible materials, gasoline and other flammable vapors and liquids. • This unit complies with ANSI Z21.97/CSA 2.41 and CSA 4.96 U.S. for Outdoor Gas Fireplaces. •... -
Page 4: Safety Information For Users Of Lp-Gas
SAFETY INFORMATION FOR USERS OF Lp-GAS Propane (LP-Gas) is a flammable gas which can cause fires SOME pOINTS TO REMEMBER and explosions. In its natural state, propane is odorless and • Learn to recognize the odor of LP-gas. Your local LP-Gas colorless. You may not know all the following safety precautions Dealer can give you a “Scratch and Sniff”... -
Page 5: Introduction
WARNING: This appliance is equipped for (natural gas or propane) When installed on surfaces where water may collect or cause gas. Field conversion is not permitted. damage: Empire Comfort Systems recommends a slope of 1/8 in to 1/4 in per foot towards the drain port suggested. The fireplace can be shimmed level. Hearths should slope away from the front of the fireplace and chase 32274-0-0713... -
Page 6: Introduction
INTRODUCTION Enclosures for LP-gas supply cylinders shall be ventilated by • When the appliance is connected to a fixed piping system, openings at the level of the cylinder valve and at floor level. The the installation must conform with local codes, or in the ab- effectiveness of the opening(s) for purposes of ventilation shall sence of local codes with the National Fuel Gas Code, ANSI be determined with the LP-gas supply cylinder(s) in place. -
Page 7: Specifications
SpECIFICATIONS Model OLp36Fp OLp42Fp Input Maximum 36,000 40,000 Minimum 25,000 28,000 Orifice P245 #50 LP / P301 #35 NAT P265 #49 LP / P209 #31 NAT Accessories BD36SS 36" Bifold Glass Door - Stainless Steel BD42SS 42" Bifold Glass Door - Stainless Steel DT36SS 36"... -
Page 8: Clearances
CLEARANCES Minimum Wall and Ceiling Clearances (Figure 2) Mantel Clearances Sidewall and Back Clearances: The clearance from the inside of the fireplace to any combustible wall should not be less than 2". Ceiling Clearances: The ceiling height should not be less than 36" from the top of the hood. Mantel Clearances: Ventless fireplace models must use the hood supplied with the fireplace. If a combustible mantel is installed, it must meet the clearance requirements detailed in Figure 2.. -
Page 9: Fireplace Dimensions
FIREpLACE DIMENSIONS DIMENSIONS (in inches) REFERENCE LETTER OLp36Fp OLp42Fp 41-7/8 41-7/8 41-5/8 43-1/8 19-1/4 19-1/4 32-1/4 36-1/4 34-7/8 34-7/8 6-3/8 6-3/8 30-3/8 30-3/8 8-3/8 8-3/8 5-1/4 5-1/4 37-5/8 39-5/8 75-3/8 79-1/4 2-11/16 2-11/16 8-1/8 8-1/8 32274-0-0713 Page 9... -
Page 10: Planning Installation
pLANNING INSTALLATION In planning the installation for the fireplace, it is necessary to Outdoor Fireplace Enclosure Requirements determine where the unit is to be installed and whether optional Do not install appliance until all necessary provisions are made accessories are desired. Gas supply piping should also be planned for combustion and ventilation air. -
Page 11: Planning Installation
pLANNING INSTALLATION Installing the Hood A stainless steel hood is furnished with each outdoor fireplace. The hood MUST be installed before the fireplace is used. Failure to do so may create a possible fire hazard. Finishing Hearth extensions are recommended, not a requirement for these gas fireplaces. Figure 7 Cleaning Instructions This appliance is built using mostly high-grade stainless steel to resist rust-through. In outdoor applications, all stainless steel will develop a dull patina and, depending on the local environment and on the materials used in the installation, may develop some surface oxidation (rust). -
Page 12: Fireplace Framing And Installation
FIREpLACE FRAMING AND INSTALLATION Locate the three metal framing studs: 3. Locate the middle bracket. Loosen the screw in the middle top of the fireplace. Slide the bracket under the screw as shown in Figure 11. Tighten the hex-head screws on the SIDE fireplace secure a pan-head screw through the middle OLP36FP Two - 42" Stud One - 41-5/8" Top Stud bracket and into the top stud. 4. Slide the fireplace into position inside the metal studs. OLP42FP Two - 42" Stud One - 45-5/8"... -
Page 13: Gas Line Connection
FIREpLACE FRAMING AND INSTALLATION Figure 13 3. Connect the framing studs to the flanges using four #10 pan- Figure 12 head screws. Note: If using a drain tray, the bottom of the side framing studs Alternate Framing and Installation Method will be approximately 1” from the bottom of the firebox. 1. Install flanges on side of fireplace as shown using holes on 4. Locate the middle bracket. Loosen the screw in the middle side of firebox. See Figure 9. The middle pair of holes if for top of the fireplace. Slide the bracket under the screw as the 1/2 inch non-combustible board provided with the unit. shown in Figure 11. -
Page 14: Operation Instructions/Flame Appearance
OpERATION INSTRUCTIONS/FLAME AppEARANCE Flames from the pilot (rear right back side of the pan burner) as ANNUAL CLEANING/INSpECTION – Refer to parts diagram for well as the main flame should be visually checked as the burner location of items discussed below. cover is installed. • Inspect and clean burner air intake hole. Remove lint or particles with vacuum or brush. Failure to keep air intake hole clean will In normal operation at full rate after 10 to 15 minutes, the flame result in sooting and poor combustion. appearance should be sets of yellow flames. • Inspect and clean all burner ports. NOTE: All flames will be random by design, flame height will go • Inspect pilot for operation and accumulation of lint at air intake up and down. holes. -
Page 15: Olp(36,42)Fp72 Lighting Instructions
OLp(36,42)Fp72 LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXpLOSION MAY RESULT CAUSING pROpERTY DAMAGE, pERSONAL INJURY, OR LOSS OF LIFE. A. BEFORE LIGHTING, smell around the appliance area for B. -
Page 16: Main Burner Flame Characteristics
MAIN BURNER FLAME CHARACTERISTICS If pilot flame pattern is incorrect • See Troubleshooting, page 16. Main Burner Flame pattern The main burner flame will be completely yellow. Main Burner Flame Ignition and Extinction When the main burner is ignited it will take a few seconds for the full flame pattern to develop. When the main burner is extinguished it will take a few seconds for the flames to disappear. It is normal to have the flames burn down near the burner, as the remaining gas is burned. WIRING Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. -
Page 17: Remote Control Installation & Operation
REMOTE CONTROL INSTALLATION & OpERATION TWO-FUNCTION WIRELESS REMOTE CONTROL SYSTEM FOR ON/OFF-HI/LO OpERATION OF THE AF-4000 GAS CONTROL VALVE IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT ATTEMpT TO OpERATE INTRODUCTION This remote control system was developed to provide a safe, reliable, and user-friendly remote control system for use with the AF-4000 gas control valve used with some gas heating appliances. The system operates on radio frequencies (RF) within a 20’ range using non- directional signals. -
Page 18: Maintenance
MAINTENANCE Keep the control compartment and burner area surrounding the the fireplace, and does not require any action to correct. If you burner clean. prefer keeping your fireplace front looking factory-fresh, clean it as required with stainless steel cleaner. Always keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids. When installation application includes highly acidic applications such as mortar or stone etching, do not remove the protective PVC Never obstruct the flow of combustion and ventilation air. Keep the film from the stainless steel until after this application is complete. -
Page 19: How To Order Repair Parts
MASTER pARTS DISTRIBUTOR LIST To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort. com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem with the unit. -
Page 20: Master Parts Distributor List
pARTS LIST USE ONLY MANUFACTURER'S REpLACEMENT pARTS. USE OF ANY OTHER pARTS COULD CAUSE INJURY OR DEATH. Index No. part No. Description OLp36Fp72 OLp42Fp72 23219 23219 Top Standoff 27781 27782 Firebox Front 32359 32359 Mount Bracket 29182 29182 Liner, Side - Left 29183 29183 Liner, Side - Right... -
Page 21: Parts View
pARTS VIEW 16 20 32274-0-0713 Page 21... -
Page 22: Appliance Service History
AppLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service performed/Notes Page 22 32274-0-0713... -
Page 23: Warranty Terms
WARRANTY TERMS Empire Comfort Systems Inc. warranties this hearth product to be free from defects at the time of purchase and for the pe- riods specified below. Hearth products must be installed by a qualified technician and must be maintained and operated safely, in accordance with the instructions in the owner’s manual. This warranty applies to the original purchaser only and is not transferable. All warranty repairs must be accomplished by a qualified gas appliance technician. Limited Five-Year Parts Warranty – All Components (Except Remote Controls, Thermostats, Accessories and Replacement Parts) Should any part fail because of defective workmanship or material within five years from the date of purchase, Empire will repair or replace at Empire’s option. - Page 24 Empire Comfort Systems Inc. EMPIRE EMPIRE 918 Freeburg Ave. Belleville, IL 62220 If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. Comfort Systems www.empirecomfort.com Page 24 32274-0-0713...
