DATA SHEET
B-Series B5
Gigabit Ethernet Stackable Edge Switchv
BUSINESS ALIGNMENT
• Aligns network resource utilization
with business goals and priorities
• Reliable network operation for
mission-critical applications
OPERATIONAL EFFICIENCY
• Management automation
capabilities reduce network
operational expenses
• Automatic discovery and
deployment of VoIP services
SECURITY
• Ability to audit network for
adherence to compliance
regulations, such as PCI or HIPAA
• Network resources securely
allocated according to user roles
• Network security maintained
concurrently with user mobility
SUPPORT AND SERVICE
• Industry-leading customer
satisfaction and first call resolution
rates
• Personalized services, including
site surveys, network design,
installation, and training
• Comprehensive lifetime
warranty, including feature
upgrades and more
• Future-proofed with 802.3at
high-power PoE support
• Automatic discovery and deployment of VoIP services
• High-availability stacking assures reliable network operations
• Automated management features reduce operational costs
• Investment protection via comprehensive lifetime warranty
• 1.47 Tbps capacity and 809.5 Mpps

Product Overview

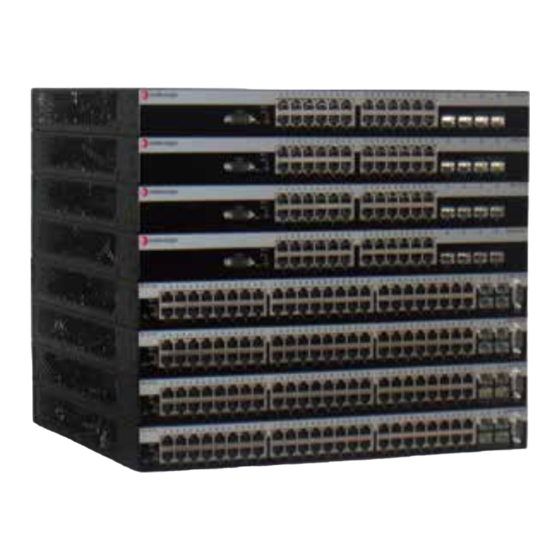

The Extreme Networks B5 is a scalable, high-performance Gigabit Ethernet
switch that provides support for the bandwidth-intensive and latency-sensitive
requirements of today's demanding business applications. The B5 is an excellent
choice for environments that require complete multi-layer switching capabilities
and support for high density 10/100/1000 Ethernet ports, cost effective10GE
uplinks, dual IPv4/IPv6 management, basic routing and policy-based automation
capabilities for advanced edge deployments.
The B5 incorporates the new 802.3at high-power PoE on all ports, translating into
increased power provisioning for power-hungry devices such as Pan/Tilt/Zoom
(PTZ) IP surveillance cameras, IP videophones, third party 802.11n access points
and virtual desktops. Built-in high-power PoE support is a cost effective alternative
for customers in place of purchasing separate PoE midspans, which can take away
valuable rack space, add cost and contribute more cabling to the wiring closet.
The B5 provides high port density in a 1U footprint and is environmentally friendly
by design. The B5's overall energy efficiency is further enhanced by a low current
draw and an extreme tolerance for high environmental temperatures. A highly-
scalable architecture and a comprehensive lifetime warranty ensure that a B5
network investment will sustain a secure, feature-rich and cost-effective network
well into the future.
B-Series – Data Sheet
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-Series B5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Extreme Networks B-Series B5

  • Page 1: Product Overview

    • Network security maintained concurrently with user mobility Product Overview SUPPORT AND SERVICE The Extreme Networks B5 is a scalable, high-performance Gigabit Ethernet • Industry-leading customer switch that provides support for the bandwidth-intensive and latency-sensitive satisfaction and first call resolution rates requirements of today’s demanding business applications.
  • Page 2: Reliability And Availability

    FIPS 1402 approved algorithm. receive prioritized access to network resources. Administrators can easily transition from RFC 3580 and complex access control list (ACL) deployments to the Extreme Networks Reliability and Availability role-based policy framework in a seamless fashion, without the need to make changes to their RADIUS infrastructure (e.g., adding...
  • Page 3 IEEE 802.1p – Traffic classification IEEE 802.1q – VLAN Tagging RFC 2453 – RIP v2 RFC 3046 – DHCP/BootP Relay Protocol-based VLANs with Extreme Networks Policy IEEE 802.3ac – VLAN Tagging Extensions RFC 3376 – IGMPv3 Port-based VLAN (private port/private VLAN)
  • Page 4 Features / Standards and Protocols (cont.) RFC 2613 – SMON MIB RFC 854 – Telnet RFC 2618 – RADIUS Authentication Client MIB RFC 951 – BootP RFC 2620 – RADIUS Accounting Client MIB RFC 1157 – SNMP RFC 2668 – Managed Object Definitions for 802.3 MAUs RFC 1901 –...
  • Page 5 Switch Model Specifications B5G124-24 B5G124-24P2 B5G124-48 B5G124-48P2 Performance Throughput Capacity wire- 35.7 Mpps / 285.7 Mpps 35.7 Mpps / 285.7 Mpps 71.4 Mpps / 571.4 Mpps 71.4 Mpps / 571.4 Mpps speed Mpps (switch / stack) Switching Capacity 48 Gbps (35.7 Mpps)/ 48 Gbps (35.7 Mpps)/ 96 Gbps (71.4 Mpps)/ 96 Gbps (71.4 Mpps)/...
  • Page 6 Switch Model Specifications B5G124-24 B5G124-24P2 B5G124-48 B5G124-48P2 Altitude Operating 10,000 ft (3,048 m) 10,000 ft (3,048 m) 10,000 ft (3,048 m) 10,000 ft (3,048 m) Non-operating 15,000 ft (4,572 m) 15,000 ft (4,572 m) 15,000 ft (4,572 m) 15,000 ft (4,572 m) Acoustics Front of switch 44.5 dB...
  • Page 7 Switch Model Specifications (cont.) B5K125-24 B5K125-24P2 B5K125-48 B5K125-48P2 Power Requirements Normal Input Voltage 100 - 240 VAC 100 - 240 VAC 100 - 240 VAC 100 - 240 VAC Input Frequency 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 –...
  • Page 8 Redundant Power Supply Equipment Specifications STK-RPS-150CH2 POWER Net Weight (Unit Only) Net Weight (Unit Only) SHELF 1.75 kg (3.85 lbs) 3.47 kg (7.63 lb) Gross Weight (Packaged Unit) Gross Weight (Packaged Unit) Power Supply Slots 3.20 kg (7.04 lbs) 4.95 kg (10.89 lb) MTBF MTBF Dimensions (H x W x D)*...
  • Page 9: Ordering Information
