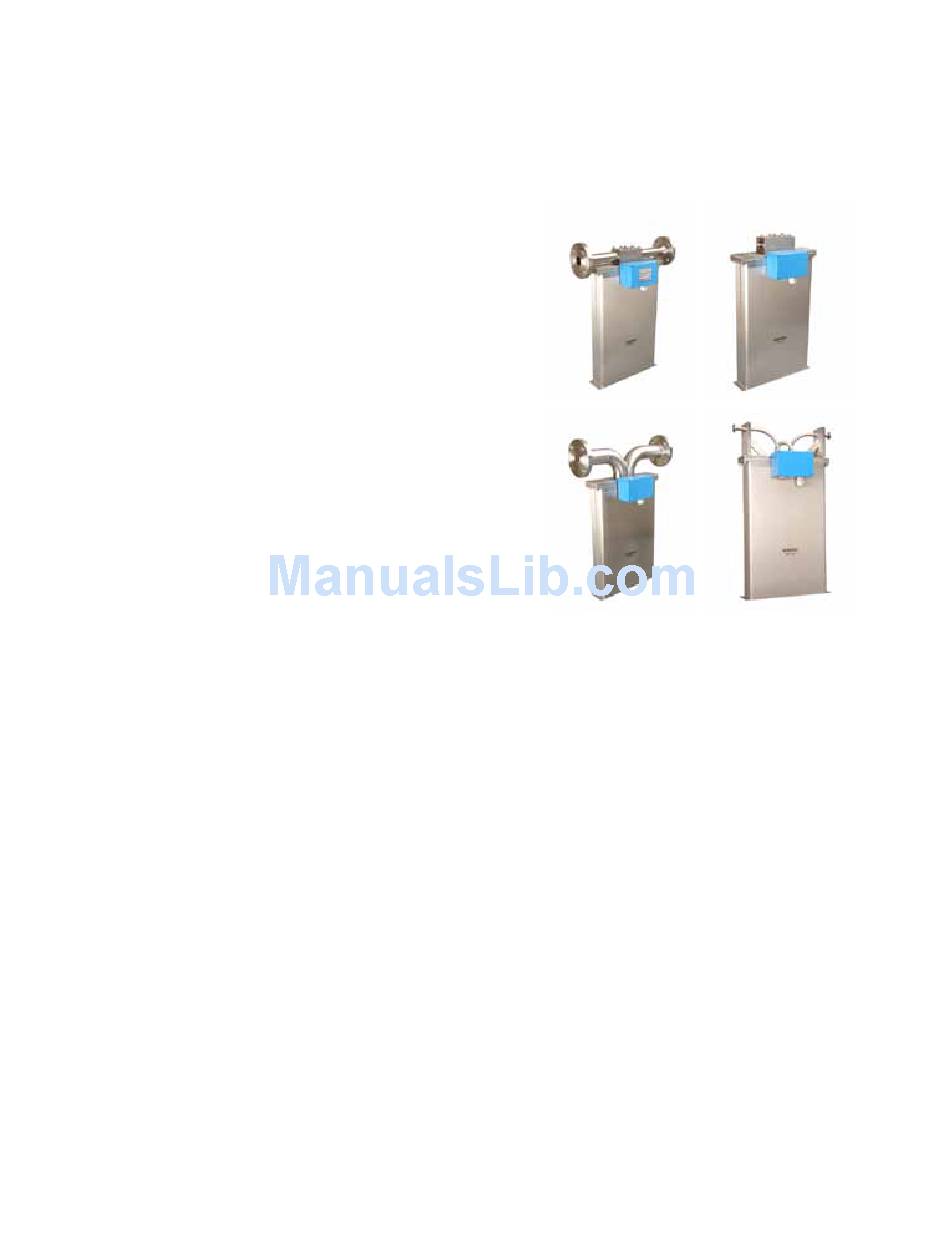

RHM 15
Medium Sized Coriolis
Mass Flowmeter
The RHM 15 can measure flow rates up to 200 kg/
min (440 lb/min) with temperatures in excess of
350°C and pressures up to 540 bar. This model
is truly a reliable solution, manufactured by GE's
Rheonik mass flowmeter experts.
Applications
Used in industry for flow measurement applications
requiring high mass flow accuracy.
• General control • Dosing
• Batching
• Injections
Features
• Suitable for pressure up to 540 bar
• Flow uncertainty down to 0.12%
• Density uncertainty down to 0.5%
• Repeatability better than 0.05%
• Unique torsion oscillator
• Typical measuring ranges from 2 to 200 kg/min
• Minimal flows as low as 1 kg/min
• Optimized solutions for batching operation
• Customization possible
• Hazardous Area Approvals (ATEX, CSA, ...)
g
• Mixing
• Filling
Advantages
• Torsion oscillator design assures most stable and
basically drift free measurement and increased
signal to noise ratio
• Not sensitive to changes in pressure
• Longest life time and increased safety (low stress
in welds and increased wall thickness against
abrasion)
• No moving parts, practically no maintenance
• Removable connection manifold available

Advertisement

loading

Related Manuals for GE RHM 15

Summary of Contents for GE RHM 15

  • Page 1 RHM 15 Medium Sized Coriolis Mass Flowmeter The RHM 15 can measure flow rates up to 200 kg/ min (440 lb/min) with temperatures in excess of 350°C and pressures up to 540 bar. This model is truly a reliable solution, manufactured by GE’s Rheonik mass flowmeter experts.
  • Page 2 General Dimensions RHM 15 PM0/SM0/PH0 (parallel/serial, manifold construction) Process Connection Face to face length (L) Order Code Standard Female Thread G 3/4" 4.72 Female Thread 3/4" NPT 4.72 Type removable manifold with PTFE seals and thread connection Process Connection Face to face length (L)
  • Page 3 General Dimensions RHM 15 PF0 (parallel, sealless construction with flange connection) Process Connection Face to face length (L) Order Code Standard Flange DIN DN40/PN40 15.75 Flange DIN DN40/PN100 15.75 Flange ANSI 1 1/2" 150# RF/SF 15.75 Flange ANSI 1 1/2" 300# RF/SF 15.75...
  • Page 4 General Dimensions RHM 15 SF0 (serial, sealless construction without dead spaces) Process Connection Face to face length (L) Order Code Standard Sanitary 1" Triclamp, 13.78 DIN 32676 Sanitary NW20, DIN 11851 13.78 Type single path, welded measuring loops without seals and sanitary connection...
  • Page 5 Pressure Rating RHM 15 The maximum pressure (pmax) of a sensor is determined by its weakest part. The weakest part can be the measuring loops (pmax indicated below) or the construction type (pmax indicated in the Basic Order Code section, last page) or the selected flanges / fittings (for pmax please see respective standard).
  • Page 6 Performance RHM 15 Max Flow Rate Qmax = 200 kg/min (441 lb/min), Qnom (*) = 150 kg/min (331 lb/min) Uncertainty % DP (bar) Standard Models Flow Rate Uncertainty kg/min lb/min in % of reading 0.20 0.20 0.20 0.20 0.50 Flow Rate kg/min...
  • Page 7 RHM 15 Specifications Temperature Range • NT Models from -20 to +120°C (-4 to +248°F) • ET Models from -45 to +120°C (-49 to +248°F) • ET2 Models from -45 to +210°C (-49 to +410°F) • ET1 Models from -196 to +50°C (-320 to +122°F) •...
  • Page 8 920-498A © 2013 General Electric Company. All Rights Reserved. Specifications are subject to change without notice. GE is a registered trademark of General Electric Company. Other company or product names mentioned in this document may be trademarks or registered trademarks of their respective companies, which are not affiliated with GE.
