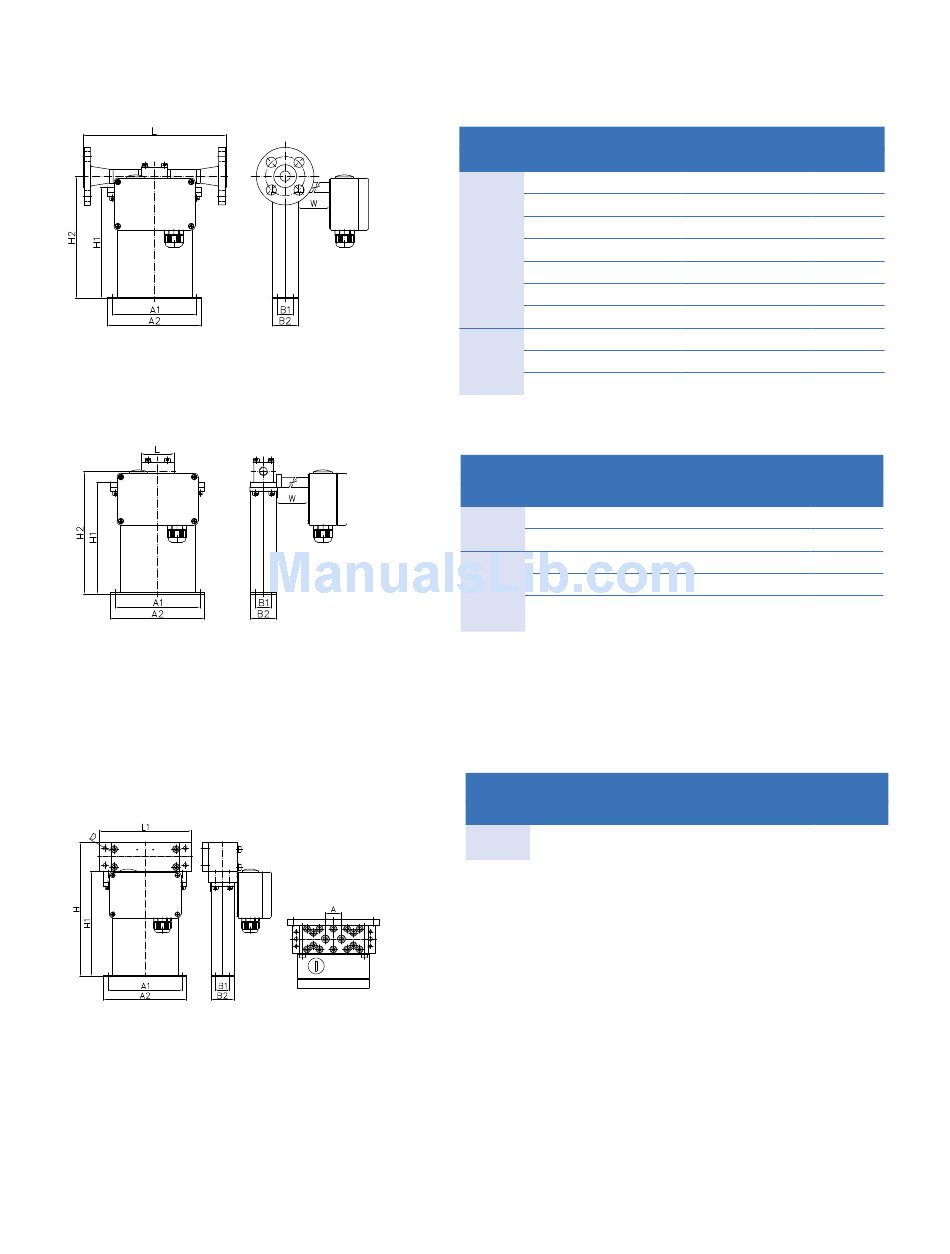

General Dimensions RHM 03
PM0/SM0 (parallel/serial, manifold construction)
Type removable manifold with PTFE seals and thread connection
H1 = 173 mm (6.79 in)
H2 = 189 mm (7.44 in)
PM0/SM0/PH0/SH0 (parallel/serial, manifold construction
with thread connection)
Type removable manifold with PTFE seals and flange connection
PM0/SM0
H1 = 173 mm (6.79 in)
H2 = 189 mm (7.44 in)
PH0/SH0 (high pressure manifold construction)
H1 = 184 mm (7.24in)
H2 = 204 mm (8.03 in)
PHH(parallel, very high pressure manifold construction)
Type parallel, very high pressure manifold with PTFE seals and thread connection (orientation upwards)
H1 = 184 mm (7.24 in)
A = 28 mm (1.10 in)
D = 6.5 mm (0.26 in)
L1 = 160 mm (6.30 in)
A1 = 130 mm (5.12 in)
A2 = 145 mm (5.71 in)
For weights and packaging dimensions please see last page of this section.
2
B1 = 25 mm (0.98 in)
B2 = 40 mm (1.57 in)
Process Connection
Standard
Flange DIN DN15/PN40
Flange DIN DN15/PN100
Flange ANSI ½" 150# RF/SF
Flange ANSI ½" 300# RF/SF
Flange ANSI ½'' 600# RF/SF
Flange ANSI ½" 1500# RF/SF
Flange ANSI ½'' 1500# RTJ
Optional
Flange DIN DN15/PN160
Flange JIS RF 10k 15A (1/2")
Flange JIS RF 20k 15A (1/2")
Process Connection
PM0/SM0
Female Thread G ¼"
Standard
Female Thread ¼" NPT
PH0/SH0
Female Thread G ¼"
Standard
Female Thread ¼" NPT
Autoclave 3/8" MP (9/16-18
UNF female thread)
Process Connection
Standard
Autoclave 3/8" MP (9/16-18
UNF female thread)
Terminal box (without cable gland) 125 x 80 x 58 mm (4.92 x 3.15 x 2.28 in)
W = 0 mm for Temperature Range T1 and TA
W = 100 mm (3.94 in) for Temperature Range T2
Face to face length (L)
Order Code
mm
in
220
8.66
D1
220
8.66
D2
220
8.66
A1
220
8.66
A2
220
8.66
A3
300
11.81
A6
300
11.81
R1
220
8.66
D3
220
8.66
J1
220
8.66
J2
Face to face length (L)
Order Code
mm
in
50
1.97
G1
50
1.97
N1
70
2.76
G1
70
2.76
N1
70
2.76
P2
Overall Height (H)
Order Code
mm
in
234
9.21
P2
