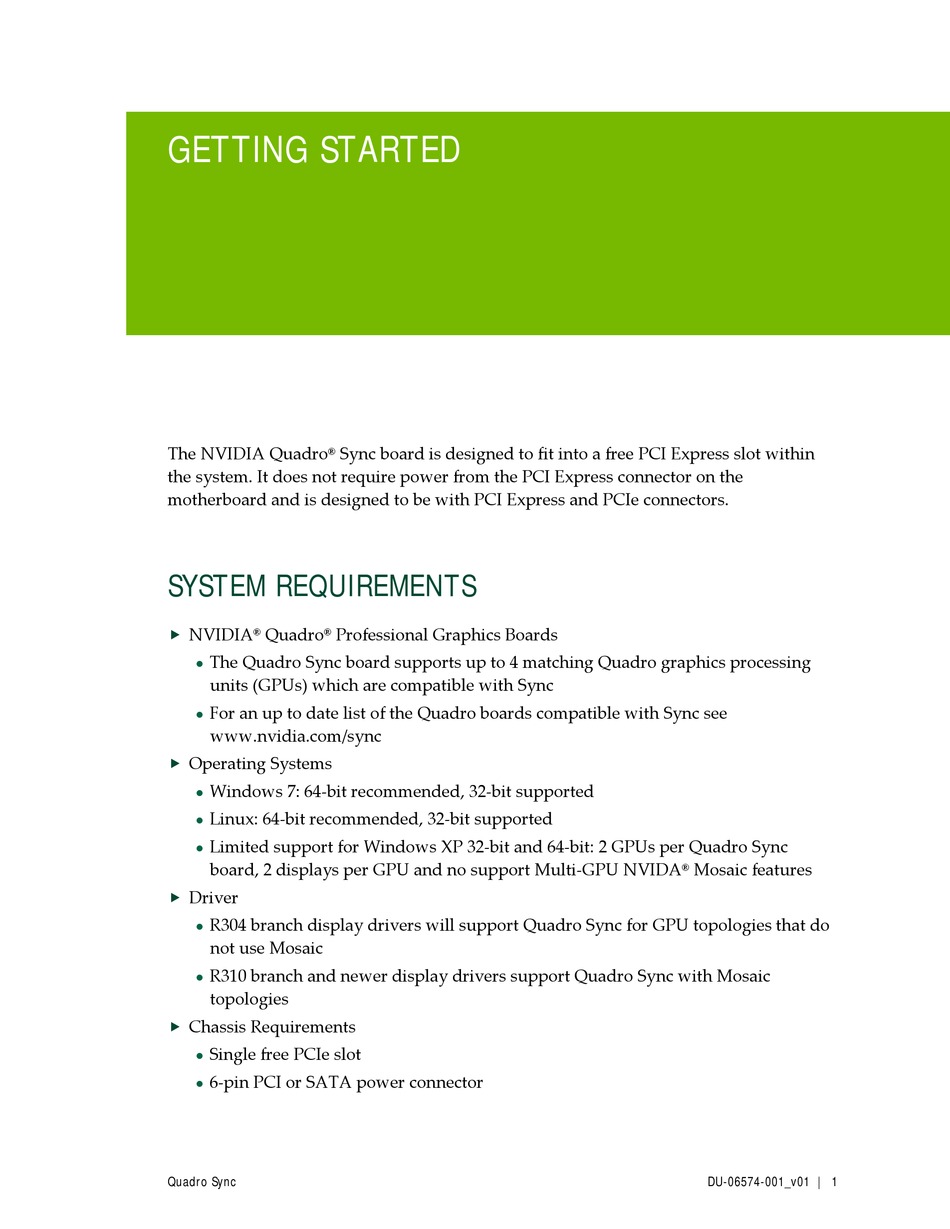

GETTING STARTED
The NVIDIA Quadro
Sync board is designed to fit into a free PCI Express slot within
®
the system. It does not require power from the PCI Express connector on the
motherboard and is designed to be with PCI Express and PCIe connectors.
SYSTEM REQUIREMENTS
NVIDIA
Quadro
Professional Graphics Boards
®
®
The Quadro Sync board supports up to 4 matching Quadro graphics processing
●
units (GPUs) which are compatible with Sync
For an up to date list of the Quadro boards compatible with Sync see
●
www.nvidia.com/sync
Operating Systems
Windows 7: 64-bit recommended, 32-bit supported
●
Linux: 64-bit recommended, 32-bit supported
●
Limited support for Windows XP 32-bit and 64-bit: 2 GPUs per Quadro Sync
●
board, 2 displays per GPU and no support Multi-GPU NVIDA
Driver
R304 branch display drivers will support Quadro Sync for GPU topologies that do
●
not use Mosaic
R310 branch and newer display drivers support Quadro Sync with Mosaic
●
topologies
Chassis Requirements
Single free PCIe slot
●
6-pin PCI or SATA power connector
●
Quadro Sync
Mosaic features
®
DU-06574-001_v01 | 1
