Figure 7. Frame Lock And Stereo Sync Status Leds - Nvidia QUADRO SYNC User Manual

GPU 1
GPU 0

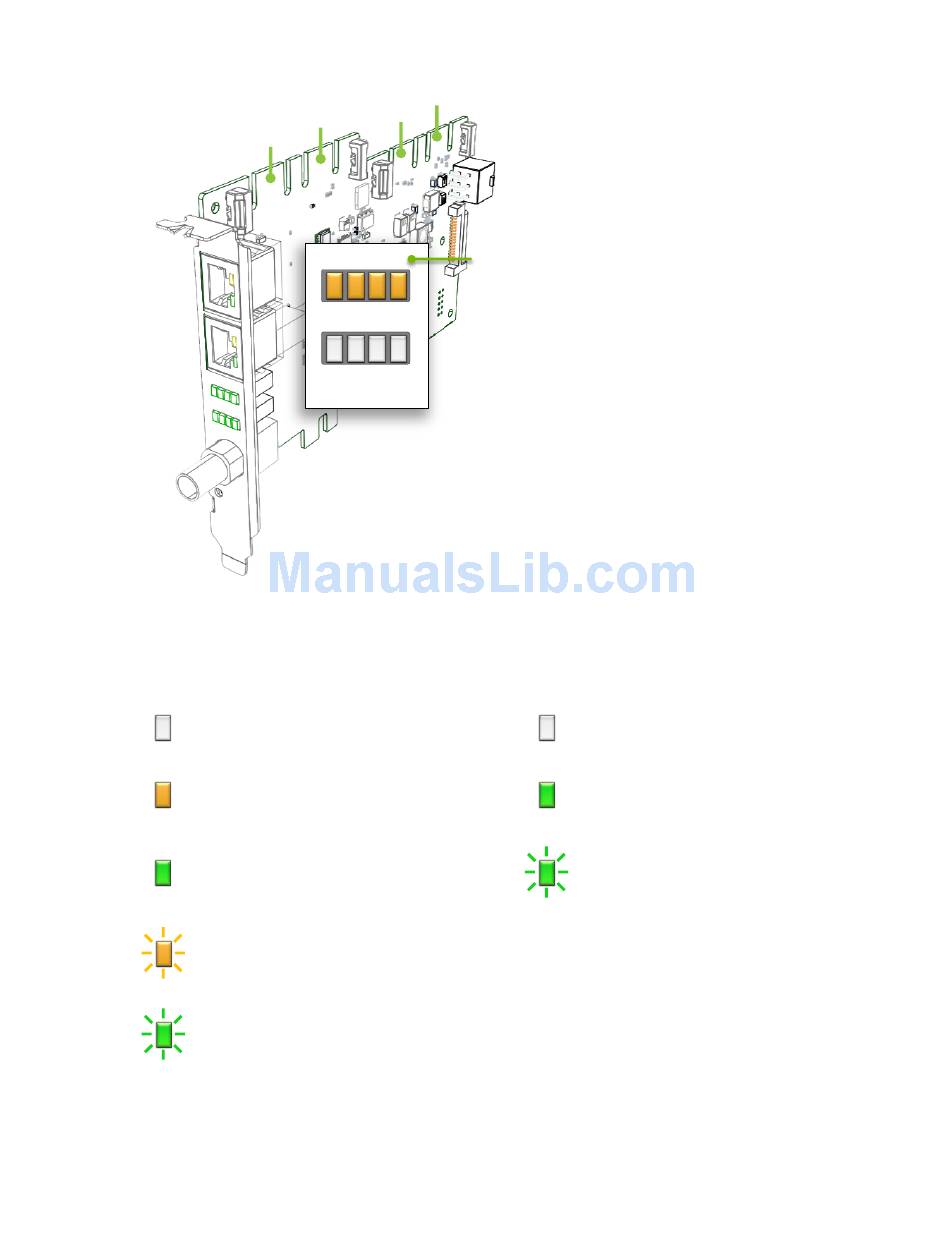

Figure 7. Frame Lock and Stereo Sync Status LEDs
SYNC LED Status
GPU Not connected
GPU present but not
synchronized
GPU synchronized
GPU is synchronized but within
5% of the threshold of losing sync
GPU is synchronizing
Quadro Sync
GPU 3
GPU 2
GPU #
3 2 1 0
SYNC
STEREO
Monitoring Display Synchronization
STEREO LED Status
Stereo not active/no GPU
Stereo locked
Stereo in process of locking
