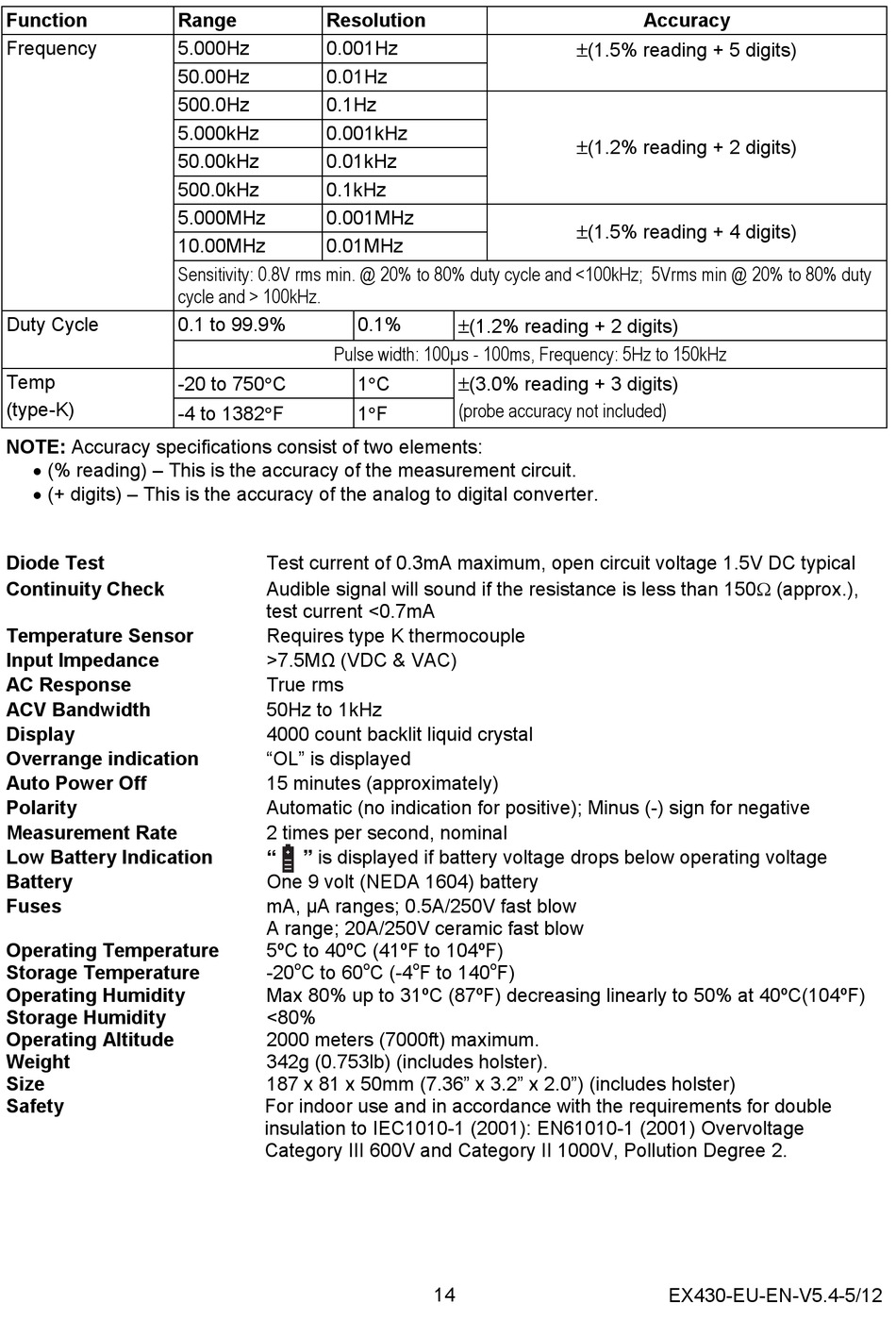

Extech Instruments 430 User Manual page 14

Function
Frequency
Duty Cycle
Temp
(type-K)
NOTE: Accuracy specifications consist of two elements:
 (% reading) – This is the accuracy of the measurement circuit.
 (+ digits) – This is the accuracy of the analog to digital converter.
Diode Test
Continuity Check
Temperature Sensor
Input Impedance
AC Response
ACV Bandwidth
Display
Overrange indication
Auto Power Off
Polarity
Measurement Rate
Low Battery Indication
Battery
Fuses
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Operating Altitude
Weight
Size
Safety
Range Resolution
5.000Hz 0.001Hz
50.00Hz 0.01Hz
500.0Hz 0.1Hz
5.000kHz 0.001kHz
50.00kHz 0.01kHz
500.0kHz 0.1kHz
5.000MHz 0.001MHz
10.00MHz 0.01MHz
Sensitivity: 0.8V rms min. @ 20% to 80% duty cycle and <100kHz; 5Vrms min @ 20% to 80% duty
cycle and > 100kHz.
0.1 to 99.9%
Pulse width: 100µs - 100ms, Frequency: 5Hz to 150kHz
-20 to 750C
-4 to 1382F
Test current of 0.3mA maximum, open circuit voltage 1.5V DC typical
Audible signal will sound if the resistance is less than 150 (approx.),
test current <0.7mA
Requires type K thermocouple
>7.5MΩ (VDC & VAC)
True rms
50Hz to 1kHz
4000 count backlit liquid crystal
"OL" is displayed
15 minutes (approximately)
Automatic (no indication for positive); Minus (-) sign for negative
2 times per second, nominal
" " is displayed if battery voltage drops below operating voltage
One 9 volt (NEDA 1604) battery
mA, µA ranges; 0.5A/250V fast blow
A range; 20A/250V ceramic fast blow
5ºC to 40ºC (41ºF to 104ºF)
o
-20 C to 60
Max 80% up to 31ºC (87ºF) decreasing linearly to 50% at 40ºC(104ºF)
<80%
2000 meters (7000ft) maximum.
342g (0.753lb) (includes holster).
187 x 81 x 50mm (7.36" x 3.2" x 2.0") (includes holster)
For indoor use and in accordance with the requirements for double
insulation to IEC1010-1 (2001): EN61010-1 (2001) Overvoltage
Category III 600V and Category II 1000V, Pollution Degree 2.
0.1% (1.2% reading + 2 digits)
(3.0% reading + 3 digits)
1C
(probe accuracy not included)
1F
o o o
C (-4 F to 140 F)
14
Accuracy
(1.5% reading + 5 digits)
(1.2% reading + 2 digits)
(1.5% reading + 4 digits)
