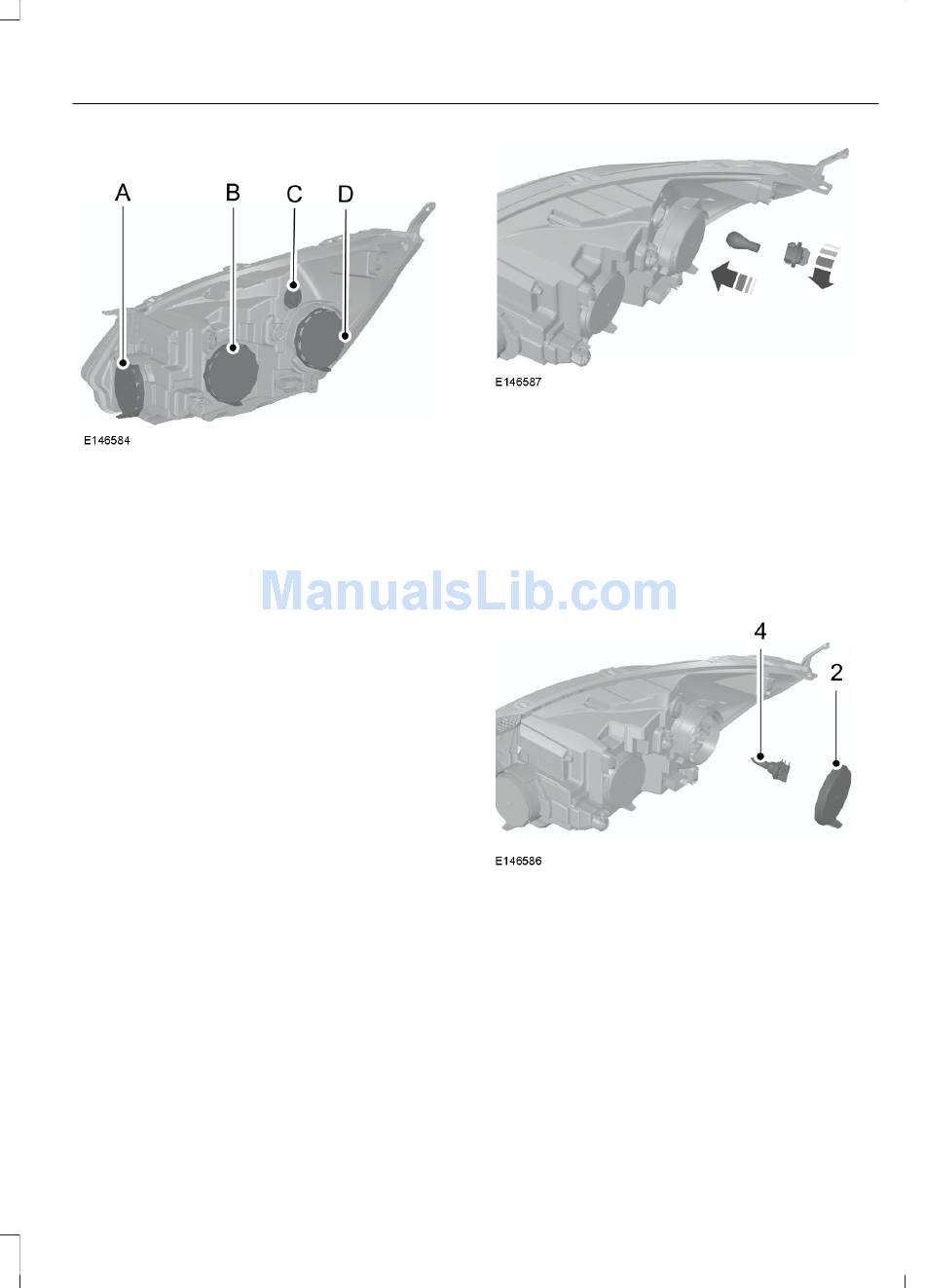

Headlamp
A Cornering lamp
B Headlamp main beam
C Direction indicator
D Headlamp dipped beam and
side lamp
Note: Remove the covers to gain access to
the bulbs.
Side Lamp
1. Remove the headlamp. See
Removing a Headlamp (page 147).
2. Remove the cover.
3. Remove the bulb holder by pulling it
straight out. Remove the bulb.
Direction Indicator
1. Remove the headlamp. See
Removing a Headlamp (page 147).
Transit Custom (TTF) Vehicles Built From: 14-01-2013
Maintenance
2. Turn the bulb holder anticlockwise and
remove it.
3. Gently press the bulb into the bulb
holder, turn it anticlockwise and
remove it.
Headlamp Dipped Beam
1. Remove the headlamp. See
Removing a Headlamp (page 147).
2. Remove the cover.
3. Disconnect the electrical connector.
4. Release the clip and remove the bulb.
Note: Do not touch the glass of the bulb.
Headlamp Main Beam
1. Remove the headlamp. See
Removing a Headlamp (page 147).
