Summary of Contents for 3M MP300

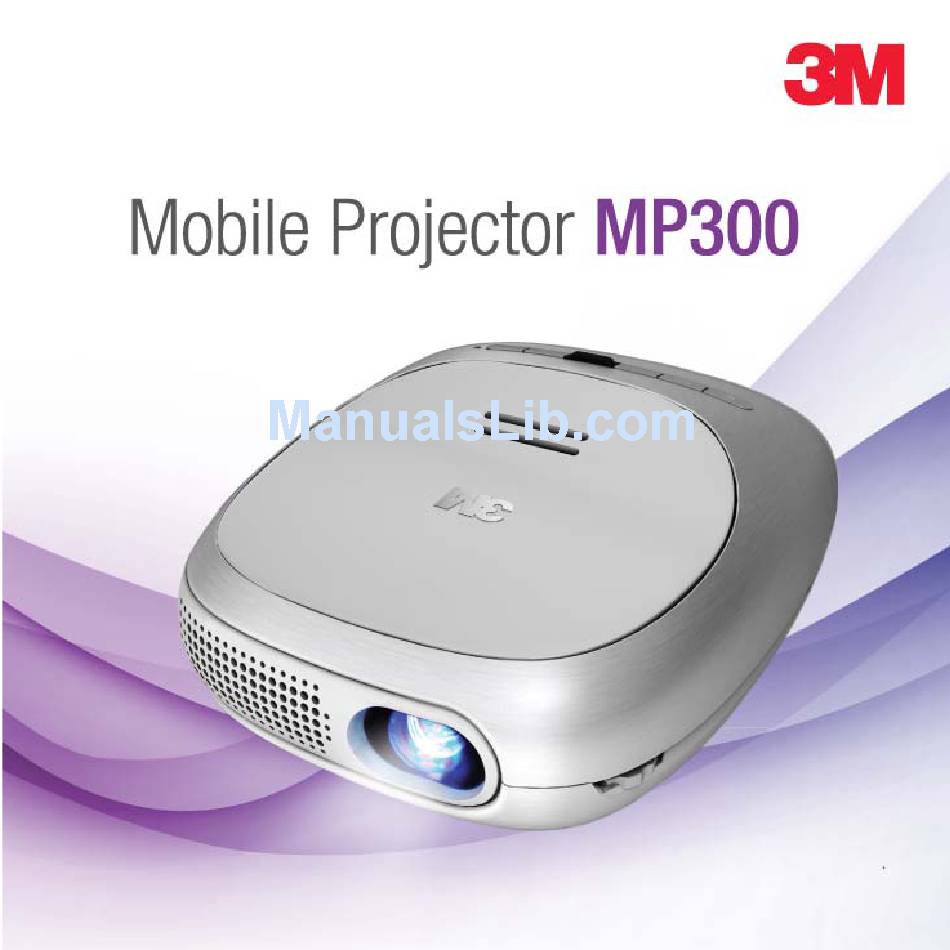

  • Page 1 User Manual...
  • Page 2 3M™ Mobile Projector MP300 © 2012 3M. All Rights Reserved.

  • Page 3: Important Notice

    Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly set forth in a written agreement signed by an authorized officer of 3M.
  • Page 4 3M™ Mobile Projector MP300 Copyright, Trademarks and Properties Notices 3M and the 3M logo are trademarks of 3M Company. Used under license in Canada. MHL and the MHL logo are a trademark, registered trademark or service mark of MHL, LLC in the United States and/or other countries.

  • Page 5: Intended Use Statement

    3M™ Mobile Projector MP300 Intended Use Statement The 3M™ Mobile Projector MP300 is designed to operate with the 3M Power Adapter and an HDMI® or MHL™ enabled device in environments that meet these conditions. • 0° to 35°C (32° to 95°F) •...
  • Page 6 Do not use the product in water or a damp environment. • Do not use a damaged product, cables or power adapter. • Charge with 3M power adapter only. • Do not dispose of the remote control battery by incineration or fire. To reduce the risks associated with driver distraction: •...
  • Page 7 Position the cables so that they are not a tripping hazard. To reduce the risk of muscle strain which if not avoided may cause minor or moderate injury: • Do not mount or position the projector in awkward viewing positions. SAVE THESE INSTRUCTIONS © 2012 3M. All Rights Reserved.

  • Page 8: Product Features

    3M™ Mobile Projector MP300 Introduction Thank You This product has been produced in accordance with 3M quality and safety standards to provide smooth and trouble-free use in the years to come. For optimum performance, please follow the operating instructions carefully.

  • Page 9: Package Contents

    3M™ Mobile Projector MP300 Package Contents The 3M™ Mobile Projector MP300 comes with the following items. If you are missing any of these items please contact 3M. 1 3M Mobile Projector MP300 2 HDMI Cable 3 Power Adapter 4 Outlet Adapters (4)

  • Page 10: Parts Of Projector

    3 Air Vent - Do not block the air vents while projector is operating or cooling down. This will cause projector to overheat and automatically turn off. 4 Projection Lens 5 Focus Wheel - Adjusts the image sharpness   © 2012 3M. All Rights Reserved.
  • Page 11 Air Vents - Do not block fans or vents while projector is operating or cooling down. This will cause projector to overheat and automatically turn off. DC Input - Powers the projector or charges the battery using the 3M power supply. Audio Output – Allows you use earphones or external speakers instead of the built-in speaker.
  • Page 12 Volume Up Button - Turns up speaker or audio out output. Up and Right Arrow for projector menu system. Information Button – Opens the projector information window. Remote Control Receiver - Accepts commands from 3M remote control. Menu Button – Opens the projector menu Power Button - Powers the projector on and off.
  • Page 13 13 Volume Up – Increases the audio volume. 14 Info Button – Opens the projector information window and is the select button when the projector menu is open. 15 Options – View more options on the MHL-enabled device. © 2012 3M. All Rights Reserved.

  • Page 14: Getting Started

    2 Remove the blank outlet adapter by sliding up. 3 Select the outlet adapter that will plug into your wall outlet and align to the power adapter. 4 Slide the outlet adapter down until it clicks into place. © 2012 3M. All Rights Reserved.

  • Page 15: Charging The Battery

    3M™ Mobile Projector MP300 Charging the Battery The rechargeable battery in 3M Mobile Projector MP300 gives you up to three hours of battery life while in ECO lamp mode. When the battery needs to be charged, the status indicator LED starts flashing red. The battery should be fully charged before using the projector for the first time.

  • Page 16: Turning On And Off The Projector

    Turning the Lamp On and Off: You can turn the projector's lamp off without turning the projector off by pressing the lamp button on the remote control. The projector lamp will turn off immediately while the cooling fans continue to run. © 2012 3M. All Rights Reserved.

  • Page 17: Status Indicator Lights

    Status Indicator Light Meaning Solid amber The projector is charging. Solid green The projector is on. Flashing green The projector is finished charging. Flashing amber The projector has overheated. Flashing red The battery power is low. © 2012 3M. All Rights Reserved.

  • Page 18: Setting Up The Projector

    You can either point the projector at a wall or projector screen or a ceiling. Placing the projector Place the projector on a stable surface. You can place the projector on its foot or on the rear cover. You can even attach the projector to a tripod.   © 2012 3M. All Rights Reserved.
  • Page 19 3M™ Mobile Projector MP300 Attaching the Projector to Tripod (Optional Accessory) On the bottom of the projector, you will find a tripod socket (1/4"-20) that fits most standard camera tripods, including the optional 3M tripod (78-6972-0073-7).     © 2012 3M. All Rights Reserved.
  • Page 20 3M™ Mobile Projector MP300 Distance versus Image Size The 3M Mobile Projector can project an image from 10 inches (22.1 cm) to 80 inches (265.7 cm) diagonal. As you increase the size of the projected image, you will need to decrease (darken) the ambient room lighting.

  • Page 21: Adjusting The Focus

    Using the Projector Keypad: Press the menu button; press the Info button; press the volume down to decrease the brightness and volume up to increase the brightness. You can exit the menu by pressing the menu button twice. © 2012 3M. All Rights Reserved.

  • Page 22: Adjusting Contrast

    Using the Projector Keypad: Press the menu button; press the Info button; press the volume down to decrease the brightness and volume up to increase the brightness. You can exit the menu by pressing the menu button twice.   © 2012 3M. All Rights Reserved.

  • Page 23: Volume Up/Down

    Mute the Sound: Press the volume up and down on the projector at the same time or press the mute button on the remote control.   © 2012 3M. All Rights Reserved.

  • Page 24: Remote Control

    3M™ Mobile Projector MP300 Remote Control The 3M remote control controls the projector, or any MHL enabled device plugged into the projector. Remove Protective Film Before you can begin using the remote control, you must remove the protective film from the battery compartment. Remove the film as shown below.

  • Page 25: Replacing The Battery In The Remote Control

      2. Place the new battery into the tray and orientating the battery positive size (+) as indicated on the tray. 3. Finally, slide the tray into the remote control.   © 2012 3M. All Rights Reserved.

  • Page 26: Connecting To Other Devices

    3M™ Mobile Projector MP300 Connecting to other devices The 3M Mobile Projector connects to other digital video devices such as tablets, computers, smartphones, and dvd players. Compatible device will most likely have one of the following video output connector: Description...

  • Page 27: Connecting To The Projector

    The HDMI/MHL port on the projector can accept a standard HDMI connector. Once you plug the cable into the port, you can close the cover. 1. Open Cover D C in   2. Plug in HDMI cable   © 2012 3M. All Rights Reserved.
  • Page 28 3M™ Mobile Projector MP300 3. Route the cable and close the cover   © 2012 3M. All Rights Reserved.
  • Page 29 3M™ Mobile Projector MP300 Connecting to a MHL Device The 3M Mobile Projector supports MHL through the HDMI port. While playing video and audio from your MHL compatible device, the 3M Mobile Projector charges your device. Additionally, you can control your device using the projector's remote control. The standard MHL cable has a microUSB connector on one end and a HDMI connector on the other.
  • Page 30 3M™ Mobile Projector MP300 Connecting to a HDMI Video Device The 3M Mobile Projector can playback video and audio from a device with HDMI output. 1 Connect the HDMI end of the cable to the projector’s HDMI/MHL input. 2 Connect the other end of the cable to the video device’s audio and video outputs.
  • Page 31 3M™ Mobile Projector MP300 Connecting to a Display Port® Video Device The 3M Mobile Projector can play video and audio from your Display Port compatible device. You will need a Display Port to HDMI Adapter or cable. 1 Connect DisplayPort to HDMI adapter into device.
  • Page 32 Adjusts the bright levels of the image. Lamp Power Switches between standard and eco mode. Eco mode extends the battery life by reducing the power and brightness of the lamp. - Eco - Normal (Default) Image Changes the image orientation © 2012 3M. All Rights Reserved.

  • Page 33: Using The Menu

    Projector Control Panel: Press the Volume Up and Down to move the selector. • Remote Control: Press the up or down arrows Adjust Menu Item: • Projector Control Panel: Press the Info button and press Volume Up and Down to adjust the setting. © 2012 3M. All Rights Reserved.

  • Page 34: On-Screen Icons

    Press the Info button on the remote or projector to open the information screen. The information shows you the if the sound is muted or not, the lamp power level and battery power level. © 2012 3M. All Rights Reserved.

  • Page 35: Reset Button

    1 Turn off the projector and disconnect power and other cables. 2 Use a soft cloth, such as the 3M™ High Performance Cleaning Cloth, to wipe off dust. If the dust is difficult to remove, dampen the cloth with clean water and then wipe the projector clean.

  • Page 36: Troubleshooting

    There may be a dust cap on the end of the connector. Remove it before inserting connector into the projector. • When you insert the connector, make sure the connector orientated correctly. The cover hits the cable when I close the cover. © 2012 3M. All Rights Reserved.

  • Page 37: Turning The Projector On Or Off

    HDMI video cable. Do you see the 3M™ logo screen? If not, try turning off the projector and turning it on again. If you still do not see a 3M Logo screen while the status indicator is green, contact 3M for additional support.

  • Page 38: Focusing The Image

    Reduce the size of the image or move away from the image. The image is too dim. • Reduce the image size and/ or decrease (darken) the room lighting. © 2012 3M. All Rights Reserved.

  • Page 39: Adjusting The Volume

    Remove the plastic film that is in-between the battery and the remote control. • Replace the battery. The battery size is a CR 2025. • The remote control is out of range of the projector. The remote control's range is up to 20 feet. © 2012 3M. All Rights Reserved.
  • Page 40 3M™ Mobile Projector MP300 • Sunlight or lighting in the room can interfere with the projector's reception of the remote control's signal.   © 2012 3M. All Rights Reserved.

  • Page 41: Product Specification

    Operating Conditions Temperature 32 – 95°F (0-35°C) Range Humidity Range 10–80% RH without condensation Altitude Range Sea Level to 1,829 m (6000') Power Consumption 11.5 Watts (Standard Lamp Mode) 7.0 Watts (Eco Lamp Mode) © 2012 3M. All Rights Reserved.

  • Page 42: Battery Specification

    59.94/60 Hz 16:9 1440x1080i 50 Hz 16:9 Audio Support Audio Format: Linear PCM, Number of Channels: 2 Sampling Frequency: 32, 44.1, and 48 kHz Number of Bits Per Sample: 16, 20 or 24 bits © 2012 3M. All Rights Reserved.

  • Page 43: Accessory List

    3M™ Mobile Projector MP300 Accessory List Call 1-866-831-1656 to order 3M accessories. © 2012 3M. All Rights Reserved.

  • Page 44: Limited Warranty

    3M™ Mobile Projector MP300 Limited Warranty The 3M™ Mobile Projector MP300 (the “3M Product”) is warranted to be free from defects in material or manufacture for a period of 90 days from the date or purchase. If the product does not conform to the warranty within the warranty period, 3M’s exclusive obligation is to repair, replace or refund the purchase price of the non- conforming product.

  • Page 45: Regulatory Notices

    If the cables include a EMI ferrite core, attach the ferrite core end of the cable to the projector. Use the cables which are included with the projector or specified. © 2012 3M. All Rights Reserved.

  • Page 46: Weee Statement

    Without limiting the forgoing, substances in the product will not exceed the following maximum concentration values in any homogeneous material (“Restricted Values”): (a) 0.1% (by weight) for each of lead, mercury, © 2012 3M. All Rights Reserved.
  • Page 47 3M™ Mobile Projector MP300 hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. © 2012 3M. All Rights Reserved.
  • Page 48 3M™ Mobile Projector MP300 © 2012 3M. All Rights Reserved.
