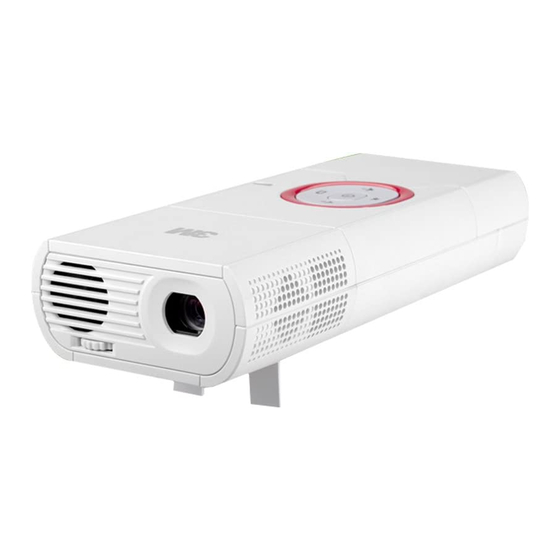

Summary of Contents for 3M MP225

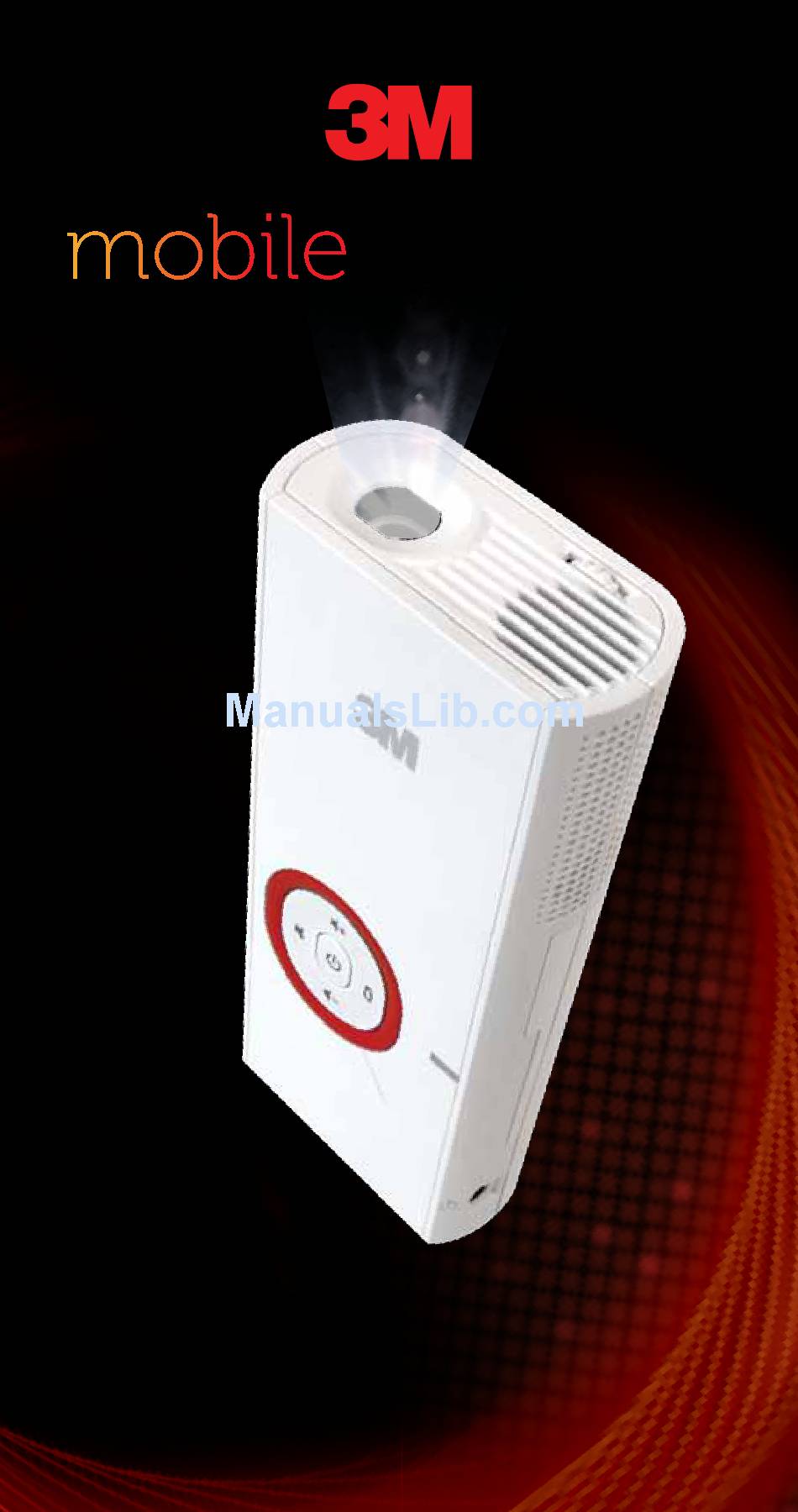

  • Page 1 projector operator's guide...
  • Page 2 Mobile Projector MP225 ™ © 2012 3M. All Rights Reserved.

  • Page 3: Table Of Contents

    Package Contents ................... 8 Parts ...................... 9 Getting Started ..................10 Making Connections ................14 Basic Operating Instructions ..............18 Cleaning the Projector ................22 Troubleshooting ..................23 Specifications ..................25 Limited Warranty ................... 27 © 2012 3M. All Rights Reserved.

  • Page 4: Intended Use Statement

    Mobile Projector MP225 ™ Intended Use Statement The 3M Mobile Projector MP225 is designed to operate with the 3M specified battery and 3M power adapter in normal office or home environments. • 0˚–35˚C (32˚–95˚F) • 10–80% RH (without condensation) •...
  • Page 5 ™ m Warning To reduce the risk associated with hazardous voltage: • Do not modify this product in any way. Use only 3M approved replacement components. • Do not attempt to service this projector other than battery replacement. There are no user-serviceable parts other than the battery. Service to be performed only by a 3M authorized service provider using 3M approved system components.
  • Page 6 • Do not immerse the battery in water or allow it to get wet. • Do not reverse the positive(+) and negative(-) terminals. • Do not connect the battery directly to a wall outlet. Use only the 3M specified wall charger or automobile charger.

  • Page 7: Safety Labels

    • Do not short-circuit the battery terminals. • Do not disassemble the battery. Charging Specification Standard Charge 12.3V/1.1A Cut Off Voltage Max Charge 12.3V/2.1A LED Light Output CLASS 1 LED IEC60825-1 :1993+A1 Maximum Radiant Power: PRODUCT :1997+A2:2001 1.693 mW © 2012 3M. All Rights Reserved.

  • Page 8: Package Contents

    Mobile Projector MP225 ™ Package Contents 3M Mobile Projector MP225 Rechargeable Battery Outlet Adapters (4) Power Adapter Product Warranty and Safety Guide Quick Start Guide AV Cable for Apple ® Devices © 2012 3M. All Rights Reserved.

  • Page 9: Parts

    Power Button Mute Button Volume Down Button Volume Up Button Battery Status Button Status Indicator Focus Wheel Lens Speaker Flip Stand Tripod Socket Battery Battery Latch Earphone jack VGA-A/V Input DC Power Input 15 16 © 2012 3M. All Rights Reserved.

  • Page 10: Getting Started

    Install Battery The 3M Mobile Projector MP225 comes with a rechargeable battery. The battery should be fully charged before using the projector with the battery. To install the battery: point the contacts on the battery toward the contacts on the projector, insert the end farthest from the battery latch first, then push down until the battery clicks into place.
  • Page 11 Power Adapter The power adapter is used to charge the battery or power the projector. There are four outlet adapters to give you the flexibility to power the 3M MP225 projector in most countries. Installing an Outlet Adapter onto the Power Adapter Select the outlet adapter that will plug into your wall outlet.
  • Page 12 Allow three hours to fully charge the battery. When charging is complete, the status indicator will turn off. 110–240 VAC 50/60 Hz Note: The battery status will not appear when the power adapter is connected to the projector. The power adapter icon will appear instead. © 2012 3M. All Rights Reserved.
  • Page 13 Do not store a fully discharged battery because it may lose the ability to be recharged. • Do not store a fully charged battery because it may lose the ability to be recharged to full power. © 2012 3M. All Rights Reserved.

  • Page 14: Making Connections

    Mobile Projector MP225 ™ Making Connections The 3M Mobile Projector MP225 will display informational icons depending on the input device and signal being detected. The 3M MP225 was designed to operate with the 3M VGA and AV cables only. Connecting to Apple Devices ®...

  • Page 15: Connecting To A Composite Video Device

    AV cable allows you to connect your video device to your TV monitor or your projector and may be purchased from the video device manufacturer. Once you have the AV cable, use the cable adapters to connect the video device cable and the projector cable. © 2012 3M. All Rights Reserved.

  • Page 16: Connecting To A Component Video Device

    ™ Connecting to a Component Video Device (Optional Accessory) For component video input, you must purchase the optional 3M MP225 Component AV Cable [3M part number 78-6972-0032-3]. This cable sends a higher quality video signal for the best possible image. Connect the component AV cable to the projector’s VGA-AV input.
  • Page 17 The projector supports VGA, SVGA, XGA, and WXGA resolutions. For best results, set the computer’s resolution to SVGA (800x600). Connect the VGA cable to the 3M Mobile Projector MP225. Connect the VGA cable to the computer’s video and audio outputs.

  • Page 18: Basic Operating Instructions

    Press and hold the power button for three seconds. Release the power button when the projected image is gone. The projector is off when the status indicator is off or solid amber. When the status indicator is solid amber, the battery is charging. © 2012 3M. All Rights Reserved.

  • Page 19: Status Indicator Light

    The projector detects computer input signal and displays the input resolution and refresh rate 800x600 60Hz The projector does not support the video signal. The projector is measuring and synchronizing to video input signal. © 2012 3M. All Rights Reserved.

  • Page 20: Adjusting Image Size

    Mobile Projector MP225 ™ Adjusting Image Size The 3M MP225 Projector can project a diagonal image of 10 to 80 inches (254–2032 mm). Refer to the chart for associated dimensions. Image Size Diagonal Width Height Distance 10 in (25.4 cm) 8 in (20.3 cm)

  • Page 21: Adjusting The Volume

    Checking the Battery Level To check the battery, press the Battery Status button. A battery bar will appear on the screen indicating the amount of charge currently in the battery. © 2012 3M. All Rights Reserved.

  • Page 22: Cleaning The Projector

    Attaching the Tripod (Optional Accessory) The table-top tripod (optional accessory) mounts to the bottom of the projector. Tip: The 3M MP225 Projector will attach to most camera tripods. Cleaning the Projector Turn off the projector and disconnect power and other cables.

  • Page 23: Troubleshooting

    12. The image is not visible or is very dim. • The 3M MP225 Projector is a battery-operated device and requires controlled lighting conditions. The image may appear very dim in brightly lit rooms. • Make sure the status indicator is green. This indicates that the projector is powered on and projecting an image.
  • Page 24 “AV cable” icon. See “On Screen Icons” on page 19. • The video output on some devices is turned off by default. Please refer to the device’s documentation for details on enabling the video output. © 2012 3M. All Rights Reserved.

  • Page 25: Specifications

    Weight ≤ 11.46 oz (≤ 325 g) Tripod Socket ¼" - 20 Operating Conditions Temperature 32 – 95°F (0-35°C) Range Humidity Range 10–80% RH without condensation Altitude Range Sea Level to 1,829 m (6000') © 2012 3M. All Rights Reserved.
  • Page 26 3M Part Number Power Adapter with US, EU, UK, AUS plugs 78-6972-0063-8 Lithium-Ion Battery 78-6972-0058-8 AV Video Cable 78-6972-0031-5 Optional VGA Cable 78-6972-0062-0 Optional Component AV cable 78-6972-0032-3 Optional 3M Adapter Cable for Apple 78-6972-0064-6 ® © 2012 3M. All Rights Reserved.

  • Page 27: Limited Warranty

    All replaced parts or products become property of 3M. If the product is repaired, 3M will repair the defective part(s) with a new or used part(s). If the 3M product is replaced, 3M will replace the 3M product with the same or equivalent model and with a new or refurbished 3M product.
  • Page 28 This warranty does not cover consumables (e.g., batteries). This warranty is not transferable. 3M is not responsible for warranty service should the 3M label or logo or the rating label or serial number be removed unless otherwise stated in writing for the purposes of private labeling for partnership requirements.
  • Page 29 ™ • The exchanged 3M product or part may be new or previously refurbished to the 3M standard of quality, and at 3M’s option, the replacement may be another model of like kind and quality. • 3M’s liability for replacement of the warranted 3M product or part will not exceed the original retail selling price of the 3M product.

  • Page 30: Weee Statement

    RoHS, as amended:(a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. This information represents 3M’s knowledge and belief, which may be based on information provided by third party suppliers to 3M.
  • Page 31 Mobile Projector MP225 ™ © 2012 3M. All Rights Reserved.
  • Page 32 3M is a trademark of 3M Company. Mobile Interactive Solutions 3M Austin Center 6801 River Place Blvd. Austin, TX 78726-9000 866-631-1656 © 3M 2012. All Rights Reserved. www.3MPocketProjector.com meetings@mmm.com 78-6971-1627-1...
