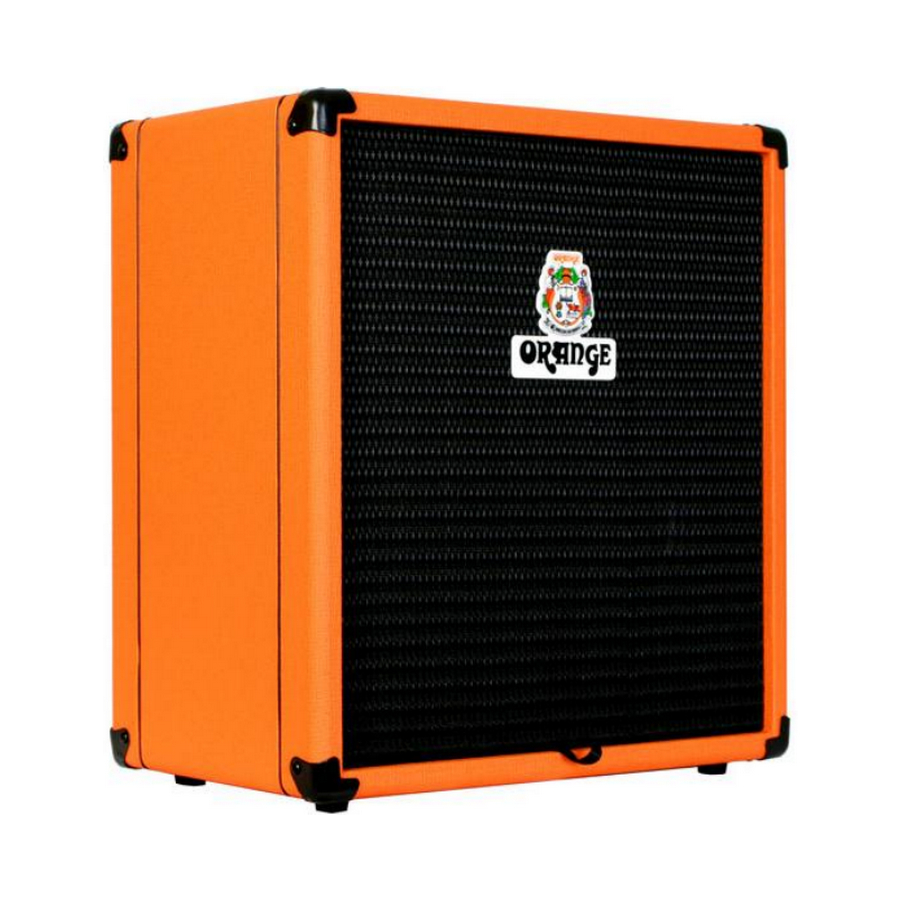

Page 2: Thank You
Our commitment to craftsmanship and quality control has allowed our amplifiers to stand the test of time, giving their owners as much pleasure now, as the day they were bought. To maintain this level of excellence, each Orange amplifier is put through many rigorous test procedures before leaving the factory. -
Page 3: Table Of Contents
CONTENTS CONTENTS ............................... 3 CONTACT DETAILS ........................... 4 IMPORTANT SAFETY INFORMATION ....................... 5 POWERING UP ............................7 REAR PANEL ............................11 USING YOUR AMPLIFIER ........................12 TECHNICAL SPECIFICATIONS ......................... 13 FREE EXTENDED WARRANTY OFFER ..................... 14... -
Page 4: Contact Details
CONTACT DETAILS Orange Amplifiers OMEC House 108 Ripon Way Borehamwood Hertfordshire WD6 2JA ENGLAND Tel: +44 20 8905 2828 Fax: +44 20 8905 2868 info@omec.com Orange USA 2065 Peachtree Industrial Ct. Suite 208 Atlanta, GA 30341 Tel: 1-404-303-8196 Fax: 1-404-303-7176... -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Terminals labelled as “Speaker Outputs”... - Page 6 • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades, one wider than the other.
- Page 7 This Orange Amplifier conforms to UL Standard 60065 for Audio, Video and Similar Electronic Apparatus - Safety Requirements; Certified to CAN/CSA-C22.2 No. 60065-03; IEC 60065 2001 + A1:2005 This device complies with part 15 of the FCC Rules. Operation is subject to the...
-
Page 8: Powering Up
POWERING UP IMPORTANT! To prevent serious damage be sure that the rated AC line voltage shown on the amplifier's rear panel agrees with the line voltage available from your AC inlet before connecting the AC power cord. -
Page 9: Top Panel
TOP PANEL NAME DESCRIPTION INPUT Plug your guitar into this input GAIN The gain control adjusts the gain When turning clockwise, a boost is achieved in both the bass and treble ranges, while the CONTOUR midrange is being slightly cut PRESENCE Adds higher frequencies to the guitar tone, creating crispness and bite TREBLE... - Page 10 PRE/POST SWITCH Switches ‘Direct Output’ between ‘Pre’ mode and ‘Post’ mode GND/LIFT SWITCH Switches ‘Direct Output’ between ‘Pre’ mode and ‘Post’ mode DIRECT OUT Signal for connection to external power amplifiers POWER INDICATOR LED indicates whether the power switch is ON or OFF RETURN For connection from the output of an external effects processor SEND...
-
Page 11: Rear Panel
REAR PANEL NAME DESCRIPTION AC MAIN POWER This switch turns the AC Main Power on/off SWITCH AC INLET & Connect the supplied standard 3-pin ‘IEC’ plug here FUSEHOLDER WARNING: This amplifier shall be connected to a mains socket outlet with a protective earthed connection. WARNING: Where the mains plug or appliance inlet is used as the disconnect device, the disconnect device shall remain readily operable. -
Page 12: Using Your Amplifier
USING YOUR AMPLIFIER Turn amplifier master Volume to "0" before turning amplifier ON or OFF. To prevent hum operate your amplifier and instruments as far away from fluorescent and neon lamps as possible, as they generate extremely high levels of electronic noise. -
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS CRUSH 100BXT 100 Watts RMS @ 1% THD 4 ohm OUTPUT POWER 2200VA POWER CONSUMPTION 100v, 120V, 230V-240V, 50/60Hz POWER REQUIREMENT Guitar and AUX INPUT 20x20, 8x13.7 inch DIMENSIONS (W) x (H) x (D) 510x530x350 mm Normal 40mV F=1Khz... -
Page 14: Free Extended Warranty Offer
90 days from the date of purchase. The warranty status of any Orange product is subject to its being used for its intended purpose in suitable conditions. As the manufacturer we reserve the right to refuse to warranty any Orange product which has been misused in any way whatsoever.
