Summary of Contents for ORANGE DARK TERROR

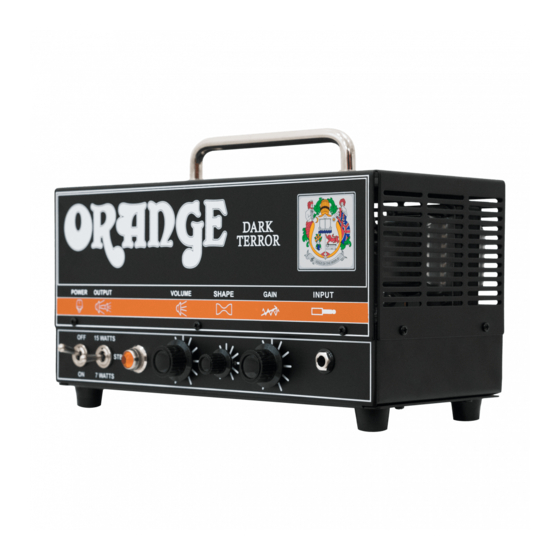

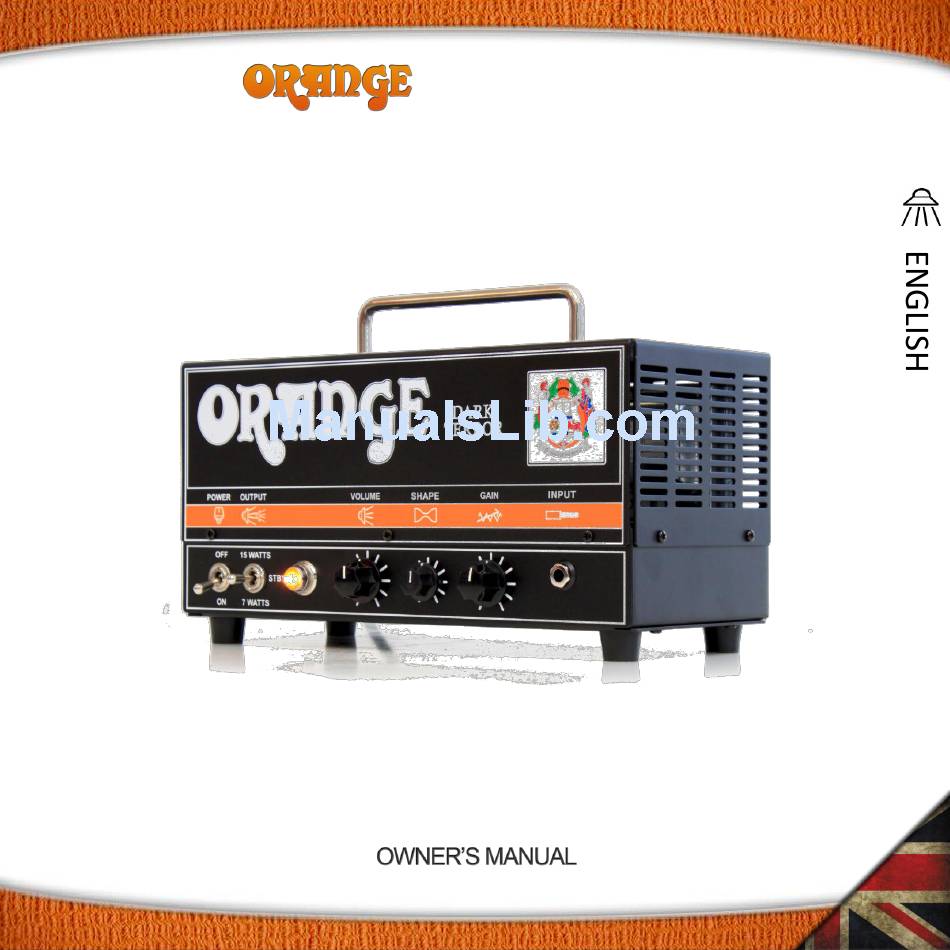

- Page 1 DARK TERROR...
-
Page 2: Thank You
To maintain this level of excellence, each Orange amplifier is put through many rigorous test procedures before leaving the factory. -
Page 3: Table Of Contents
DARK TERROR CONTENTS THANK YOU! ............................2 CONTENTS ............................... 3 CONTACT DETAILS ........................... 4 IMPORTANT SAFETY INFORMATION ....................... 5 POWERING UP ............................7 REAR PANEL ............................10 USING YOUR AMPLIFIER ........................10 USING THE TH30 ........................... 12 VALVES AND FUSES CAN FAIL AT ANY TIME! ..................15... -
Page 4: Contact Details
DARK TERROR CONTACT DETAILS Orange Amplifiers OMEC House 108 Ripon Way Borehamwood Hertfordshire WD6 2JA ENGLAND Tel: +44 20 8905 2828 Fax: +44 20 8905 2868 info@omec.com Orange USA 2065 Peachtree Industrial Ct. Suite 208 Atlanta, GA 30341 Tel: 1-404-303-8196 Fax: 1-404-303-7176 info@orangeusa.com... -
Page 5: Important Safety Information
DARK TERROR IMPORTANT SAFETY INFORMATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 6 DARK TERROR • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades, one wider than the other.
- Page 7 DARK TERROR This Orange Amplifier conforms to UL Standard 60065 for Audio, Video and Similar Electronic Apparatus - Safety Requirements; Certified to CAN/CSA-C22.2 No. 60065-03; IEC 60065 2001 + A1:2005 This device complies with part 15 of the FCC Rules. Operation is subject to the...
-
Page 8: Powering Up
DARK TERROR POWERING UP When powering up a valve amplifier, it must be switched to standby for at least four minutes before being switched to play. This gives the valves time to warm up and will prolong their life. Good quality standard instruments (shielded) and speaker (non-shielded) cables are essential to a prolonged and enjoyable relationship with your amp. -
Page 9: Front Panel
DARK TERROR FRONT PANEL NAME DESCRIPTION Power on the amplifier by switching to the on position. POWER SWITCH The output switch runs the valves at a low plate voltage in the HALF position and at a higher plate voltage in the FULL position. The middle position is the standby position. This switch should be in... -
Page 10: Rear Panel
DARK TERROR REAR PANEL NAME DESCRIPTION SPEAKER OUT See page 8 for the proper procedure for connecting your amplifier to speaker cabinets. EFFECTS LOOP See page 12 for the proper procedure for using the effects loop. (T250MA) Please contact a qualified service technician if this fuse fails! HT FUSE Connect only to rated input as indicated adjacent to mains plug. -
Page 11: Using Your Amplifier
Make sure that the HALF/STBY/FULL output switch is in the Standby (middle) position before switching the power switch to the ON position (this will maximise the life of your valves). If you are unsure about any of the above points please consult your local Orange supplier. - Page 12 DARK TERROR USING THE DARK TERROR Selecting Output The output switch (found next to the power switch on front of amplifier) runs the valves at a low plate voltage (reducing output power) in the HALF position and at a higher plate voltage (increasing output power) in the FULL position.
- Page 13 DARK TERROR Using Effects Loop The effects loop, send and return jack sockets are intended for use with outboard pedals or rack equipment such as delay, reverb and chorus etc. Effects such as wah wah, fuzz, distortion etc, would probably be best placed between the guitar and amplifier input! The effects loop is wired...
-
Page 14: Technical Specifications
DARK TERROR TECHNICAL SPECIFICATIONS AMPLIFIER 7/15 Watts RMS POWER Single Channel CHANNEL CONFIGURATION Volume / Shape / Gain DIRTY CHANNEL CONTROLS CLEAN CHANNEL CONTROLS FOOTSWITCH FUNCATION FX LOOP 2 x EL84 POWER VALVES 3 x 12AX7 PREAMP VALVE 1 x 12AT7... -
Page 15: Valves And Fuses Can Fail At Any Time
90 days from the date of purchase. The warranty status of any Orange product is subject to its being used for its intended purpose in suitable conditions. As the manufacturer we reserve the right to refuse to warranty any Orange product which has been misused in any way whatsoever.
