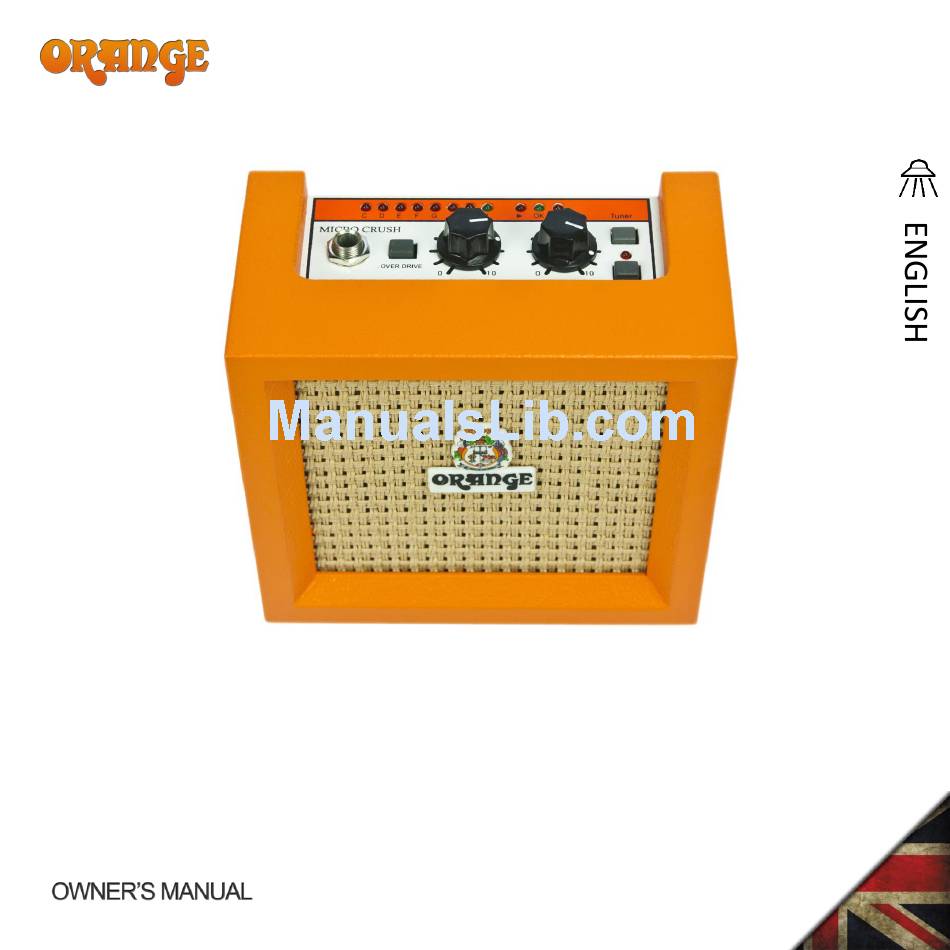

- Page 1 Crush Micro PiX...
-
Page 2: Thank You
To maintain this level of excellence, each Orange amplifier is put through many rigorous test procedures before leaving the factory. This booklet contains valuable technical and safety information Please take the time to read this manual as the information may enhance the sound and performance of your amplifier. - Page 3 IMPORTANT SAFETY INFORMATION ....................... 5 USING YOUR AMPLIFIER .......................... 8 FREE EXTENDED WARRANTY OFFER ..................... 11 The contents of this manual may be subject to change without notice. The latest version is available for download on the official Orange Amplification website: http://www.orangeamps.com/support/downloads/...
-
Page 4: Contact Details
Crush Micro PiX CONTACT DETAILS Orange Amplification OMEC House 108 Ripon Way Borehamwood Hertfordshire WD6 2JA ENGLAND Tel: +44 20 8905 2828 Fax: +44 20 8905 2868 info@omec.com Orange USA 2065 Peachtree Industrial Ct. Suite 208 Atlanta, GA 30341 Tel: 1-404-303-8196 Fax: 1-404-303-7176 info@orangeusa.com... -
Page 5: Important Safety Information
Crush Micro PiX IMPORTANT SAFETY INFORMATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 6 Crush Micro PiX • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades, one wider than the other.
- Page 7 Crush Micro PiX This device complies with the Canadian Interference Regulations CAN ICES-3(B)/NMB-3(B). This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. This device must accept any interference received, that may cause undesired operation.
-
Page 8: Using Your Amplifier
Crush Micro PiX USING YOUR AMPLIFIER 1. Input Jack: This also acts as the ON/OFF switch. A guitar lead must be connected here for the unit to function. This is to conserve battery life when not in use. 2. Overdrive: Depress this switch to activate the overdrive function. - Page 9 Crush Micro PiX 7. Tuner: To activate the tuner depress this button. 8. Tuner indicator LEDs: Play a note on your guitar. The appropriate red LED will illuminate on the display to indicate the note being played. If the green # LED also illuminates, this indicates a chromatic note, e.g.
- Page 10 Crush Micro PiX 9. DC in Jack: Use only an AC adaptor regulated 9V or 12V, 500mA and fitted with a “centre minus” plug. The use of an adaptor other than the specified type may damage the unit and pose a safety hazard.
- Page 11 Crush Micro PiX Turn amplifier volume to “0” before turning the amplifier ON or OFF. To prevent hum, operate your amplifier and instruments as far away from fluorescent and neon lamps as possible, as they generate extremely high levels of electronic noise.
-
Page 12: Free Extended Warranty Offer
90 days from the date of purchase. The warranty status of any Orange product is subject to its being used for its intended purpose in suitable conditions. As the manufacturer we reserve the right to refuse to warranty any Orange product which has been misused in any way whatsoever.
