- Page 1 MAXIMA 35 S MOUNTING GAS BOILER MIXED ONDENSING YSTEM OILER INSTRUCTIONS FOR USE, INSTALLATION AND MAINTENANCE G C N° 47-267-21...
-
Page 2: Declaration Of Conformity
“This record must be completed and left with the end user”. Ferroli is a member of the Benchmark initiative and fully supports the aims of the programme. Benchmark has been introduced to improve the standards of installation and commissioning of central heating systems in the UK and to encourage the regular servicing of all central heating systems to ensure safety and efficiency. -
Page 3: Table Of Contents
Maxima 35 S 1. OPERATING INSTRUCTIONS..............4 1.1 Introduction ......................4 1.2 Control panel ......................5 1.3 Turning ON and OFF ....................7 1.4 Adjustments ......................7 1.5 Maintenance......................7 1.6 Faults........................7 2. INSTALLATION ..................8 2.1 General Instructions....................8 2.2 Boiler location ......................9 2.3 Boiler water connections ..................10 2.4 Connection to the gas system ................12... -
Page 4: Operating Instructions

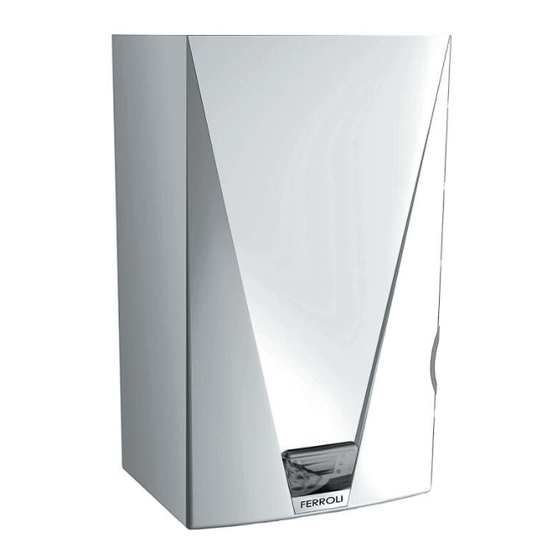

1.1 Introduction Dear Customer, Thank you for choosing Maxima 35 S, a FERROLI wall-mounted boiler of the latest generation, featuring advanced design and cutting-edge technology. Maxima 35 S is a high-efficiency condensing pre-mix appliance for heating with extremely low emissions, running on natural gas or LPG. -
Page 5: Control Panel
Maxima 35 S 1.2 Control panel 15 13 fig. 1 4 - Heating temperature adjustment control To increase the heating temperature, turn the knob clockwise; anticlockwise to decrease it. The adjustment range goes from 20 to 90°C (see page 7). - Page 6 Maxima 35 S 13 - Fan symbol This appears when there is a call for heating, and the fan is operating. 15 - Ignition symbol The ignition symbol appears during the ignition phase. 16 - Flame symbol Indicates the burner is on, the small rising bars to the right indicate the burner output 1=low, 5=high.
-
Page 7: Turning On And Off
For other faults, refer to page 27 section 3.4 “Troubleshooting.” Before calling the Ferroli service centre, check that the problem is not due to an installation error or a problem with the gas/electricity or low water pressure in the system. -
Page 8: Installation
Maxima 35 S 2. INSTALLATION 2.1 General Instructions This device must only be used for the purpose for which it is specially designed. This unit is designed to heat water to a temperature below boiling point and must be connected to a hea- ting system and/or a water supply system for domestic use, compatible with its performance, characteristics and its heating capacity. -
Page 9: Boiler Location
Maxima 35 S 2.2 Boiler location The unit’s combustion circuit is sealed off from the installation room. The installation room must be sufficiently well ventilated to prevent any dangerous conditions from forming in the event of even slight gas leakage. This safety standard is required by the EEC Directive no. 90/396 for all gas units, including those with a so-called sealed chamber. -
Page 10: Boiler Water Connections
Maxima 35 S 2.3 Boiler water connections The heating capacity of the unit should be previously established by calculating the building’s heat requirement according to current regulations. For good operation and long life of the boiler, the plum- bing system must be well proportioned and always complete with all those accessories that guarantee regular operation and running, room thermostat, trv’s and automatic bypass etc. - Page 11 Maxima 35 S The Isolation valve kits shown in fig. 4 are supplied as standard. A = Nut B = Compression olive D = 3/4 seal (green) F = 1/2 gas seal (blue) G = Filter H = Cap Flow isolation valve...
-
Page 12: Connection To The Gas System
Maxima 35 S Water treatment When treatment is used ferroli limited only recommend the use of proprietary Brand, such as Fernox or Sentinel water treatment products, which must be used in accordance with the manufactures instructions. for further information contact: Feronx Manufacturing Co. - Page 13 Maxima 35 S contacts have a minimum opening of at least 3 mm, and fused at max. 3A between the boiler and the line. It is important to respect the polarities (LIVE: brown wire / NEUTRAL: blue wire / EARTH: yellow- green wire) in making connections to the electrical supply.
- Page 14 Maxima 35 S MAXIMA “Y” Plan Pipe layout Auto air vent MAXIMA FERROLI BOILER Heating return Heating flow Automatic bypass (mimimum flow of 6l/min.) fig. 7a Wiring diagram Junction Box Honeywell V4073H mid position The heating system must have an automatic...
-
Page 15: Flue System
The current standards and local regulations must be observed. It should be noted that only Ferroli flue system and accessories must be used on this appliance, as per BS 5440 2000 and C.E. test certification. - Page 16 Maxima 35 S Connection with concentric fl ue system The unit can be connected to a concentric air/flue duct with a wall or rooftop outlet as shown on the following drawings. Numerous accessories are available on request to meet the various installation requirements.
- Page 17 Maxima 35 S 5. Connect the flue to the boiler, positioning the seals correctly. Seal the flue into the wall with silicone or sand + cement and cover with wall seals provided. Flue seals should be lubricated with a silicone type grease to prevent damage (grease not sup-...
- Page 18 3. Check that the total calculated loss is less than or equal to 55 equivalent metres, i.e. the maximum permissible for this model of boiler. For complete flue options please con- tact FERROLI or check our comprensive flue manual. Table 3 Equivalent Ref.
-
Page 19: Terminal Position
KWMA83W • 1,00 m KWMA85A Bend 45° Ø 80 mm male - female Vertical flue terminal KWMA65W KWMA84U Bend 90° Ø 80 mm male - female The stated loss values refer to genuine Ferroli flue accessories. KWMA01W Terminal Position D, E fig. 13... - Page 20 Maxima 35 S Minimum Dimensions of Flue Terminal Positions Directly below an opening, air brick, 300mm opening windows, etc. Above an opening, air brick, 300mm opening windows, etc. Horizontally to an opening, air brick, 300mm opening windows, etc. 75mm Below gutters, soil pipes or drain pipes...
-
Page 21: Condensate Outlet Connection
Connection to collective fl ues or single fl ues with natural draught If you are then going to connect the Maxima 35 S boiler to a collective flue or a single flue with natural draught, the flue must be expressly designed by professionally qualified technical personnel in confor- mity with the standards and rules in force. -
Page 22: Condensate Discharge
Maxima 35 S Condensate discharge Where possible the condensate should discharge into an internal soil pipe or waste system. The minimum pipe diameter required is 22 mm, a trap has already been fitted to the appliance with a flexible tail to facilitate the connection to the condensate discharge pipe. -
Page 23: Service And Maintenance
Maxima 35 S 3. SERVICE AND MAINTENANCE 3.1 Adjustments All adjustment and conversion operations must be carried out by Qualified Personnel such as the Ferroli Technical Service. FERROLI declines any responsibility for damage or physical injury caused by unqualified and unauthorized persons tampering with the device. -
Page 24: Initial Start-Up
Maxima 35 S 3.2 Initial start-up Commissioning must be performed by Qualified Personnel. Checks to be made at initial start up, and after all maintenance operations that involved discon- necting from the system or an intervention of a safety device. -
Page 25: Maintenance
Maxima 35 S 3.3 Maintenance The following operations are strictly reserved for Qualified Personnel, such as corgi registered engineers or Ferroli personeer. Seasonal inspection of the boiler and fl ue It is advisable to carry out the following checks at least once a year: •... - Page 26 Maxima 35 S Opening the casing To open the boiler casing, you will need to follow the sequence and the instructions of fig. 17 given below. 1 Using a screwdriver, fully unscrew & remove the 2 screws “A ” 2 Open by pulling the panel “B ”...
-
Page 27: Troubleshooting
Maxima 35 S 3.4 Troubleshooting Fault Diagnosis In the event of operating problems or a fault, the display will flash and a fault identification code appears. Faults marked with the letter “F” cause temporary shutdowns that are automatically reset as soon as the value comes back within the boiler’s normal working range. - Page 28 Maxima 35 S Fault Possible cause Cure Software fault • Software operating fault • Cut off and restore the electricity supply. If the trouble remains, check and/or change the main P.C.B. Flame absence after ignition • Blocked flue system • Clear the obstruction from flue, from phase •...
-
Page 29: Technical Characteristics And Data
Maxima 35 S 4 TECHNICAL CHARACTERISTICS AND DATA Top view System flow (22 mm with isolation valve fitted) Gas inlet (22 mm with isolation valve fitted) System return - 22 mm with isolation valve fitted (c/w filter) Condense outlet Safety valve discharge 1/2” F/I Bottom view fig. -
Page 30: General View And Main Components
Maxima 35 S 4.2 General view and main components Combustion chamber Gas inlet CH flow CH return Safety valve Premix fan Combustion chamber Gas injector Ceramic burner Flue outlet manifold Heating pump Heating flow sensor Air separator Automatic air vent... -
Page 31: Hydraulic Diagram
Maxima 35 S 4.3 Hydraulic diagram fig. 21 Gas inlet Safety thermostat CH flow Expansion vessel CH return System pressure gauge (water gauge) Heating safety valve Condensate outlet pipe Premix fan assembly Heating flow non return valve Heating pump Heat exchanger... -
Page 32: Technical Data Table
Heating system connections (With isolation valves fitted) Ø22 Maximum length of separate flues D=80* (*Measurement given in equivalent linear metres – cfr FERROLI calculation system) Electrical power supply Max electrical power absorbed Electric power drawn by the circulator (Speed I-II-III) -
Page 33: Diagrams
Maxima 35 S 4.5 Diagrams Head available for the system QH Chart H [m] Q [m fig. 22 1 - 2 - 3 = Pump selector positions (Ferroli 15/60) A = Boiler losses of head... -
Page 34: Wiring Diagram
