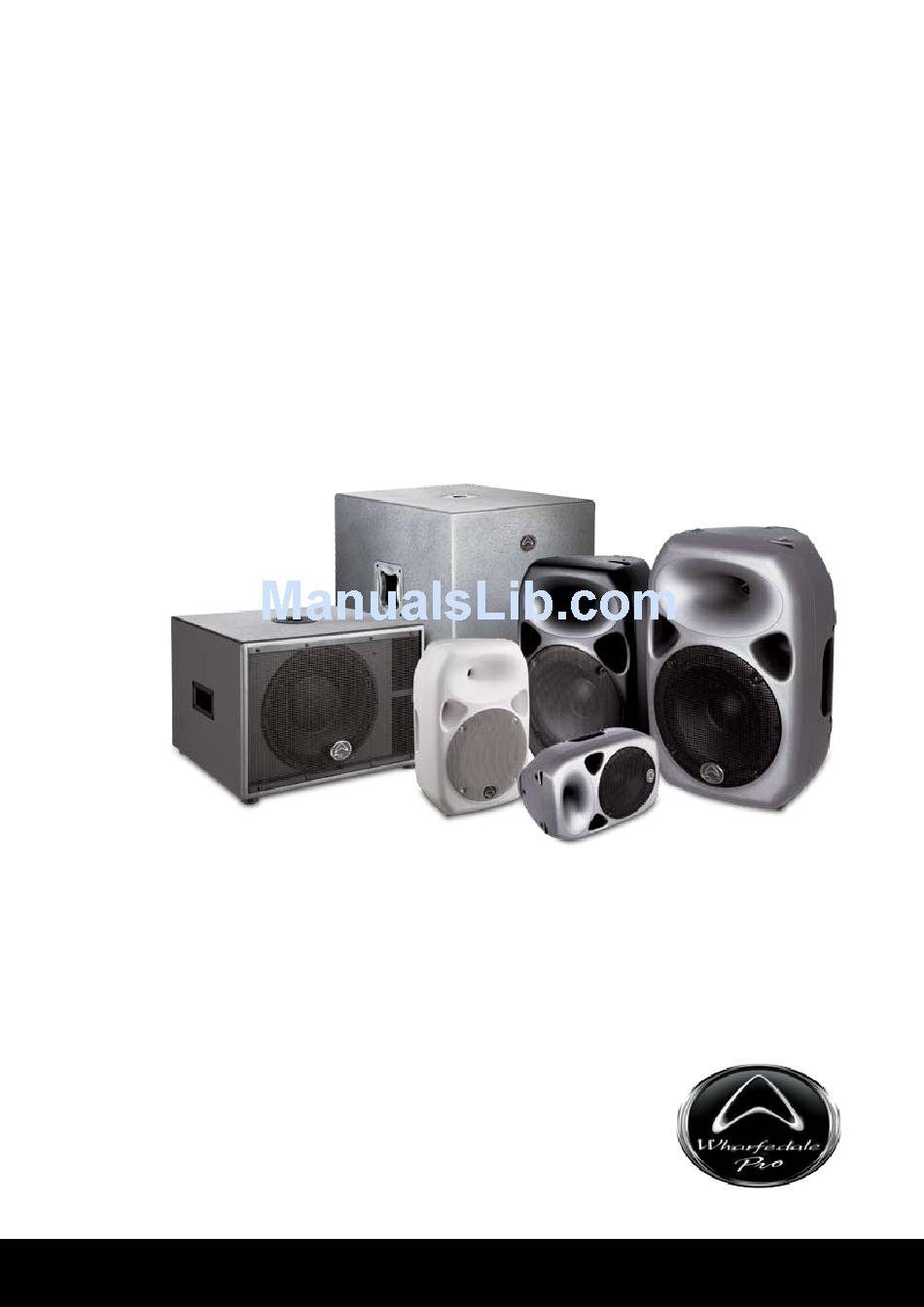

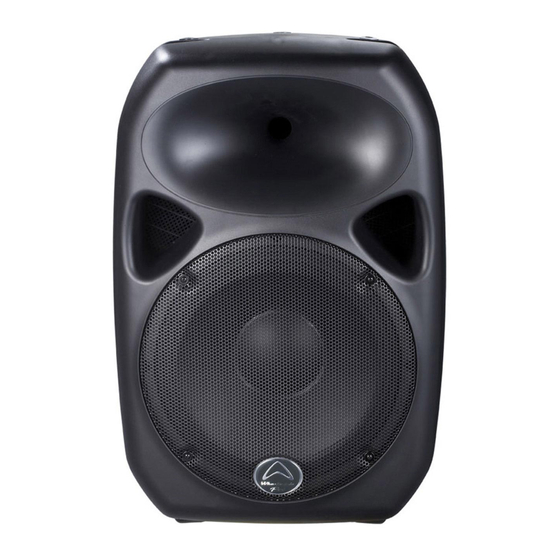

- Page 1 Titan ™ OPERATING MANUAL AND USER GUIDE Titan™ 8 Passive Titan™ 12 Passive Titan™ 15 Passive Titan™ 8 Active MKII Titan™ 12D Titan™ 15D Titan™ Sub A12 Titan™ Sub A15 www.wharfedalepro.com...
-
Page 2: Important Warnings & Safety Instructions
OPERATING MANUAL AND USER GUIDE IMPORTANT WARNINGS & SAFETY INSTRUCTIONS 1. Read these instructions 2. Follow all instructions 3. Keep these instructions 4. Heed all warnings 5. Do not use this apparatus near water 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 3 ™ Titan Series ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR 19. - This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. - Warning: To reduce the risk of electric shock, do not remove the cover (or back) as there are no user-serviceable parts inside.
-
Page 4: Table Of Contents
OPERATING MANUAL AND USER GUIDE TABLE OF CONTENTS 1..........Important Warnings & Safety Instructions 2..........Important Safety Information Powered Products 4..........Introduction / About the Titan™ Series 4..........Titan series overview 5..........Features 6..........Qubit 7..........Setting up / Speaker Placement 7..........Connections / Wiring - Passive 8..........Rear Panel Layout - Passive 8..........Connection Diagram - Passive 11 ..........Rear Panel Layout - Active 14..........Connection Diagram - Active 15..........Rear Panel Layout - Sub A12 16..........Connection Diagram - Sub A12... -
Page 5: Titan Series Overview
Titan Series INTRODUCTION Wharfedale Pro Titan™ Series is the result of many years of experience in the use, design and manufacturing of professional loudspeaker products. We take great pride in engineering and building every Wharfedale Pro loudspeaker and wish to thank you for entrusting us with your sound. From the time Gilbert Briggs built his first loudspeaker in 1932, to the present, Wharfedale Loudspeakers have maintained the same standard of quality in components, workmanship and performance. Wharfedale are one of the few present day manufacturers that design, engineer and... -
Page 6: Features
OPERATING MANUAL AND USER GUIDE FEATURES Titan Passive ♦ 2-way full range loudspeakers ♦ Low distortion, high power moisture proof woofers ♦ HF compression drivers ♦ 90° x 60° Elliptical Wave Guide (EWG) ♦ DTF™ Dynamic Thermal Filament HF protection ♦ Lightweight, high strength gas-assist injection moulded polypropylene enclosures ♦ Ergonomic rubberised handles ♦... -
Page 7: Qubit
™ Titan Series Subwoofer ♦ Low distortion, high power woofers ♦ 2x balanced XLR HPF outputs ♦ 2x summed XLR / ¼” jack combo inputs ♦ Built in signal limiting ♦ Adjustable crossover frequency (SUB 12A only) ♦ -∞to +6dB trim control ♦... -
Page 8: Speaker Placement
OPERATING MANUAL AND USER GUIDE SETTING UP 1. Ensure the speakers power switch is in the off position (Active models only) 2. Set the level controls to minimum (Fully anticlockwise) (Active models only) 3. Set the EQ controls to 0dB (Active models only) 4. -
Page 9: Connection Diagram - Passive
™ Titan Series Titan™ REAR PANEL LAYOUT CONNECTION DIAGRAM #1 Titan two channel setup... -
Page 10: Connection Diagram - Active
OPERATING MANUAL AND USER GUIDE CONNECTION DIAGRAM # 2 Titan mono front of house+stage monitor setup NOTE: This configuration represents a 4 ohm load to each output channel of the amplifier 9... - Page 11 ™ Titan Series CONNECTION DIAGRAM # 3 USING THE Titan WITH A PASSIVE SUBWOOFER CONNECTION DIAGRAM # 4 USING THE Titan™ 8/12/15 IN A BI-AMP SYSTEM...
- Page 12 OPERATING MANUAL AND USER GUIDE Titan™ 8A MKII / Titan™ 12D / Titan™ 15D The Loop / Mix Switch The LOOP/MIX switch allows you to control the signal content going to the XLR OUTPUT jack. In the “LOOP” mode, this switch routes the signal of INPUT B to the line level XLR OUTPUT jack, bypassing the EQ section and volume control.
- Page 13 ™ Titan Series Titan™ 12D/15D REAR PANEL LAYOUT...
- Page 14 OPERATING MANUAL AND USER GUIDE TITAN™ 8A MKII/12D/15D REAR PANEL FEATURES Heat Sink: The heat sink allows for dissipation of heat built up from the amplifier via air cooling at the rear of the enclosure. (Titan 8A MKII and 15D only) VOLUME for INPUT A and INPUT B: These knobs control the level of each input channel (Controls the master volume on the Titan 8A MKII)
- Page 15 ™ Titan Series Titan™12D / 15D CONNECTION DIAGRAM # 1 Basic microphone / playback hookup Titan™12D / 15D CONNECTION DIAGRAM # 2 Connecting two Titan™ ACTIVE speakers together...
-
Page 16: Heat Sink
OPERATING MANUAL AND USER GUIDE TITAN™ SUB A12 REAR PANEL FEATURES 1. HEAT SINK Cooling fins for amplifier. Do not obstruct. 2. VOLUME CONTROL Adjusts the volume. 3. INPUT L Balanced line level input via a XLR/ ¼” combo connector. 4. INPUT R Balanced line level input via a XLR/ ¼”... - Page 17 ™ Titan Series Titan™ Sub-A12 CONNECTION DIAGRAM # 1 TWO CHANNEL SYSTEM WITH HIGHPASS OUTPUT...
- Page 18 OPERATING MANUAL AND USER GUIDE Titan™ Sub-A12 CONNECTION DIAGRAM # 2 USING TWO Titan™ Sub-A12 WITH TWO POWER SPEAKERS...
- Page 19 ™ Titan Series Titan™ Sub-A15 - REAR PANEL FEATURES 1. INPUT A - Balanced line level input via a XLR / ¼” combo connection. 2. OUTPUT A - Balanced male XLR connection provides “THRU” or HIGHPASS signal (depending on switch setting).
- Page 20 OPERATING MANUAL AND USER GUIDE Titan™ Sub-A12 CONNECTION DIAGRAM # 1 TWO CHANNEL SYSTEM WITH HIGHPASS OUTPUT NOTE: This same connection configuration can be used with OUTPUT A and B used in a full- range mode when the THRU/HIGHPASS switch is in the "THRU" (up) position.
- Page 21 ™ Titan Series CONNECTION DIAGRAM # 2 USING TWO Titan™ Sub-A15's WITH TWO POWERED SPEAKERS...
-
Page 22: Specifications - Titan™ Passive
OPERATING MANUAL AND USER GUIDE SPECIFICATIONS - Titan™ PASSIVE SERIES Titan™ 12 Titan™ 15 Titan™ 8 Loudspeaker Type: 12" 2-way 15" 2-way 8" 2-way Frequency Response (+/–3dB): 70 - 20kHz 55 - 20kHz 50 - 20kHz Sensitivity (1W@1M): 96dB 98dB 97dB Peak SPL: 128dB... - Page 23 ™ Titan Series SPECIFICATIONS - Titan™ ACTIVE SERIES Titan™ 8 ACTIVE MK II Titan™ 12 D Titan™ 15 D System Type Active 12” 2-way Bi -Amplified Active 15” 2-way Bi -Amplified Active 8” 2-way Bi-Amplified Frequency Response (+/-3dB) 55-20kHz 50-20kHz 70-20kHz Low Frequency Driver (mm/in.) 305mm / 12”...
-
Page 24: Specifications - Titan™ Active
OPERATING MANUAL AND USER GUIDE SPECIFICATIONS - Titan™ ACTIVE (Con't) Titan™ 12 D Titan™ 15 D Titan™ 8 ACTIVE MKII Inputs Input A – type Switchable balanced mic or line Switchable balanced mic or line Switchable balanced mic or line level input level input level input... - Page 25 ™ Titan Series SPECIFICATIONS - Titan™ SUB SERIES TITAN™ Sub-A15 Titan™ Sub-A12 System Type Re ex subwoofer Band-pass subwoofer Frequency Response (+/-3dB) 55-200Hz 45-150Hz Enclosure Material 15mm MDF 18mm Plywood Enclosure Colour Grey or Black Grey or Black Frame material steel frame Die-cast aluminium frame Size (mm / inches)
- Page 26 OPERATING MANUAL AND USER GUIDE DIMENSIONS...
- Page 27 ™ Titan Series DIMENSIONS...
- Page 28 OPERATING MANUAL AND USER GUIDE DIMENSIONS 12.28" 312mm 21.88" 556mm 15.11" 384mm 12.28" 312mm 7.1" 180mm 15.83” 402mm 27.87” 708mm 18.81” 478mm 15.83” 402mm...
- Page 29 ™ Titan Series DIMENSIONS...
-
Page 30: Warranty
OPERATING MANUAL AND USER GUIDE WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information. *Be aware that warranty details may differ from country to country. Contact your dealers or distributor for information. These terms do not infringe your statutory rights. - Page 31 IAG HOUSE, Sovereign Court, Ermine Business Park Huntingdon, Cambs, PE29 6XU, England www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve specifications without notice. All rights reserved © 2010 Wharfedale Pro. Wharfedale Pro is a member of the International Audio Group (IAG).
