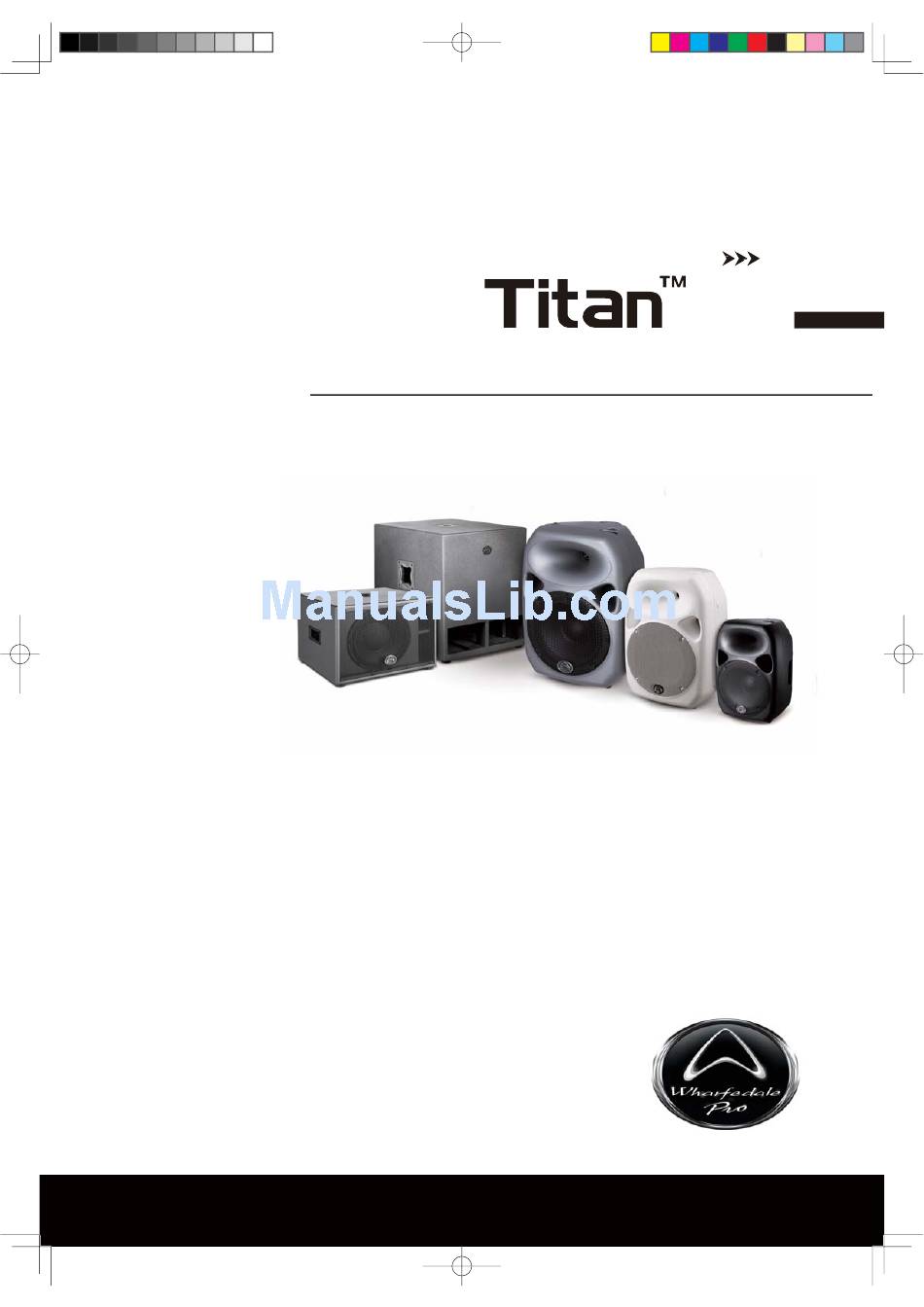

- Page 1 PROFESSIONAL SOUND SYSTEMS Series OPERATING MANUAL AND USER GUIDE Titan™ 8 Passive Titan™ 12 Passive Titan™ 15 Passive Titan™ 8 Active Titan™ 12 Active Titan™ 15 Active Titan™ Sub A12 Titan™ Sub A15 www.wharfedalepro.com...
- Page 2 OPERATING MANUAL AND USER GUIDE IMPORTANT WARNINGS & SAFETY INSTRUCTIONS - GENERAL 1. READ ALL INSTRUCTIONS carefully and become familiar with the features and functions of these products before operating them. 2. RETAIN THESE INSTRUCTIONS for future reference. 3. COMPLY WITH ALL WARNINGS – All warnings and instructions for this product should be adhered to. 4.
-
Page 3: Wharfedale Pro Limited Warranty
WPB-1 Wall Mounting Bracket (Titan™ 12 / 15) WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro Titan™ Series speakers are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information. - Page 4 OPERATING MANUAL AND USER GUIDE TABLE OF CONTENTS 1……………………………..Important Warnings & Safety Instructions 2……………………………..Important Safety Information Powered Products 4……………………………..What about the Titan™ Series? 5……………………….…….Introduction/Overview 6……………………….…….Features 7……………………………..Setting up/ Speaker Placement 7……………….…………….Connections/ Wiring - Passive 8……………….…………….Rear Panel Layout - Passive 8……………….…………….Connection Diagram Passive 12……………….…………….Rear Panel Layout - Active 15…………..……………..….Connection Diagram Active 16…………..……………..….Rear Panel Layout - Sub A12...
- Page 5 Titan Series DIMENSIONS 12.28" 312mm 21.88" 556mm M IX O P T IM IZ E R (B A L A N C E D ) (B A L A N C E D ) INPUT OUTPUT 15.11" 384mm 12.28" 312mm 7.1"...
-
Page 6: Titan™ Series Overview
OPERATING MANUAL AND USER GUIDE TITAN™ SERIES OVERVIEW The Titan™ Series are powerful, accurate, high quality loudspeaker systems with low distortion that were designed to deliver high quality sound for the best value. From the Titan™ 8 (passive) to the Titan™ 15 Active models plus two powered subs, you have what it takes to assemble the system that your music deserves. - Page 7 Titan Series DIMENSIONS 8.7” 221mm 15.59" 396mm 10.47” 266mm 8.7” 221mm 12.28” 312mm 21.89” 556mm 15.11” 384mm 12.28” 312mm...
-
Page 8: Setting Up/ Speaker Placement
OPERATING MANUAL AND USER GUIDE SETTING UP/ SPEAKER PLACEMENT The uniform dispersion of the Titan™ Series makes it easy to place the speakers where you need them, rather than trying to rearrange the room to accommodate the sound system. For the best coverage and highest quality sound, the speakers should be located above head level. - Page 9 Titan Series SPECIFICATIONS - Titan™ ACTIVE (Con't) Titan™ 12 ACTIVE Titan™ 15 ACTIVE Titan™ 8 ACTIVE Inputs Input A – type Switchable balanced mic or line Switchable balanced mic or line Switchable balanced mic or line level input level input level input Input Sensitivity Mic: -36dBu (-38.2dBv or...
-
Page 10: Main Speakers
OPERATING MANUAL AND USER GUIDE CONNECTION DIAGRAM # 2 Titan™ 8/12/15 MONO SYSTEM WITH TWO MONITORS CONNECTING MULTIPLE Titan™ 8/12/15 SPEAKERS TOGETHER IN A MONO-MAIN AND STAGE MONITOR CONFIGURATION USING A SINGLE, DUAL CHANNEL AMPLIFIER MAIN SPEAKERS STAGE MONITORS 4 OHM 4 OHM LOAD LOAD... - Page 11 Titan Series SPECIFICATIONS - Titan™ PASSIVE SERIES Titan™ 8 Titan™ 12 Titan™ 15 Loudspeaker Type: 12" 2-way 15" 2-way 8" 2-way Frequency Response (+/–3dB): 55 - 20kHz 50 - 20kHz 70 - 20kHz Sensitivity (1W@1M): 98dB 97dB 96dB Peak SPL: 128dB 129dB 124dB...
- Page 12 OPERATING MANUAL AND USER GUIDE CONNECTION DIAGRAM # 4 USING THE Titan™ 8/12/15 TITAN™ 8/12/15 INPUT WITH A PASSIVE SUBWOOFER AMPLIFIER OUTPUTS INPUT: +1 Positive -1 Negative OUTPUT OUTPUT PARALLEL INPUTS WWW.WHARFEDALEPRO.COM Hi-Pass Output to PASSIVE SUBWOOFER INPUT Titan ™ 8/12/15 PASSIVE SUBWOOFER HI-PASS OUTPUT P A R A L L E L...
- Page 13 Titan Series CONNECTION DIAGRAM # 1 TWO CHANNEL SYSTEM WITH HIGHPASS OUTPUT TO LEFT ACTIVE SPEAKER TO RIGHT ACTIVE SPEAKER OR AMPLIFIER INPUT OR AMPLIFIER INPUT INPUT OUTPUT (B A L A N C E D ) (B A L A N C E D ) WWW.WHARFEDALEPRO.COM VOLUME Left...
-
Page 14: Xlr Output
OPERATING MANUAL AND USER GUIDE Titan™ 12/15 ACTIVE REAR PANEL LAYOUT Sink HI / LOW EQ iz ion POWER ON con o s LED in ic o LIMIT LED in ic o VOLUME con o A&B POWER ON / OFF swi ch MA X MA X -1 0 d B... - Page 15 Titan Series Titan™ Sub-A12 CONNECTION DIAGRAM # 2 USING TWO Titan™ Sub-A12 WITH TWO POWER SPEAKERS 1 2 0 H z 1 5 0 H z 1 0 0 H z 1 8 0 H z 8 0 H z 2 0 0 H z M A X PASS FILTER...
- Page 16 OPERATING MANUAL AND USER GUIDE Titan™12A / 15A CONNECTION DIAGRAM # 1 Basic microphone / playback hookup MP3 Player O FF LIM IT MA X MA X -12dB -10dB +12dB +10dB VOLUME VOLUME POWER HIGH B AS S RES PO N SE INPUT -12dB -10dB...
- Page 17 Titan Series Titan™ Sub A12 Rear Panel Features 1. HEAT SINK - Cooling fins for amplifier. Do not obstruct. 2. VOLUME CONTROL - Adjusts the volume. 3. INPUT L - Balanced line level input via a XLR/ ¼” combo connector. 4.
- Page 18 OPERATING MANUAL AND USER GUIDE Titan™ Sub-A12 CONNECTION DIAGRAM # 1 TWO CHANNEL SYSTEM WITH HIGHAPASS OUTPUT 120 H z 150 H z 100 H z 180 H z 200 H z 80 H z M A X PAS S FILT ER ( BAL/UNBA ( BALANCE AC220...
- Page 19 Titan Series Titan™ 8/12/15 ACTIVE Rear Panel Features 1. Heat Sink: The heat sink allows for dissipation of heat built up from the amplifier via air cooling at the rear of the enclosure. 2. HI and LOW EQ (equalization) controls: These knobs control the equalization of the overall output signal providing +/- 10dB in each frequency range.
- Page 20 OPERATING MANUAL AND USER GUIDE Titan™ Sub-A15 - REAR PANEL FEATURES 1. INPUT A - Balanced line level input via a XLR / ¼” combo connection. 2. OUTPUT A - Balanced male XLR connection provides output “THRU” or HIGHPASS signal (depending on switch setting).
- Page 21 Titan Series Titan™ 8 / Titan™ 12 / Titan™ 15 ACTIVE Connecting the Titan™ Active Series to your system is just as easy, with a couple more things to do. Plug in the electrical cable and your audio cables and switch the unit on. Always be sure there is a good electrical ground.
- Page 22 OPERATING MANUAL AND USER GUIDE CONNECTION DIAGRAM # 2 USING TWO Titan™ Sub-A15's WITH TWO POWERED SPEAKERS TO LEFT MAIN POWERED SPEAKER OUTPUT INPUT (B A L AN C E D ) (B A L AN C E D ) FROM MIXER WWW.WHARFEDALEPRO.COM...
- Page 23 Titan Series CONNECTION DIAGRAM # 3 Titan™ 8/12/15 MONO MAIN SYSTEM WITH TWO MONITORS (another view) PARALLEL MAIN SPEAKER #1 MAIN SPEAKER #2 CONNECTION TO SECOND MAIN EAKER INPUT: INPUT: +1 Positive +1 Positive -1 Negative -1 Negative PARALLEL INPUTS PARALLEL INPUTS WWW.WHARFEDALEPRO.COM WWW.WHARFEDALEPRO.COM...
- Page 24 OPERATING MANUAL AND USER GUIDE SPECIFICATIONS - Titan™ ACTIVE SERIES Titan™ 12 ACTIVE Titan™ 15 ACTIVE Titan™ 8 ACTIVE Active 12” 2-way Bi-Amplified Active 15” 2-way Bi-Amplified System Type Active 8” 2-way Bi-Amplified 55-20kHz 50-20kHz Frequency Response (+/-3dB) 70-20kHz 305mm / 12” 381mm / 15”...
- Page 25 Titan Series Titan™ REAR PANEL LAYOUT INPUT: +1 Positive -1 Neg ative INPUT: +1 Positive -1Neg ative PARALLEL INPUTS POWER HANDLING: POWER HANDLING 150 W atts C ontinuous 200 Watts Continuous 300 W atts Program 500 Watts Program 1000 Watts Peak 500 W atts Peak Impedance: 8 Ohms Im pedance: 8 O hm s...
- Page 26 OPERATING MANUAL AND USER GUIDE SPECIFICATIONS - Titan™ SUB SERIES TITAN™ Sub-A15 Titan™ Sub-A12 System Type Band-pass subwoofer Reflex subwoofer Frequency Response (+/-3dB) 45-150Hz 55-200Hz Enclosure Material 18mm Plywood 15mm MDF Enclosure Colour Grey or Black Grey or Black Frame material Die-cast aluminium frame steel frame Size (mm / inches)
- Page 27 Titan Series FEATURES 2-way reflex systems Passive (3) and Active (3) + Powered Subs (2) Low distortion, high power woofers 25.4mm Titanium high frequency compression drivers BRO™ Bass Response Optimizer (Titan™ 12/15 Active) Class D Low Frequency Amplifier (Active) Class A/B High Frequency Amplifier (Active) XLR output for connecting to another powered speaker RCA inputs for MP3, CD or other inputs Integral Elliptical Wave Guide (EWG) 90°...
- Page 28 OPERATING MANUAL AND USER GUIDE DIMENSIONS 15.83” 402mm 27.87” 708mm 18.81” 478mm 15.83” 402mm 8.7” 221mm 15.59" 396mm 10.47” 266mm 8.7" 221mm...
- Page 29 Wharfedale Pro loudspeaker and wish to thank you for entrusting us with your sound. From the time Gilbert Briggs built his first loudspeaker in 1932, to the present, Wharfedale Loudspeakers have maintained the same standard of quality in components, workmanship and performance.
- Page 30 OPERATING MANUAL AND USER GUIDE DIMENSIONS 493.0 Titan SUB A12 TOP VIEW 463.0 120Hz 150Hz 100Hz 180Hz 80Hz 200Hz PASS FILTER (BAL/UNBAL) (BALANCED) INPUT OUTPUT AC 22 0 240V 50Hz 250W FUSE T3.15 AL 250V 431.0 FRONT VIEW REAR VIEW Titan SUB A15 TOP VIEW...
-
Page 31: Important Safety Information Powered Products
Titan Series IMPORTANT SAFETY INFORMATION POWERED PRODUCTS Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been exposed to rain or moisture, does not operate normally, or has been dropped. - Page 32 IAG HOUSE Sovereign Court, Ermine Business Park Huntingdon, Cambs, PE29 6XU, England www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve specifications without notice All rights reserved © 2008 Wharfedale Pro. Wharfedale Pro is a member of the International Audio Group (IAG).
