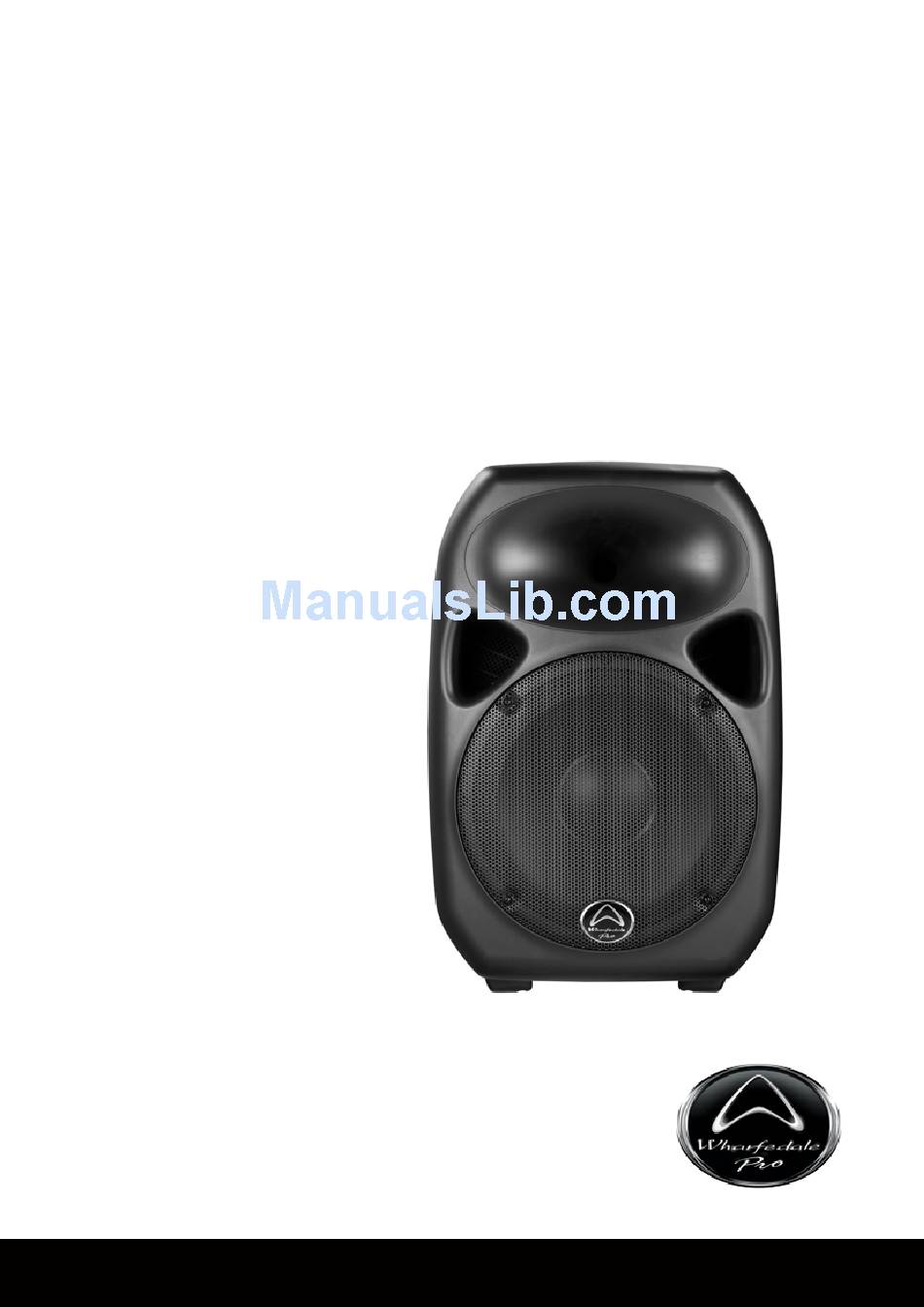

- Page 1 Titan ™ OPERATING MANUAL AND USER GUIDE Titan™ 12D Titan™ 15D www.wharfedalepro.com...
- Page 2 OPERATING MANUAL AND USER GUIDE IMPORTANT WARNINGS & SAFETY INSTRUCTIONS . Read these instructions 2. Follow all instructions 3. Keep these instructions 4. Heed all warnings 5. Do not use this apparatus near water 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 3 ™ Titan Series ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR 19. - This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
- Page 4 TABLE OF CONTENTS ..........Important Warnings & Safety Instructions 4..........Introduction 4..........Titan series overview 5..........Features / Qubit 6..........Setting up / Speaker Placement 7..........Rear Panel Layout - Active 9..........Rear Panel Features 0..........Connection Diagram - Active ..........Specifications - Titan™ 12D / 15D 2..........Dimensional Drawings - Titan™ 12D / 15D 3…………………………..…Warranty...
- Page 5 Titan Series INTRODUCTION Wharfedale Pro Titan™ Series is the result of many years of experience in the use, design and manufacturing of professional loudspeaker products. We take great pride in engineering and building every Wharfedale Pro loudspeaker and wish to thank you for entrusting us with your sound. From the time Gilbert Briggs built his first loudspeaker in 1932, to the present, Wharfedale Loudspeakers have maintained the same standard of quality in components, workmanship and performance. Wharfedale are one of the few present day manufacturers that design, engineer and...
- Page 6 Per channel volume controls (Master only on 8A MKII) ♦ 2 Band EQ ♦ 90° x 60° elliptical Wave Guide (EWG) ♦ BRO™ Bass Response Optimizer (12D & 15D only) ♦ Horn LED defeat switch ♦ Balanced XLR output for parallel wiring ♦...
-
Page 7: Speaker Placement
8. Switch on the Titan Loudspeaker (Active models only) 9. Raise the level control on the Titan (Active models only) or external amplifier 10. If the limit LED illuminates lower the level control, if more level is required you will need more speakers. - Page 8 OPERATING MANUAL AND USER GUIDE Titan™ 12D / Titan™ 15D The Loop / Mix Switch The LOOP/MIX switch allows you to control the signal content going to the XLR OUTPUT jack. In the “LOOP” mode, this switch routes the signal of INPUT B to the line level XLR OUTPUT jack, bypassing the EQ section and volume control.
- Page 9 ™ Titan Series Titan™ 12D/15D REAR PANEL LAYOUT...
- Page 10 12D/15D REAR PANEL FEATURES Heat Sink: The heat sink allows for dissipation of heat built up from the amplifier via air cooling at the rear of the enclosure. (Titan 8A MKII and 15D only) VOLUME for INPUT A and INPUT B: These knobs control the level of each input channel (Controls the...
- Page 11 ™ Titan Series Titan™12D / 15D CONNECTION DIAGRAM # 1 Basic microphone / playback hookup MP3 Player Place switch down in “MIX” position AC Power Cord to power outlet Microphone Titan™12D / 15D CONNECTION DIAGRAM # 2 Connecting two Titan™ ACTIVE speakers together...
- Page 12 OPERATING MANUAL AND USER GUIDE SPECIFICATIONS - Titan™ 12D / 15D Titan™ 12 D Titan™ 15 D System Type Active 12” 2-way Bi -Amplified Active 15” 2-way Bi -Amplified Frequency Response (+/-3dB) 55-20kHz 50-20kHz Low Frequency Driver (mm/in.) 305mm / 12”...
- Page 13 ™ Titan Series DIMENSIONS 2.28" 32mm 2.88" 556mm 5.1" 384mm 2.28" 32mm 7.1" 80mm 5.83” 402mm 27.87” 708mm 8.8” 478mm 5.83” 402mm...
- Page 14 OPERATING MANUAL AND USER GUIDE WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information. *Be aware that warranty details may differ from country to country. Contact your dealers or distributor for information. These terms do not infringe your statutory rights.
- Page 17 Wharfedale Professional IAG HOUSE, Sovereign Court, Ermine Business Park Huntingdon, Cambs, PE29 6XU, England www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve specifications without notice. All rights reserved © 2010 Wharfedale Pro. Wharfedale Pro is a member of the International Audio Group (IAG).
