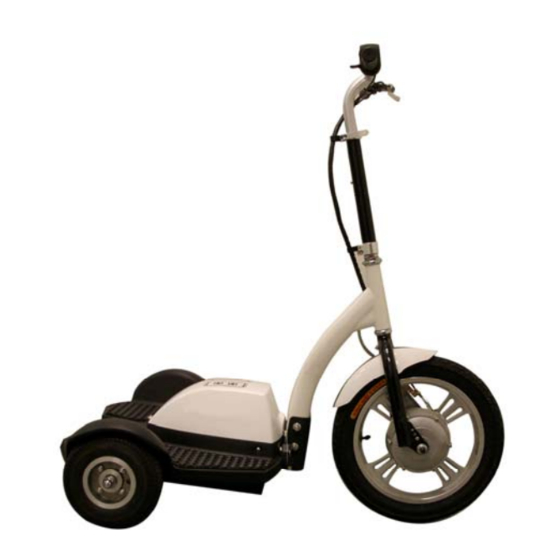

OWNER'S MANUAL
Read this manual completely before riding
your Electric Tri scooter.
TECHNICAL INFORMATION
Product size
: 40 L x 26.8 W x 38.6 H inch
(102 L x 68 W x 98 H cm)
Type of motor
: permanent-magnet brushed DC motor
Motor power
: 350 w geared motor, 36 V
Battery type
: IBT sealed lead acid battery
Battery
: 21AH 36V
Charger
: 110V/220V(optional)
Charging time
: 4-6 hours
Rated speed
: 15.5 MPH (25 km/h)
Single charge
: 30 MILES (48 km)
Max capacity
: 300 LBS (136 kg)
Net weight
: 110 LBS (68 kg)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Zap Zappy 3 Pro
Summary of Contents for Zap Zappy 3 Pro
- Page 1 OWNER’S MANUAL TECHNICAL INFORMATION Product size : 40 L x 26.8 W x 38.6 H inch (102 L x 68 W x 98 H cm) Type of motor : permanent-magnet brushed DC motor Motor power : 350 w geared motor, 36 V Battery type : IBT sealed lead acid battery Battery...
-
Page 2: List Of Parts
WARNING • Sand and loose impediments are your enemy, avoid them. THE ELECTRIC TRISCOOTER IS NOT A TOY AND SHOULD NOT BE OPERATED BY ANY ONE UNDER 12 YEARS OLD. • Never operate too fast for your skills or condition. Safety Instruction (Please take note of the followings before each ride) LIST OF PARTS... - Page 3 1. handlebar Tool Kits 2. quick release 3. handlebar tube 4. handlebar tube clamp 5. connecting tube 6. rear fender 7. battery & controller compartment 8. balancing wheel 9. footboard 10. rear wheel 11. power connecting plug 12. connecting tube clamp 13.
-
Page 4: Charging The Batteries
CHARGING THE BATTERIES Fuse (inside the battery bag) Before you ride the tri scooter for the first time, i t is advised that the unit is to be fully charged (4-6 hours) and fully discharged Note: For professional reference only. (ride until the battery gauge indicates low battery) for at least three cycles to maximize the efficiency of the battery. - Page 5 RIDING THE TRI SCOOTER NOTE 2: When scooter is parked, press the power switch button to the “off” position; this will avoid anyone from accidentally Once you have completed the initial charge you are ready to ride. pushing the throttle causing the scooter to speed forward. Failure Remember, this is not a toy.
-
Page 6: Maintenance
WIRING DIAGRAM MAINTENANCE (for professional reference) Battery: (for professional use only) The tri scooter is powered by 31Ah 36V rechargeable batteries secured in a battery bag. Other than recharging, these batteries need no maintenance. To prolong battery life, you must recharge the battery after each use. -
Page 7: Troubleshooting Guide
TROUBLE SHOOTING GUIDE (for professional use only) Problem Cause Solution The power 1. Battery is 1. Recharge your tri scooter. light by the discharged. 2. Remove the screws that thumb throttle 2. Loose connection hold the battery does not inside the tri compartment cover and raise illuminate scooter.
