Summary of Contents for Zap Zarino

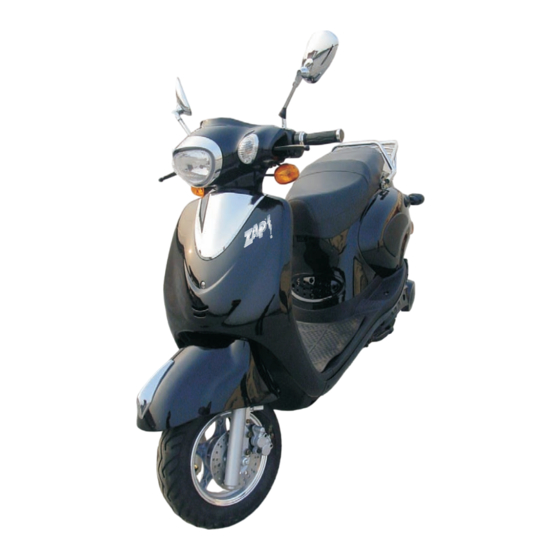

- Page 1 Owner's Manual Ride the Future Operation and Maintenance Instructions We strongly recommend that you read this entire manual before using your vehicle for the first time...
-
Page 2: Table Of Contents
Contents Page General Instruction before riding Page 3 Point Inspection Page 4 Assembly Instructions Page 5 Technical Specifications Page 6 Parts List Page 7 Front Display Page 8 Ignition Key Positions Page 9 Handle Bar Controls Page 10 Power Boost Button Page 11 Accelerating &... -
Page 3: General Instruction Before Riding
General Instructions Before Riding 1) To ensure the vehicle is functioning correctly, do a quick check of the vehicle’s tires and check that the brakes are working. (For more detailed maintenance instructions see the Maintenance Schedule). Your vehicle has been thoroughly checked by our engineers before delivery but on the spot checks are equally important. -
Page 4: Point Inspection
Point Inspection before every use Item Action Front Brake Squeeze right hand brake and push the vehicle to see whether it rolls easily. If it does, then the brake must be tightened. Tighten the bolt until the vehicle will no longer move with the brakes applied. Rear Power/Disc Brake Listen for any noticeable grinding or squealing from the tires while the brake is applied. -
Page 5: Assembly Instructions
Assembly Instructions Installing the mirrors 1. Mirrors can be easily fixed to the handle bars between the grips and the brake handle. 2. Screw in the mirror clockwise. The mirror that goes on the left controller is curved to the left and the mirror that goes on the right controller curves to the right. -
Page 6: Technical Specifications
Technical Specifications Motor Power 1500W / 2000W Brushless Hub Motor Battery DC 48V, 38Ah/DC 60V, 20Ah with the green saver ( silicone power) batteries Charger 5A,110V~250V/50 Hz ~60Hz Charging Time 6~10 Hours Life of Battery 400 Deep Cycles Wheelbase 10 Inches Torque 18.45 Foot Pounds Top Speed... -
Page 7: Front Panel
Equipment Location Lights -On/Off Economy Speed Switch Rear Brake Front Brake Throttle High/Low Beam Throttle Turn Signals Lights On/Off Horn High Speed Mode High Speed Switch Left Handlebar Right Handlebar Front Panel DBI “Digital Battery High Beam Indicator Indicators” System Turn Signal Speedometer Indicators... - Page 8 Head Lamp Bike Lift/ Rear Box Shelf Turn Signal Rear Lamps Turn Signal Tail Lamp Front Mud Fender Front Wheel Rear Power Drum Brake Front Disk Brake Center Stand Rear Suspension Aluminum Alloy Hub Motor Digital Controller Silicon Power Batteries Part Item Function...
-
Page 9: Ignition Key Positions
Ignition Key Position Description Position Key cannot be taken out when power is on. Key can be taken out when power is off Lock handle To prevent theft, turn the Handle Bar to the far left and turn the key into the lock position. The key can be taken out when handle bar is in the lock position. -
Page 10: Handle Bar Controls
Left handle bar controls Headlight Switch High Beam – Push switch up Low Beam – Push switch down Horizontal Switch Left Turn Signal – Slide switch to the left Right Turn Signal – Slide switch to the right Turning off Signal – Press central release button Horn Button Sounds Horn –... -
Page 11: Accelerating & Braking
Accelerating and Braking Throttle Tips 1. Turn the key to the ‘ON’ position, and turn the Throttle gradually to accelerate. 2. To prevent losing control of the vehicle, please turn the Throttle slowly until the speed increases. 3. Do not turn the Throttle until you are in the position to drive. 4. - Page 12 Battery Gauge and Charging Instructions Color Description Green While riding, when the battery is fully charged the gauge light will be green. Green (2 This light indicates that the battery is 75% of full charge Yellow When power is low (around 50%) the battery gauge will turn to yellow.
-
Page 13: Performance
Performance 1. The distance and speed depend upon various elements of the rider’s style and the road conditions. A 20mph constant speed will ensure the longest range but our figures include going flat out too. Other factors include weather, vehicle condition, and battery charge. Drivers must be cautious when driving on rough roads, in poor weather, or when the battery charge is low. -
Page 14: Maintenance
Maintenance This electric motor bike represents generation environmentally friendly two-wheeled transportation. Therefore, good maintenance will play a major role in keeping your vehicle in good working condition and prolonging the life of the batteries. Please follow these suggestions: • To prevent rust always keep your vehicle dry and clean. •... -
Page 15: Maintenance Schedule
Maintenance Schedule Mileage 400 1000 2000 3000 4000 5000 6000 Maintenance Battery Charger Tire Pressure Tire Wear Brake System Brake Nuts Bolts Mileage 7000 8000 9000 10,000 11,000 12,000 Maintenance Battery Charger Tire Pressure Tire Wear Brake System Brake Nuts Bolts A: Adjust C: Check... -
Page 16: Frequently Asked Questions
Frequently Asked Questions Fully charged, what is the range of the electric vehicle? The Range is affected by the weight of rider, the type of terrain and the speed at which the vehicle is driven. Under optimal conditions (push red button and keep a steady 20mph rate speed), a range of (110 km) has been recorded on a single charge. - Page 17 Can the electric vehicle be cleaned or washed with water without any concern? Due to its Direct Current source and 48V / 60V system design, there is no danger when the vehicle gets wet. However, one should be careful not to pour water directly into the charger outlet, the controller and the internal battery set when washing or cleaning.
- Page 18 Why is this product the best available in the world today? It has a Brushless motor. We emphasize "brushless" not just because this is the latest technology, but because these permanent magnet motors are supremely reliable! These more expensive motors produce high torque at low speeds, keeping an acceptable balance of torque and energy across the whole speed range.
-
Page 19: Special Maintenance Warning Signals
Special Maintenance Warning Signals If the Zapino is not working, look at the trouble light (break down lights) above the speedometer, as follows: • Flash 2 or 3 times, problem is with brake (brake cut off) • Flash 4 times, problem with throttle, it didn't come back to position. •... -
Page 20: Troubleshooting
Troubleshooting Problem Condition Check Solution When I turn my Power Check power Fasten vehicle on nothing indicator light is off connection and connections. happens. while riding. battery level. Indicating Check battery Recharge light on motor is not and motor battery. illuminated. - Page 21 A bad Unplug and connection exists plug in again. between the charger Otherwise contact and the battery. the supplier. ZAP! 501 Fourth St., Santa Rosa, CA 95401 USA www.zapworld.com e:zap@zapworld.com Phone: 707-525-8658 Fax: 707-636-0177 Stock Symbol: ZAAP...
