OWNER'S
MANUAL

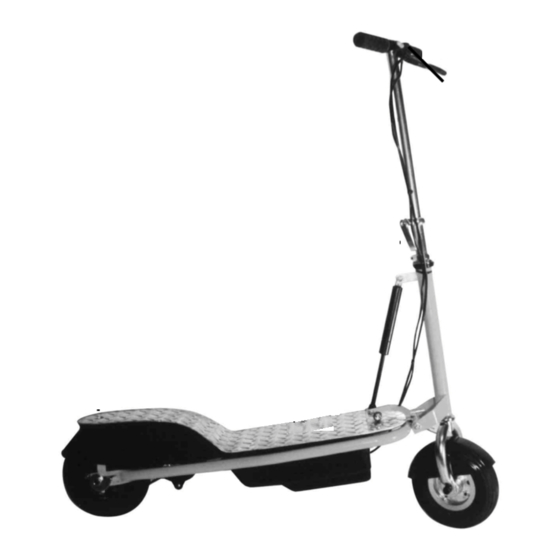

FOR THE ZAPPY FOLDING
ELECTRIC SCOOTER
Patent #5,848,660 • D 433,718 Other U.S. and International Patents Pending.
Reproduction is prohibited without written permission.
®
ZAPPY
is a registered trademark of ZAPWORLD.COM. All rights reserved.
$2.00
REV 8/16/99
ZAPWORLD.COM • One ZAP Drive
117 Morris Street, Sebastopol
tel (707) 824-4150 fax (707) 824-4159
e-mail: zap@zapworld.com • Stock Symbol:ZAPP
Z
E
R
O
A
I
R
BE SAFE! ALWAYS WEAR A HELMET WHEN RIDING
DESIGNED IN THE USA
ASSEMBLED IN THE USA
CA 95472 USA
P
O
L
L
U
T
I
O
TM
N
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Zap ELECTRIC SCOOTER
Summary of Contents for Zap ELECTRIC SCOOTER
- Page 1 ZAPPY is a registered trademark of ZAPWORLD.COM. All rights reserved. $2.00 REV 8/16/99 ZAPWORLD.COM • One ZAP Drive 117 Morris Street, Sebastopol tel (707) 824-4150 fax (707) 824-4159 e-mail: zap@zapworld.com • Stock Symbol:ZAPP BE SAFE! ALWAYS WEAR A HELMET WHEN RIDING...
-
Page 2: Introduction
Thank you for purchasing a ZAPPY, just one of ZAP's complete line of two- and three-wheeled electric vehicles. Our hope is that your ZAPPY will make your life more fun while contributing to a healthier planet for all. -
Page 3: Before You Ride Your Zappy
BEFORE YOU RIDE STOP YOUR ZAPPY READ THOROUGHLY AND UNDERSTAND THIS OWNER’S MANUAL TO THE PURCHASER OF THE ZAPPY: • The status of the ZAPPY as a “motor vehicle” subject to driver’s licensing, insurance requirements and registration varies from state to state, and country to country. •... -
Page 4: Table Of Contents
INTRODUCTION BEFORE YOU RIDE YOUR ZAPPY TABLE OF CONTENTS OPERATIONS AND FEATURES DESCRIPTION OF SYSTEM CHARGING PRE-RIDE CHECK LIST HOW TO RIDE YOUR ZAPPY BATTERY CARE TROUBLESHOOTING GUIDE ACCESSORIES SAFETY WARNINGS BRAKE OPERATION WARRANTY ALWAYS WEAR A HELMET! 14-16... -
Page 5: Operations And Features
PERFORMANCE AND RANGE • You will get the best performance on smooth and flat terrain. Give the ZAPPY a push and pull the safety switch to start. Kicking the ground with your foot while the motor is activated will increase your speed and range. -
Page 6: Circuit Breaker
Your ZAPPY is equipped with an automatically resetting circuit breaker. If it is drawing more than 30 amps of current, it will momen- tarily shut off. The circuit breaker will reset in a few seconds. The system will continue to shut down until the current draw is less than 30 amps. - Page 7 ROLLING THE ZAPPY • With the ZAPPY in its folded down position, turn the ZAPPY upside down. Use both hands and lift up the ZAPPY by the han- dlebars. The ZAPPY can now be pushed or pulled with ease, just like a vacuum cleaner! REMOVABLE DECK Fig.4...
-
Page 8: Drive Belt Adjustment
ADJUSTING THE GAS STRUT POSITION Heavy • (Fig.6) The ZAPPY is equipped with a gas strut that is adjustable to two different levels of resistance. If the rider has difficulty fold- ing the ZAPPY, the gas strut can be moved to the light position. DRIVE BELT ADJUSTMENT •... - Page 9 DRIVE BELT REPLACEMENT • If the drive belt has broken or frayed, it will need replacing. Call ZAP at (707) 824-4150 to purchase a new belt. Before servicing the ZAPPY, disconnect the battery power connector to prevent accidental starting of the ZAPPY.
-
Page 10: Description Of System
DESCRIPTION OF SYSTEM SAFETY SWITCH BATTERY CHARGING JACK HANDLE HEIGHT QUICK ADJUSTMENT MAIN POWER SWITCH BATTERY CHARGER (MAY VARY IN APPEARANCE) ALWAYS WEAR A HELMET! CHARGER POWER CONNECTOR GAS STRUT HEAD TUBE DECK 1/4 TURN DECK FASTENER... -
Page 11: Charging
Connect the charger power connector to the power connector on the battery. TO DISCONNECT THE CHARGER: 1. First, unplug the ZAP charger from the 110 VAC (or 220 in some countries outside the USA) wall socket. 2. Then, disconnect the charger power connector from the battery charging connector. -
Page 12: Pre-Ride Check List
PRE-RIDE CHECK LIST PERIODICALLY GO THROUGH THIS CHECKLIST TO MAKE SURE THAT YOUR ZAPPY IS IN PROPER ADJUSTMENT FOR SAFETY AND OPTIMAL PERFORMANCE. IT IS IMPER- ATIVE THAT YOU REVIEW THIS CHECKLIST BEFORE YOUR FIRST RIDE. ALTHOUGH YOUR ZAPPY HAS PASSED OUR QUALITY ASSURANCE PROCEDURE, IT MAY NEED ADJUSTMENT AFTER SHIPPING. -
Page 13: Battery Care
Local, state or federal laws prohibit disposal of lead-acid batteries in ordinary trash. Consult your local waste authority for information regarding available recycling options, or call ZAP customer RECYCLE service. When the battery needs to be replaced, we recommend that you contact your nearest ZAP authorized dealer. -
Page 14: Troubleshooting Guide
PROBLEM POSSIBLE CAUSE Power switch is in off position Broken drive belt Vehicle not moving at least 3 mph Battery is drained Electrical fault in wiring Battery not connected Brake cable wrapped around handlebar Handlebar overextended Brake too tight Circuit breaker has tripped Inadequate rider input (kicking) for incline Low tire pressure Hilly terrain... -
Page 15: Accessories
Buy another battery for quick changes. Remove the deck, pull out the drained battery and pop in a fresh one, secure the deck and you are ready to go! Immediately hook up the drained battery to the battery charger to maximize battery life. Want to charge the battery a lot faster? Why not purchase our 6- amp battery charger and charge your battery twice as fast?! Charge ZAPPY’s battery using your boat, RV, or automobile ciga-... -
Page 16: Battery Warnings
"on/off" switch ON when not in use. For greater safety disconnect battery power connector. To reduce the risk of injury, use only batteries provided or rec- ommended by ZAP. Other batteries may explode causing personal injury and damage. DO NOT PLACE THE BATTERY NEAR FIRE OR HEAT. It could explode. -
Page 17: Other Safety Warnings
ZAPPY’s brakes might overheat if the hill is too steep. repairs or maintenance procedures that are not described in this manual. Call ZAP at (707) 824-4150 for the name of a dealer near you. -
Page 18: Brake Operation
For significant changes in the cable tension, the brake cable can be adjusted by re-positioning the brake cable at the cable anchor bolt located on the band brake (refer to Fig. 10). This adjust- ment should only be made by a qualified ZAP mechanic. ©1999 ZAPWORLD.COM... -
Page 19: Warranty
ZAP product. Proof of date of purchase will be or rescission of the contract of sale of any ZAP product. Proof of date of purchase will be required by the dealer to substantiate any warranty claim. - Page 20 ZAPPY BUYER’S CHECKLIST As members of a new transportation industry, our staff and management would like to thank you for purchasing your ZAPPY Power-Assist Scooter. As in many recreational activities, accidents can and do occasionally occur. It is for this rea- son that we specifically bring the following points to your attention.
-
Page 21: Thank You
Where did you hear about our product? Friend Relative Associate Internet Show News Article Dealer Ad (where)______________________________ Other_____________________________________ Are you interested in ZAP Shareholder information? (Our stock symbol NASDAQ:ZAPP) Do you use the internet? If so, what is your E-mail address? ___________________________________ Favorite Magazines: 1. - Page 22 Z A P W O R L D . C O M ©2001 ZAPWORLD.COM. All rights reserved. is a registered trademark. ® ZAPWORLD.COM • One ZAP Drive 117 Morris Street, Sebastopol CA 95472 USA tel (707) 824-4150 fax (707) 824-4159 e-mail: zap@zapworld.com • Stock Symbol:ZAPP ZAP is a Publicly Traded Company...
