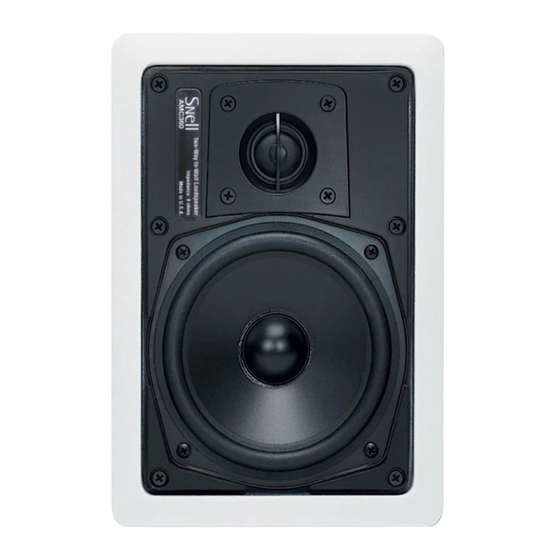

Snell AMC 360 Owner's Manual

In-wall speakers
Hide thumbs Also See for AMC 360:
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
AMC
360
460
560

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMC 360 and is the answer not in the manual?

Questions and answers

Related Manuals for Snell AMC 360

Summary of Contents for Snell AMC 360

  • Page 1 Owner’s Manual...

  • Page 2: Specifications

    SPECIFICATIONS AMC360 Frequency Response ( 3dB) 65–20,000Hz Recommended Amplifier Power 10–100 watts Nominal Impedance 8 ohms Sensitivity [1 watt (2.83v) at 1m] 90dB Tweeter 1" (25mm) soft dome Bass Unit ⁄ " (135mm) copolymer Crossover Frequency 3500Hz External Dimensions (HxW) ⁄...
  • Page 3 AMC460 AMC560 57–20,000Hz 48–20,000Hz 10–125 watts 10–150 watts 8 ohms 8 ohms 89dB 89dB 1" (25mm) soft dome 1" (25mm) soft dome ⁄ " (165mm) copolymer 8" (200mm) copolymer 3400Hz 3200Hz ⁄ ⁄ " (268 x 197mm) ⁄ ⁄ " (315 x 243mm) ⁄...

  • Page 4: Installation Instructions

    INTRODUCTION The AMC 360/460/560 in-wall speakers are designed to be as accurate, clean and musical as our free-standing speakers. The unobtrusive, flush-mount design makes them ideal for installation in walls or ceilings of rooms where space or decor make conventional speakers undesirable or inappropriate.

  • Page 5: Stereo Image

    WHERE TO PLACE YOUR SPEAKER SYSTEMS Effects Of The Wall The wall or ceiling into which the AMC in-wall speaker is placed becomes its acoustical enclosure. A large part of the system’s acoustical performance is dependent on that enclosure. Generally, large volumes will ensure full bass extension. Whenever possible, avoid placing the speaker at either end of along column such as that created between wall studs, the footer, and the header.

  • Page 6: Painting The Speakers

    Each speaker is 8 ohms nominal. When connecting more than two speakers per amplifier channel, you should use series/parallel wiring or line transformers. In all cases, make certain that the total impedance does not fall below the amplifier’s minimum rating. If you are not sure, contact your Snell Acoustics dealer.

  • Page 7: You Will Need

    For new construction, an optional bracket (Model NCB5 for the 360, NCB6 for the 460, Model NCB8 for the 560) is available from your Snell Acoustics dealer. WARNING: To prevent electrical shock hazard, always switch off the amplifier or receiver when making connections to the speaker.

  • Page 8: Listening Levels And Power Handling

    Use such controls sparingly. LIMITED WARRANTY For five years from the date of purchase, Snell Acoustics will repair for the original owner any defect in materials or workmanship that occurs in normal use of the speaker system, without charge for parts and labor.

This manual is also suitable for:

Amc 460Amc 560
