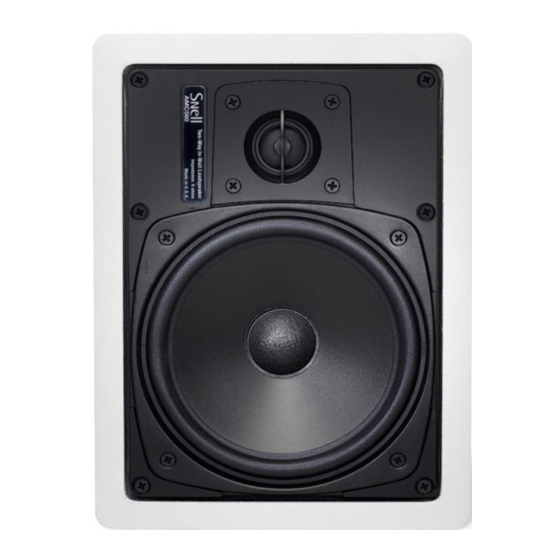

Snell AMC 460 Specifications

AMC 460
FLUSH-MOUNT
SPEAKER
GREAT SOUNDING FLUSH-MOUNT SPEAKER
PERFECT FOR MUSIC, AND 5.1 HOME THEATER
The Snell AMC 460 was designed to be as accurate,clean and
musical as our free standing speakers. The unobtrusive,flush
mount design makes them ideal for installation in walls or ceil-
ings where space or decor make conventional speakers undesir-
able or inappropriate.They can also be used as front or rear
channels in a home theater system. Strict attention to detail
and quality of construction make it a true value for the serious
music lover who demands wide bandwidth, low distortion and
impressive dynamics.The AMC 460 utilizes a high power han-
dling 6 1 / -inch woofer and a ferrofluid cooled 1-inch Kortec
2
tweeter, together they are hand tuned to a high order crossover
for smooth response and wide dynamic range. Its clever mount-
ing system allows easy installation throughout the home with-
out visual distraction.
SPECIFICATIONS
Frequency Response
57Hz-20kHz ±3dB anechoic
Recommended Amplifier Power
10 to 125 watts
Nominal Impedance
8 ohms
Sensitivity
89dB
Tweeter
1" ferrofluid cooled textile dome
tweeter
Bass Unit:
6 1 / -inch high power handling
2
woofer
AMC 460
Crossover Frequency
3400Hz
Grille
Perforated metal
Outside Dimension
10 9 / " h x 7 3 / " w
16 4
Rough Opening Requirements
7 1 1
9 / " h x 7 / " w x 3 / " d
8 8 8
Weight/Pair (Shipping)
11 lbs.
Finish
White, suitable for painting
Hand Tuning
Our technicians rigorously match
our systems to within ±0.5dB of the
Master Reference
143 Essex Street
Haverhill, MA 01832
978-373-6114 phone
978-373-6172 fax
Covered by patents issued and or
pending. Specifications subject to
change. ©1999 Snell Acoustics.
