Summary of Contents for Cloud DCM-1

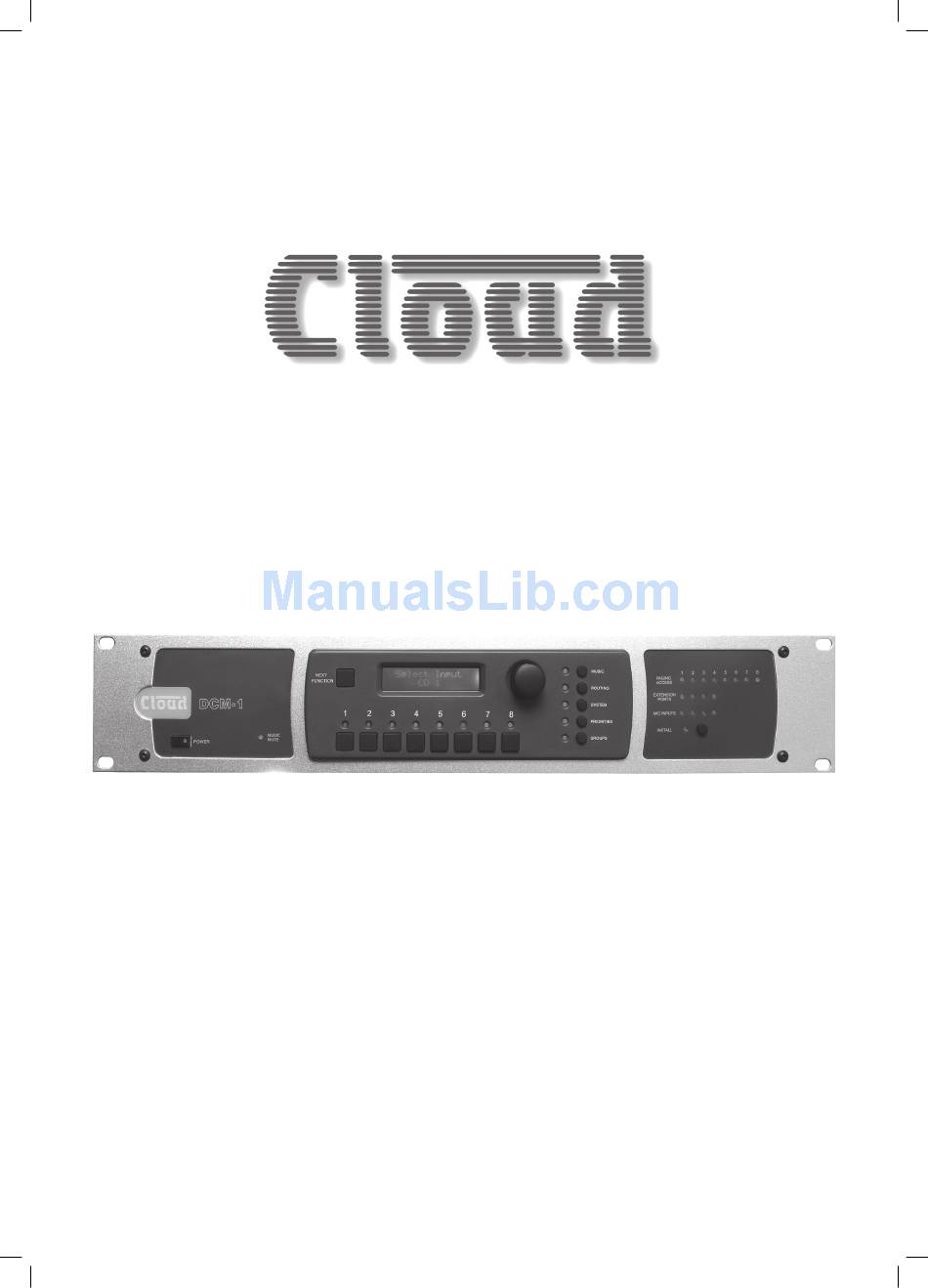

- Page 1 DCM-1 Digitally Controlled Mixer Installation and User Guide...
- Page 3 DCM- Digitally Controlled Mixer DCM-1 User Manual v1.0...
-
Page 4: Table Of Contents
Contents Contents ............ Connecting Paging systems ............. 24 Cloud CDPM Paging Microphones ........ 24 Safety Information ................5 Connections and wiring ........... 24 Safety Notes regarding Installation ........5 CDPM Terminations ............24 Conformities .................5 CDPM DC power ............. 24 Safety Considerations and Information ......5 Adjusting paging levels ............ - Page 5 Group Enable..............43 EMC considerations ..............55 Define Groups ..............43 Specifications ................56 Other DCM-1 adjustments............. 44 DCM‑1 Configuration Notes ..........58 Paging mic gain ..............44 To change Music Source for a Zone ......... 58 CDPM paging microphone gain ........44 To alter Music Volume in a Zone ........
- Page 6 Notes DCM-1 User Manual v1.0...
-
Page 7: Safety Information
Safety Considerations and Information should be disposed of in a responsible manner. The DCM-1 is powered by a separate Power Supply Unit (PSU), which must be earthed. Ensure that the mains power supply provides an effective earth connection using a three- wire termination. -
Page 8: Welcome
It is recognised that the tasks of design/set-up, physical installation and day-to-day operation of an audio system based on the DCM-1 are likely to be performed by at least three different people. You will find, therefore, that this manual is divided into sections: •... -
Page 9: Section : Overview
• 2 x 16 character LCD dot-matrix display (both DCM-1 An important aspect of the DCM-1’s design is that it is and CDR-1) completely self-contained, and requires no computer • 4 definable zone groups interface of any kind, either to configure or control it. -
Page 10: System Components
Any zone may have one CDR‑1, more than one, or none at all. The DCM-1 can support up to 100 CDR-1s. CDR-1s are interconnected with just one standard CAT-5 UTP cable;... -
Page 11: Le-1
Like the LE- such as a portable music centre, laptop, radio mic receiver 1, it connects to one of the DCM-1’s Extension Ports with a or similar, and connects to one of the DCM-1’s Extension single screened CAT-5 cable. -
Page 12: Me-1
DCM-1’s four dedicated Mic Inputs with a single screened CAT-5 cable. The ME-1’s two inputs are mixed together at the plate, and the summed mic signal applied to the DCM-1. The CDPM range of paging microphones integrate directly Any of the DCM‑1’s mic inputs can be routed to any zone with the DCM-1 and provide a simple and convenient without restriction. -
Page 13: System Capabilities
MICROPHONE INPUT System Block Diagram The simplified block diagram above illustrates the basic Zone Outputs signal architecture of the DCM-1. Only the routing and logic • 8 balanced line level zone outputs. for one zone output is shown. • Zones 1 & 2 are stereo, 3 to 8 are mono. -
Page 14: Remote Control
CDR-1 remote control. Note that Area 3’s remote offices, etc. The configurational flexibility of the DCM‑1 is wired directly back to the DCM-1, while those in means that it can be set up by the system designer to Areas 1 & 2 are daisy-chained together and wired back provide precisely the facilities the user needs. -
Page 15: System 2
Because these have been wired back to This shows a more complex system, which illustrates some the DCM-1 independently, each can be made available additional DCM-1 installation possibilities. Points to note: to their respective room halves as and when required. -
Page 16: System 3
INPUT 7 ZONE 7 INPUT 8 ZONE 8 MIC 1 MIC 2 AREA 3 AREA 6 MIC 3 MIC 4 PAGING MIC PAGING ACCESS CDPM CDPM CDR-1 CDR-1 DCM-1 SECURITY 3RD. PARTY PAGING SYSTEM CONTROL System DCM-1 User Manual v1.0... -
Page 17: Section : Installation

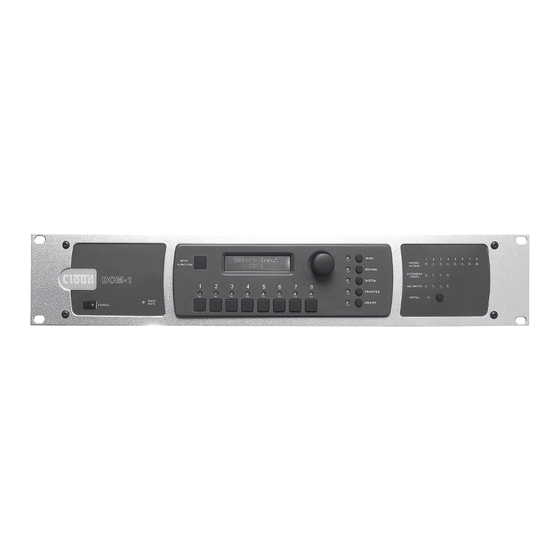

Section : Installation Description of front panel Power button: applies DC power to the DCM-1 (note Groups: the Group menu allows assignment of Zones external PSU) to Groups, and defined Groups to be enabled. LCD display: 2 x 16-character backlit blue LCD Paging Access LEDs: 8 LEDs (one per zone) which display used in all control and menu functions. -
Page 18: Description Of Rear Panel
Closed (NC) contacts; shorting (or removing a short) the zone(s) to be paged. If a Cloud CDPM is the only will mute music in all zones (see page 42). One input type of paging system being used, the connector can... -
Page 19: Hardware Considerations
LEFT If connecting a source with only a single mono output to 1 2 3 1 2 3 the DCM-1, connect it to both the L and R sockets, using a Y-splitter lead or similar. RIGHT Balanced outputs (XLRs): pin 1 ground... -
Page 20: Additional Balanced Sources
If it is necessary to connect more than one balanced join ‘cold’ to screen at the source source to the DCM-1, one of the unbalanced inputs 1 to Unbalanced 7 may be used, but the advantages of balanced connection inputs... -
Page 21: Zone Outputs
Multiple CDR-1 remote control panels may be connected to these is permissible. the DCM-1 either by wiring them directly and individually, or by “daisy-chaining” them together. In most installations, a combination of these methods is likely to be the most... - Page 22 Note that in the above diagrams there is deliberately no indication as to which zones any of the CDR‑1s are in; this is because the system imposes no restriction on their physical location. Interconnection may be made purely on the basis of wiring convenience. DCM-1 User Manual v1.0...
-
Page 23: Connections
Note that four are electrically identical. However, use of Port A/Port B in Network Diagram 1, the DCM-1’s Ports A and B are both has relevance to how terminations are set (see below). -
Page 24: Cable Length And Dc Power Considerations
Diagram 3), or to the total run between the most remote • ME-1 mic input plates cannot co-exist on the same CDR-1s if the DCM-1 is in the “middle” of the chain (i.e. “daisy-chain” as LE-1 line input plates or BE-1 balanced multiple daisy-chains of CDR-1s, see Network Diagram 1). -
Page 25: Connections And Wiring
The remote plates all have two RJ45 sockets, labelled OUTPUT and LINK. The “first” plate in a daisy‑chain wiring system should be connected to the DCM-1 using its OUTPUT socket. The LINK socket on this plate should be connected to the OUTPUT of the next plate in the chain, and so on until the last plate in the chain. -
Page 26: Connecting Paging Systems
DCM-1 #2. The each Zone. Full details on adjusting these can be found at termination in DCM-1 #1 should be set to OFF (as it is page 44. in the “middle” of the chain). -
Page 27: Zone Paging Outputs
PSU must be installed. The basic wiring scheme shown above is See page 53 for details of the DCM-1’s PSU capabilities. used, but now the “External relays” will be the intermediate relays instead of the restoration relays themselves. The restoration relays are then wired via the intermediate relays’... -
Page 28: 3Rd.-Party Paging Systems
rd.-party Paging systems Paging Access Connector The DCM-1 may be integrated with any paging system which The Paging Access connector is used to activate the paging is able to provide a microphone feed and zone selection by microphone and to select the zone(s) to which it is to be contact closure. -
Page 29: Music Mute
Music Mute LED on the front panel. If the audio system itself is to be used to provide voice alarm and/or evacuation messages, the DCM-1 can be programmed to not mute one particular input when Music Mute is made active. This input can be permanently connected to a sound... -
Page 30: Section 3 : Configuration
The DCM‑1 can be configured in a variety of ways to suit all installed situations. Most configuration functions are accessed through the menu system. For convenience, the DCM-1’s basic block diagram is repeated above. The menu system has two modes: User Mode and Installer Mode. -
Page 31: Navigating The Menu System
Navigating the menu system Context-sensitive Help messages The DCM-1’s menu system is equipped with simple Help The menu structure is divided into five submenus: text for user guidance. If no adjustment is made within 10 • seconds of selecting a menu function, text appears on the... -
Page 32: User Mode
Note that this menu function is the default, and that all other menu functions time out after approx. 45 seconds of no activity. The menu system then reverts to Music Menu, SELECT INPUT. DCM-1 User Manual v1.0... -
Page 33: Installer Mode
Installer Mode Treble The remainder of the DCM-1’s menu system is only available in Installer Mode; this is accessed by pressing the INSTALL button and entering the key in response to the display Rotary: adjusts HF EQ prompt. Installer Mode self-cancels after 45 seconds if no... -
Page 34: Input Gain
CDR-1 remote control in Adjustment of input gain is not available for sources the Zone or from the DCM-1 itself. connected via LE-1 and BE-1 remote input plates. The presence of these plates at the Extension Ports is detected, The eight numeric buttons correspond to the eight Zones;... -
Page 35: Routing Menu
Access Connector Because ME-1 remote mic input plates can be “daisy- Input chained”, enabling one of the DCM-1’s Mic Inputs will enable all ME-1 plates connected to that input. CDPM Zone Offset No separate mic level control is available on either the DCM-1 or CDR-1. -
Page 36: Configure Access Connector
To permit paging of Zones 9 and higher in a system utilising two DCM‑1s, a fixed numeric offset of 8 should be set in the “second” DCM-1 (and left at the default value of 0 in the “first”). With the first DCM‑1 feeding audio to Paging Zones 1 to 8 and the second to Paging Zones 9 to 16, correct paging of the higher-numbered Zones will result. -
Page 37: System Menu
CDR-1(s) Edit Input Label Input 1 rather than from the DCM-1. The eight numeric buttons correspond to the eight Zones; Edit Zone Label select the Zone(s) where EQ is to be adjusted by pressing Zone 1 the appropriate key(s). -
Page 38: Stereo/Mono Zone Selection
The software automatically interprets two adjacent space characters to mean the end of the text string; this saves overwriting part of a long name with multiple spaces when replacing it with a shorter one. DCM-1 User Manual v1.0... -
Page 39: Rename Zones
(i.e. to allow rapid identification of the wide range of baud rates. It may be simpler to set the baud building area). rate at the controller and leave the DCM-1’s setting at the The eight numeric buttons correspond to the eight Zones; default. -
Page 40: Power Up Mode
Rotary: selects Power Up option Press: resets Mixer It will often be desirable for the DCM-1’s settings, such as This menu function can be used to perform a hardware input selections, levels, etc., to be automatically restored reset. This is equivalent to powering the DCM-1 off and back when it is re-powered after being off for a period on again. -
Page 41: Priorities Menu
Emergency Level given on both the DCM‑1 (if it displaying the zone where |||||||||||||||| the override is occuring) and any CDR‑1s in the zone. Mute Contacts Normally Open Priorities Menu Flow Diagram DCM-1 User Manual v1.0... -
Page 42: Line Priority Hold Time
“ducking”.) The MIC PRI SEL menu function configures the 1s to 12s, in 1s increments. The default value is 1s. DCM-1 to do this. Note that the Mic Priority Release Time is global – it applies to all Zones/Groups and Mic Inputs. -
Page 43: Mic Priority Attenuation
Release Time This function (and the following three) are concerned with period. how the DCM-1 handles paging from an external CDPM or other paging microphone system. In principle, any page The rotary control sets the Release value in the range from received by the DCM-1 will be routed to its intended 1s to 12s, in 1s increments. -
Page 44: Select Emergency Source
EMERGENCY LEVEL menu function. Turn the rotary control anticlockwise to reduce the level. The relative level is shown on the display as a bargraph. The numeric buttons are not used in this function. DCM-1 User Manual v1.0... -
Page 45: Groups Menu
Zones from the Group. Confirmation of Group membership is given by the LEDs above the numeric buttons. It should be noted that if a system uses multiple DCM-1s, Groups can only comprise Zones within each DCM‑1; Zones from different DCM-1s cannot be combined. DCM-1 User Manual v1.0... -
Page 46: Other Dcm-1 Adjustments
This control sets the mic level for a CDPM paging system Level adjustment for a Zone is completely independent of interfaced with the DCM-1. Like the Paging mic level (above), the music level adjustment for that Zone, the latter being set its setting affects all zones being paged, and its adjustment is by the user. -
Page 47: Setting Up Levels For Best Performance
CDR- Remote Control Plates Setting up levels for best performance To optimise signal levels through the DCM-1 and obtain Most audio systems based around the DCM-1 will include the best signal-to-noise performance, we recommend the CDR‑1 remote control plates to permit in‑zone selection of following procedure is followed for adjusting music and music source and level. -
Page 48: Engineer Mode
Installer Mode. Pressing ZONE steps through each function in turn (in the same manner as the NEXT FUNCTION button in the DCM-1’s menu system). The two User Mode screens are also presented before the menu loops around. - Page 49 OR GROUP(S) USER Group FUNCTIONS Member ? Current Zone Group Select Group 3 Zone 2 ENGINEER MODE ENABLED KEY NEEDS TO BE Enter Key ENTERED ONCE ONLY Treble ENGINEER MODE FUNCTIONS Bass CDR- Installer and Engineer Modes DCM-1 User Manual v1.0...
-
Page 50: Display Adjustments
This lets the installer set the 4-character key code used to access CDR-1 Engineer Mode, once the CDR-1(s) in a particular Zone have been enabled in the DCM-1 System Menu (with the CDR ZONE SETUP function). The bottom row of the LCD first displays the current key;... -
Page 51: Larger Systems - Cascading Dcm-1S
Larger systems – cascading DCM-s If an installation requires more than 8 Zones, multiple that most systems will not use all of a DCM-1’s connectivity DCM-1s may be interconnected to provide a system with simultaneously. a larger number of outputs. For example, 2 DCM-1s will Line Inputs provide 16 zones, 3 DCM‑1s 24 zones, and so on. -
Page 52: Extension Ports
CDPM IN of #2. The CDPM termination in CDM-1 #1 the various wiring topologies which may be adopted (see should be set OFF, and that in DCM-1 #2 should be set ON. page 19); that used in any particular installation will be See also page 24. -
Page 53: Section 4 : Appendix
If any jumpers need to be changed, undo which may require alteration during installation. The table the 8 screws securing the top cover of the DCM-1, and below lists each jumper and its purpose, together with the remove it. -
Page 54: Rs232 Serial Control
Hardware flow control (sometimes called RTS/CTS) attenuation rather than gain, thus 0dB is maximum level requires pins 7 and 8 (at the DCM-1 end) to be connected. and at ‑62dB the zone is muted. The values of y and m in the general format are the Zone No. -
Page 55: Enable/Disable Groups
If the total current required by external items does exceed 650mA on either rail, additional PSUs will need to be added to the system. The Cloud CPM-PSU is suitable for powering CDR-1 remote control panels and CDPM microphones and can be readily interfaced with the respective networks. -
Page 56: Rj45 Pinouts
The new firmware can now be transferred. Should the Other modules are available; please enquire. transfer fail, turn the DCM-1 off, and hold the NEXT button down while powering it back on again. Go immediately To install equalisation modules, first remove the top cover to the FIRMWARE UPDATE menu function, and turn the from the DCM-1 (8 screws). -
Page 57: Factory Default Settings
The table below lists the default factory settings for all is technically well behaved; you should experience no DCM-1 menu options. These are the settings which the unit operational problems, and under normal circumstances, no will assume on power-up if POWER UP MODE is set to special precautions need to be taken. -
Page 58: Specifications
100V‑240V AC; 47‑63Hz; 1.35A Power supply +12V, 3A; ‑12V 1A PHYSICAL Dimensions (w x h x d) 482.6mm x 88mm x 170mm deep (2U 19” rackmounting unit). Dimensions do not allow for rear connectors/cabling. Weight 3.12 kg net DCM-1 User Manual v1.0... - Page 59 User Configuration Notes Overleaf DCM-1 User Manual v1.0...
-
Page 60: Dcm-1 Configuration Notes
Press the NEXT FUNCTION button so that the top line of the display shows “Level”. • Press the button (1 to 8) which corresponds to the Zone. • Adjust the volume in the Zone with the knob. DCM-1 User Manual v1.0... - Page 61 Installer Configuration Notes Overleaf DCM-1 User Manual v1.0...
-
Page 62: Installer Configuration Notes
DCM‑1 Installer Configuration Notes These tables should be filled in when the installation is complete to provide a record of the DCM‑1’s configuration. DCM-1 User Manual v1.0... - Page 63 DCM-1 User Manual v1.0...
-
Page 64: Notes
Notes DCM-1 User Manual v1.0... - Page 65 Notes DCM-1 User Manual v1.0...
- Page 66 Notes DCM-1 User Manual v1.0...
- Page 68 Cloud Electronics Limited 140 Staniforth Road Sheffield S9 3HF England Tel: +44 (0)114 244 7051 Fax: +44 (0)114 242 5462 email: info@cloud.co.uk web: www.cloud.co.uk...
