Brookstone u Control Instructions Manual

Air combat rc helicopter
Hide thumbs Also See for u Control:
Table of Contents

Advertisement

Quick Links

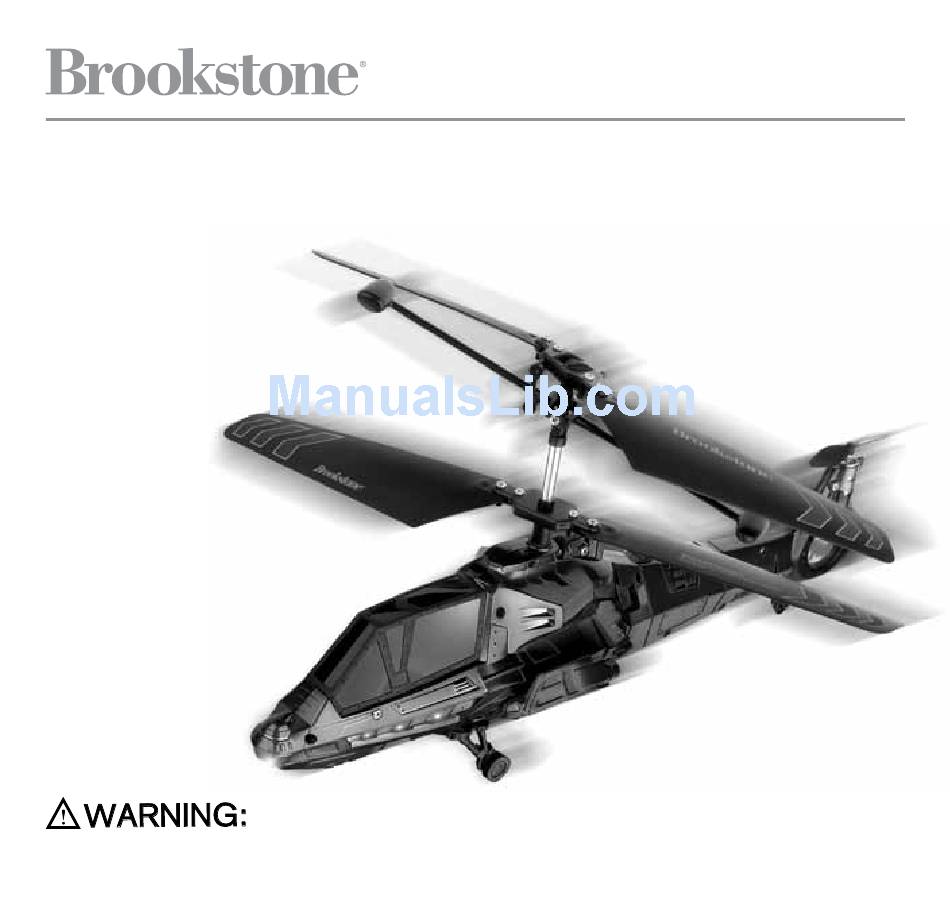

u • Control
AIr COmBAt rC HelICOPter
eASy-tO-Fly
INdOOr COPter
eXtreme BAttle ACtION
*Requires the purchase
of 2 Combat Copters
AGeS
12+
This product may contain small parts which may pose a choking hazard to children.
ANd uP

Advertisement

Table of Contents
loading

Related Manuals for Brookstone u Control

Summary of Contents for Brookstone u Control

  • Page 1 u • Control AIr COmBAt rC HelICOPter eASy-tO-Fly INdOOr COPter eXtreme BAttle ACtION *Requires the purchase of 2 Combat Copters AGeS This product may contain small parts which may pose a choking hazard to children. ANd uP...

  • Page 2: Table Of Contents

    Table of conTenTs Warnings, Cautions and FCC Information......... . . 2 Location of Parts and Controls .

  • Page 3: Warnings, Cautions And Fcc Information

    cauTion • For ages 12 and up. Parental supervision recommended when flying the helicopter. • Ensure flight path is free of spectators, pets and other sharp, spinning parts. • Keep the helicopter away from face, eyes and hair at all times. Keep fingers away from moving rotors or propellers.

  • Page 4: Fcc Information

    fcc infoRMaTion This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 5: Location Of Parts And Controls

    locaTion of PaRTs and conTRols (coPTeR) Main Housing Landing Gear Stabilizer Bar Lights Main Rotors (2) 8. On/Off Switch Main Rotor Screw 9. Charging Outlet 5. Tail Rotor 10. Tail Fin...
  • Page 6 locaTion of PaRTs and conTRols (ReMoTe) Infrared Light Charging Plug Compartment Right/Left Turn & Charging Indicator Light Front/Back Control 8. Channel Switch (A, B, C) 3. On/Off Switch 9. Throttle L/R Stabilizer Trim Buttons 10. Power Indicator Light 5. Charging Plug 11.

  • Page 7: Installing The Batteries

    insTallinG The baTTeRies 1. Turn the remote control over to access the BATTERY COMPARTMENT on the back. 2. Push both LATCH LOCKS in towards the BATTERY COMPARTMENT COVER and remove (see below). Latch Lock (2) Battery Compartment Tab (2) Cover 3.

  • Page 8: Charging Your Helicopter

    chaRGinG YouR helicoPTeR 1. Make sure the ON/OFF SWITCH on the helicopter is set to the OFF position. 2. Slide the CHARGING PLUG COMPARTMENT cover on the front of the remote control to the open position to access the CHARGING PLUG. 3.

  • Page 9: Syncing The Remote To Your Helicopter

    sYncinG The ReMoTe To YouR helicoPTeR When you and your friends are flying several helicopters in the same room simultaneously, different channels need to be selected for each helicopter to avoid signal interference. Steps 1-4 will need to be followed every time you fly. ImPOrtANt: make sure you sync each remote to each helicopter one at a time.

  • Page 10: Flight Check

    fliGhT check 1. Move the helicopter’s ON/OFF SWITCH on the helicopter’s MAIN HOUSING to ON and make sure the THROTTLE is in the down position. 2. Place the helicopter on the floor, pointed away from you, spectators, pets and breakable items. 3.

  • Page 11: Helpful Hints

    helPful hinTs Spinning? You may experience the helicopter wanting to spin in one direction or the other. This is normal and just requires slight trim adjustment to correct. If the helicopter rotates clockwise, hold down the left STABILIZER TRIM BUTTON until it stops rotating. If the helicopter rotates counterclockwise, hold down the right STABILIZER TRIM BUTTON until it stops rotating.
  • Page 12 helPful hinTs (conTinued) Helicopter displaying erratic behavior? 1. It is possible that the MAIN ROTOR and/or the TAIL ROTOR has some debris caught in the mechanism. Check for lint, dust or hair, clear the mechanisms gently and try again. 2. If your helicopter isn’t lifting off correctly, the problem may be a torn or damaged MAIN ROTOR or STABILIZER BAR.

  • Page 13: Interactive Battle Mode

    inTeRacTiVe baTTle Mode Get ready for aerial combat missions with your friends – or “enemies” – Combat RC Helicopter. PrePArAtION FOr mISSION: 1. Sync your helicopter remote to either the A or B channel first, then have your “enemy” syncs theirs to the other channel. 2.

  • Page 14: Care And Maintenance

    caRe and MainTenance • Turn both the helicopter and the remote off before cleaning. • Wipe the helicopter housing clean with a soft, slightly damp cloth. • Ensure there are no hairs or lint caught between the main or tail rotors and the drive shafts.
  • Page 15 noTes...
  • Page 16 noTes...
  • Page 17 noTes...

  • Page 18: Warranty

    (“Warranty Period”). If a defect arises and a valid claim is received within the Warranty Period, at its option, Brookstone will either 1) repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a new product that is at least functionally equivalent to the original product, or 3) provide a store credit in the amount of the purchase price of the original product.
  • Page 19 Brookstone, in so far as permitted by law, provides these products “as is. ” This warranty does not apply to: a) damage caused by failure to follow instructions relating to product’s use or the installation of components; b) damage caused by accident, abuse, misuse, fire, floods, earthquake or other external causes;...
  • Page 20 Find thousands more great ideas online 749873 Merrimack, New Hampshire USA 03054 • 800-846-3000 • Brookstone.com...
