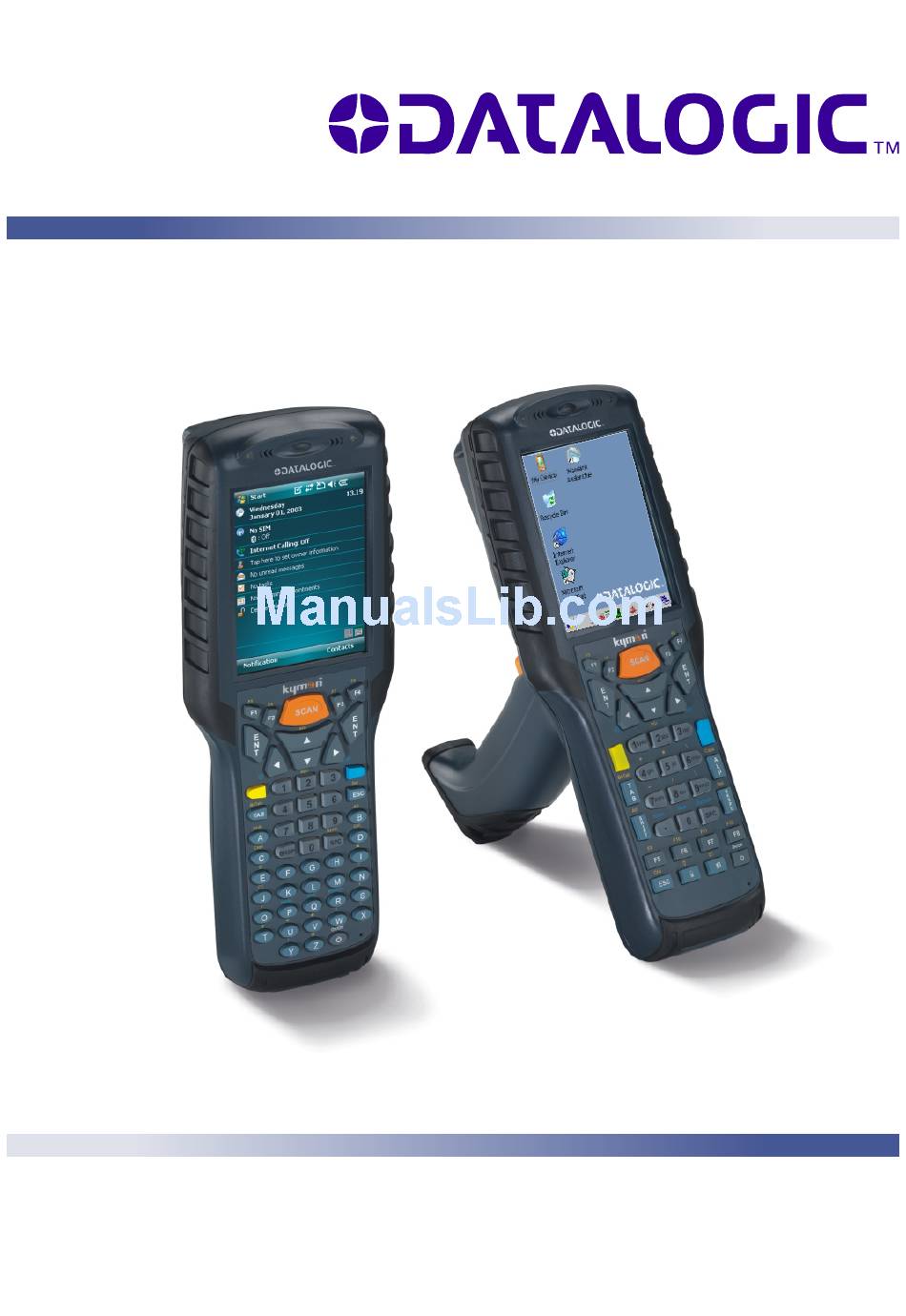

Kyman™
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Datalogic Kyman

Summary of Contents for Datalogic Kyman

  • Page 1 Kyman™ User’s Manual...
  • Page 2 Datalogic reserves the right to make modifications and improvements without prior notification. Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the use of this material.

  • Page 3: Table Of Contents

    FCC Compliance...................xi SAR Compliance..................xiii Patents......................xiii WEEE Compliance ..................xiv GENERAL VIEW ..................XVI INTRODUCTION ..................1 Kyman™ Description ..................1 Available Models................... 2 Package Contents..................2 1.3.1 Using the Belt Clip ..................4 Handle Mounting................... 6 Installing the SIM/SD Card................7 1.5.1...
  • Page 4 Description of the Keys ................27 3.5.1 Alphanumeric Keyboard (53-key Model) ............. 27 3.5.2 Numeric Keyboard (36-key Model) ............. 30 3.5.3 Resetting the Kyman™ ................33 Status Indicators ..................36 3.6.1 LED Status....................36 3.6.2 Taskbar ....................... 37 Data Capture Configuration ................ 39 3.7.1...

  • Page 5: References

    “User” refers to anyone using a Kyman™ mobile computer. “Mobile computer” and "Kyman™" refer to Kyman™ mobile computer. “You” refers to the System Administrator or Technical Support person using this manual to install, configure, operate, maintain or troubleshoot a Kyman™ mobile computer. REFERENCE DOCUMENTATION For further information regarding Kyman™...

  • Page 6: Safety Regulations

    Use only the components supplied by the manufacturer for the specific Kyman™ being used. − Do not attempt to disassemble the Kyman™ mobile computer, as it does not contain parts that can be repaired by the user. Any tampering will invalidate the warranty.

  • Page 7: Laser Safety

    LASER SAFETY The laser light is visible to the human eye and is emitted from the window indicated in the figure. This information applies to both laser models and the Kyman™ Imager Aiming System. Laser output window This product complies with...
  • Page 8 ENGLISH The following information is provided to comply with the rules imposed by international authorities and refers to the correct use of your mobile computer. STANDARD LASER SAFETY REGULATIONS This product conforms to the applicable requirements of both CDRH 21 CFR 1040 and EN 60825-1 at the date of manufacture.
  • Page 9 DEUTSCH Die folgenden Informationen stimmen mit den Sicherheitshinweisen überein, die von internationalen Behörden auferlegt wurden, und sie beziehen sich auf den korrekten Gebrauch vom Terminal. NORM FÜR DIE LASERSICHERHEIT Dies Produkt entspricht am Tag der Herstellung den gültigen EN 60825-1 und CDRH 21 CFR 1040 Normen für die Lasersicherheit.
  • Page 10 Además, eviten de dirigir el rayo láser hacia los ojos de un observador, también a través de superficies reflectantes como los espejos. LED Illuminator The use of an illuminator in the Kyman™ Imager models is a Class 1 LED product: CLASS 1 LED PRODUCT ILLUMINATORE LED CLASSE 1...

  • Page 11: Radio Compliance

    The Radio modules used in this product automatically adapt to the frequencies set by the system and do not require any parameter settings. The following shows the correspondence between the Kyman™ models and the Radio modules: Kyman™ 7XX-XXX 802.11b/g (Wi-Fi) radio card Kyman™...
  • Page 12 Information for the User ENGLISH Contact the competent authority responsible for the management of radio frequency devices of your country to verify any possible restrictions or licenses required. Refer to the web site http://europa.eu.int/comm/enterprise/rtte/spectr.htm for further information. ITALIANO Contatta l'autorità competente per la gestione degli apparati a radio frequenza del tuo paese, per verificare eventuali restrizioni o licenze.

  • Page 13: Sar Compliance

    SAR COMPLIANCE This product has been tested and found to comply with the following standards: - EN50360: product standard to demonstrate the compliance of mobile phones with the basic restrictions related to human exposure to electromagnetic fields (300 MHz – 3 GHz). - EN50361: basic standard for the measurement of specific absorption rate related to human exposure to electromagnetic fields from mobile phones (300 MHz –...

  • Page 14: Weee Compliance

    For more detailed information about disposal, contact the supplier that provided you with the product in question or consult the dedicated section at the website www.mobile.datalogic.com. Information aux utilisateurs concernant la Directive Européenne 2002/96/EC Au terme de sa vie utile, le produit qui porte le symbole d'un caisson à ordures barré ne doit pas être éliminé...
  • Page 15 Pour obtenir des informations complémentaires concernant l'élimination, veuillez contacter le fournisseur auprès duquel vous avez acheté le produit ou consulter la section consacrée au site Web www.mobile.datalogic.com. Información para el usuario de accuerdo con la Directiva Europea 2002/96/CE Al final de su vida útil, el producto marcado con un simbolo de contenedor de bassura móvil tachado no debe eliminarse junto a los desechos urbanos.

  • Page 16: General View

    GENERAL VIEW A) Backlit display G) Keyboard B) User programmable LED H) Microphone C) Speaker Laser safety label D) Good read LED Product label E) Charging status and battery low K) Adjustable elastic strap with stylus warning LED holders Scan key Battery pack...
  • Page 17 M) Trigger (Gun Version Only) N) Handle (Gun Version Only) O) Data capture/Laser Output window P) Communication/Charger/Headset connector xvii...
  • Page 18 xviii...

  • Page 19: Introduction

    The Datalogic Kyman™ rugged mobile computer is one of the key elements of Datalogic’s mobile@work™ product family for logistic solutions. Kyman™, thanks to the lightest weight of its category combined with one of the best ergonomics ever seen on the market, reduces the operators fatigue with no compromises in terms of reliability and robustness.

  • Page 20: Available Models

    KYMAN™ AVAILABLE MODELS The brand new Kyman™ is available in different models depending on the options it is equipped with. All options are listed below: • data capture options: laser, imager, RfId, laser + RfId, laser extra-long range • communication options: Wi-Fi 802.11b/g, GSM/GPRS, GSM/GPRS/EDGE, Bluetooth®,...
  • Page 21 INTRODUCTION Other accessories, necessary for the Kyman™ connection to the host computer and to the network are sold saparately: the cradle, power supply, and one or more connection cables. Remove all the components from their packaging; check their integrity and congruity with the packing documents.

  • Page 22: Using The Belt Clip

    KYMAN™ 1.3.1 Using the Belt Clip To use the belt clip, proceed as follows: Remove the elastic strap and unscrew the strap pivot. Release the belt clip pivot by pressing the belt clip unlock button. Screw the belt clip pivot on the terminal by using the fixing screw.
  • Page 23 INTRODUCTION Insert the terminal in the belt clip by sliding the belt clip pivot into the belt clip until it clicks into place. To release the terminal, press the belt clip unlock button.

  • Page 24: Handle Mounting

    KYMAN™ HANDLE MOUNTING Unscrew the A, B and C screws with a philips screwdriver and remove the cover of the handle connector socket. Insert the handle connector into the socket paying attention to the insertion key. Fix the handle to the mobile...

  • Page 25: Installing The Sim/Sd Card

    INSTALLING THE SIM/SD CARD SIM/SD Protection Cover Battery Contacts To correctly insert the SIM/SD Card, proceed as follows: Turn off the Kyman™ mobile computer. Pull the battery latch down as indicated in the next figure and remove the battery pack.
  • Page 26 Push the cards into the slot using Datalogic Stylus until it clicks into place. Follow proper ESD precautions to avoid damaging the SIM/SD. Proper ESD precautions include, but are not limited to, working on an ESD mat and ensuring that the operator is properly grounded.

  • Page 27: Removing The Sim Card And Sd-Card

    INTRODUCTION 1.5.1 Removing the SIM Card and SD-Card To remove the SIM card and the SD-card, follow the steps above to access the SIM and SD-card area, and then follow the steps below: To remove the SIM card and the SD card, just push them toward the inside, aided by the NOTCH tip of the stylus, until they click;...

  • Page 28: Accessories

    KYMAN™ ACCESSORIES Cradles 94A151101 Kyman™ Single Cradle Desk (includes slot for spare battery pack recharge; RS232 and USB communications) 94A151107 Kyman™ Vehicle Cradle 94A151115 Kyman™ Ethernet Desk Multi Cradle Charger 94A151102 Kyman™ Multi-Battery Pack Charger (4 slots) Batteries 94ACC1302 Kyman™ Standard Battery Pack (Li-Ion battery pack 2200 mAh@7.4 V) Power Supply 94ACC4595 FPS18 Power Supply without cord for Kyman™...

  • Page 29: Operating System

    NOTE OPERATING SYSTEM Datalogic Kyman™ comes in two different models, respectively supporting Windows CE and Windows Mobile. For further information regarding Windows Mobile refer to the website: http://www.microsoft.com/windowsmobile.

  • Page 30: Connections

    KYMAN™ CONNECTIONS RS232/USB DIRECT CONNECTION You can use a cable to connect the Kyman™ to a host computer to transfer data. Key: Host computer RS232 cable or USB cable Kyman™ Key: Host computer RS232 cable or USB cable Kyman™ Power Supply* * Recommended Power Supply: FPS18 AC/DC Power Supply (94ACC4595).

  • Page 31: Wlan Connection

    CONNECTIONS WLAN CONNECTION Kyman™ Wi-Fi 802.11b and Wi-Fi 802.11b/g models can communicate with the host using the on-board radio frequency module and an Access Point connected to the host computer. For models using the WiFi7 radio (7xx-xxx-xxx models), you can find information about the applet for radio configuration: http://www.summitdatacom.com/SCU.htm.
  • Page 32 KYMAN™ Wi-Fi module is on by default. In order to avoid wasting energy, you can switch it off using the Wireless Communications applet (see par. 3.8.4). To start configuring your WLAN connection, tap the Wi-Fi icon at the bottom of the screen.

  • Page 33: Wpan Connections

    CONNECTIONS WPAN CONNECTIONS ® Kyman™ mobile computers can communicate with a Bluetooth device, such as a ® printer, within a range of 10 m, using the on-board Bluetooth module. Key: A) Kyman™ ® B) Bluetooth printer In order to avoid wasting energy, the Bluetooth® module is off by default.

  • Page 34: Wwan Connections

    KYMAN™ WWAN CONNECTIONS Kyman™ GSM/GPRS/EDGE models enhance your connectivity solutions giving you an opening to an international wireless infrastructure that is the standard in Europe and Asia. GSM (Global System for Mobile communications), is a digital mobile phone system based on TDMA; it utilizes the 800, 900, 1800 and 1900 MHz bands.

  • Page 35: Cradle Connections

    If the coverage is poor, in case of continuous communication, some degradation of the barcode reading capabilities can be experienced. CRADLE CONNECTIONS The Kyman™ can also communicate via RS232, USB and Ethernet, using various cradle models. For further details, refer to the specific cradle model User’s Manual.

  • Page 36: Connection Cables

    KYMAN™ CONNECTION CABLES The following cables are listed with their order number. RS232 Direct Connection: 94A051008 WIN-NET SERIAL CABLE (HRS 3500-16P-CV) HOST/PC side Mobile Computer side 9-pin (female) 16-pin USB Direct Connection: 94A051009 WIN-NET USB CABLE (HRS 3500-16P-CV) Mobile Computer side...

  • Page 37: Rs232 Direct Connection

    CONNECTIONS RS232 Direct Connection: 94A051014 WIN-NET SERIAL PWR CABLE (HRS 3500-16P-CV) Mobile Computer side HOST/PC side 16-pin 9-pin (female) VALIM POWER CONNECTOR USB Direct Connection: 94A051015 WIN-NET USB PWR CABLE (HRS 3500-16P-CV) SHIELD HOUSING HOUSING D(-) D(+) POWER VALIM Power Supply Polarity: VEXT...

  • Page 38: Use And Functioning

    STARTUP To turn on the Kyman™, please insert a charged battery or connect the external supply. If the mobile computer was left without any power for more than a few days, the bootstrap will start and the screen will appear as black for a few minutes.
  • Page 39 USE AND FUNCTIONING Use the stylus as suggested in paragraph 3.3 to select icons and options. For the use of Left and Right Soft Keys, refer to par. 3.8.1. The mobile computer goes into power-off (low power with display and keyboard backlight off), when it is no longer used for more than a programmable timeout, which is defined in the POWER applet of the Control Panel.

  • Page 40: Windows Mobile Welcome Wizard

    KYMAN™ WINDOWS MOBILE WELCOME WIZARD In Windows Mobile, at the very first Kyman™ startup, following a cold boot or following a registry restore to default values, the PDA startup (see par. 3.1) is preceded by the Welcome Wizard. Welcome Wizard Screen The Welcome Wizard allows the user to calibrate the touch screen (see par.

  • Page 41: Using The Stylus

    On the pop-up menu that appears, tap the action you want to perform. To recalibrate the touch screen use the Stylus Applet (see par. 3.8.6). Use only original Datalogic styluses supplied with the product itself. harsh applications,...

  • Page 42: Data Capture

    3.4.1 Laser Data Capture To scan barcodes, point the Kyman™ laser model onto the code from a distance within the reading range while pressing the SCAN key. See the reading diagrams in par. 5.2 for the reading range of your model.

  • Page 43: Imager Data Capture

    3.4.2 Imager Data Capture To read a 1D or 2D code, simply point the Kyman™ Imager model onto the code from a distance within the reading range (See par. 5.1, section Kyman™ Imager Optical Features) and press the SCAN key.

  • Page 44: Rfid Data Capture

    The field of view changes its size as you move the reader closer or farther away from the code. The field of view indicated by the aiming system pattern will be smaller when the Kyman™ Imager is closer to the code and larger when it is farther from the code.

  • Page 45: Description Of The Keys

    USE AND FUNCTIONING DESCRIPTION OF THE KEYS The Kyman™ provides two different keyboards, an alphanumeric keyboard and a numeric keyboard, having a total of respectively 53 and 36 keys. 3.5.1 Alphanumeric Keyboard (53-key Model) The following image shows the Alhanumeric keyboard.

  • Page 46: Main Keys Function

    The selected character is entered after a short timeout or if a different key is pressed. It powers the Kyman™ ON or OFF. After a blue modifier key press, it allows returning to the Home page.

  • Page 47: Special Function Icons

    USE AND FUNCTIONING Special Function Icons ICON FUNCTION After a yellow modifier key press, it opens the Start menu. After a yellow modifier key press, it opens the file manager. After a yellow modifier key press, it switches ON/OFF the keyboard backlight.

  • Page 48: Numeric Keyboard (36-Key Model)

    KYMAN™ 3.5.2 Numeric Keyboard (36-key Model) Main Keys Function FUNCTION It starts data capture. They let you move forwards, backwards, upwards or downwards within text fields, scroll through a Menu list or browse among folder files.
  • Page 49 It locks and unlocks the keyboard. It opens the Start menu. It powers the Kyman™ ON or OFF. After a blue modifier key press, it allows returning to the Home page. After a blue modifier key press, it allows ending a page downloading.
  • Page 50 KYMAN™ Keys from 1 to 9 share the following behavior scheme: Function of the key when directly pressed Function of the key when in Alpha mode. When in Alpha mode press the key until the desired letter is shown. The letter is entered if you wait for a short timeout or if you press a different key.

  • Page 51: Resetting The Kyman

    To perform a warm boot, press these keys simultaneously: Cold Boot A cold boot is a complete reset of the Kyman™ in which all applications are forcibly closed and RAM is completely cleared. Registry is restored from persistent memory if a saved copy is available (see 3.8.2) and RAM file system completely erased.

  • Page 52: Resetting (Windows Mobile)

    RAM, but the file system is preserved. Registry are restored from persistent memory if available or returned to factory default. A clean boot restores the Kyman™ to a clean configuration: both the registry and the file system return to a clean status that conform to factory default, unless the user has installed an additional package.
  • Page 53 USE AND FUNCTIONING Cold Boot A cold boot is a complete reset of the Kyman™ in which all applications are forcibly closed and the RAM is completely cleared. Registry is restored from persistent memory if a saved copy is available (see Registry Applet, par. 3.8.2). Applications and data stored on file system are preserved.

  • Page 54: Status Indicators

    KYMAN™ STATUS INDICATORS 3.6.1 LED Status The Kyman™ provides three different LEDs signaling the mobile computer status. STATUS General Purpose Green/Red This LED is available to the application program. (left-side) Charging Status and Green constant It is constant once the charging process Battery Low Warning has been completed.

  • Page 55: Taskbar

    USE AND FUNCTIONING 3.6.2 Taskbar The Taskbar provides information about the time, the battery level, the keyboard function, and the decoding status. ICONS DESCRIPTION Time and Battery Icons It displays the time. In Windows CE, they are representative of five different icons indicating the battery level.
  • Page 56 KYMAN™ Windows CE Taskbar Windows Mobile Taskbars...

  • Page 57: Data Capture Configuration

    USE AND FUNCTIONING DATA CAPTURE CONFIGURATION From the Windows CE Taskbar, tap the "Decoding" icon to open a drop–down menu. Decoding can also be accessed from the Control Panel. By selecting the Info item from this drop-down menu you can access information about the Scanner and the Software;...
  • Page 58 KYMAN™ The Scan Parameters are common to all scanner modules and allow control of the scanning device (i.e. beeper control, LED control, laser timeout, etc.). Each Data Capture screen window corresponds to a branch of the tree, and the name of the current branch is displayed at the bottom of each screen window.
  • Page 59 USE AND FUNCTIONING Selecting Data Capture Setup Parameters Alternatively using the stylus, you can tap once directly on the value on the right column; continue tapping until the desired value is reached. To activate a new configuration select the File ->Save Menu to send the new configuration to the barcode decoding software and save the new configuration.

  • Page 60: Reader Parameters

    KYMAN™ Reader Parameters The barcode reading parameters and values are dependent upon the type of scanner module mounted in your mobile computer. For a detailed list of parameters and of their configuration procedures, please refer to the SDK Help file on the CD.

  • Page 61: Default Settings

    USE AND FUNCTIONING NotPrintableChar : if set to “Remove”, all not printable characters included in the scanned data are deleted and the final barcode will include only printable characters. ScanButton : enables/disables the scan button. If the scan button is disabled, the reader can be triggered under software control.
  • Page 62 KYMAN™ BARCODE SYMBOLOGY Laser Models Imager Laser Extra Long SPECIFIC READER (XXX-1XX, Models Range Models PARAMETERS XXX-4XX) (XXX-7XX) (XXX-6XX) UPC A Enabled Enabled UPC E Enabled Enabled EAN 8 Enabled Enabled EAN 13 Enabled Enabled UPC E1 Disabled EAN Bookland...

  • Page 63: Capture

    USE AND FUNCTIONING 3.7.2 Capture The Data Capture applet (Capture) enables code reading. Data Capture Window Data Capture can also be enabled through the Configuration applet by selecting File ->Scanner from the main menu, or by enabling the parameter Scan Always On in the Scan Parameters branch.

  • Page 64: Control Panel

    KYMAN™ CONTROL PANEL From the Windows CE Desktop, double tap on the "My Device" icon and then double tap on the "Control Panel" icon to open the Windows CE control panel main window. The Control Panel can also be launched from Start ->Settings ->Control Panel.

  • Page 65: Buttons

    The BUTTONS Applet allows assigning desired applications to be launched by one of the function keys (F1, F2, F3, F4). You can also select to wake up the terminal by the SCAN key and trigger key (for Datalogic Kyman-GUN™ only). Windows CE Buttons Icon Windows Mobile Buttons Icon On a Windows Mobile unit the user is also able to assign a shortcut to a function key.

  • Page 66: Registry

    KYMAN™ 3.8.2 Registry The REGISTRY ADMIN applet provides management of Windows CE/ Windows Mobile registry. From the Windows CE control panel main window, select the REGISTRY ADMIN applet by double tapping the Registry Admin icon. From the Windows Mobile Start menu, tap Settings -> System ->Registry. Select the REGISTRY ADMIN applet by tapping the Registry Admin icon.

  • Page 67: Files Admin

    USE AND FUNCTIONING 3.8.3 Files Admin The FILES ADMIN applet enables control of the permanence of files in the Windows CE System Folder. Because Windows Mobile mounts the entire file system in persistent store (rather than using RAM), it provides both users and applications with a reliable storage platform even in the absence of battery power.
  • Page 68 KYMAN™ Select an installation file (for example, a .CAB cabinet file) from the Safe Setup mask. Safe Setup First Mask Then select \Windows or a relevant sub-directory in the path box. Then, Safe Setup will recognize the new files and directories present in the \Windows directory, and will copy them to the \Backup\Windows directory.

  • Page 69: Wireless Communications

    USE AND FUNCTIONING 3.8.4 Wireless Communications The WIRELESS COMMUNICATIONS applet provides management of the Wi-Fi ® Card, the Bluetooth and GSM/GPRS modules. Windows CE Wireless Communications Windows Mobile Connectivity Icon Icon If the PDA supports Windows CE, select the WIRELESS COMMUNICATIONS applet by double tapping the Wireless Communications icon.
  • Page 70 KYMAN™ If the PDA supports Windows Mobile, the Wireless Manager application manages access to wireless connections. The 'Wireless Manager' is a sort of 'Control Panel' for Bluetooth® and phone modules. From here it's possible to turn on or off Bluetooth® and phone radio stacks.

  • Page 71: Ethernet Settings

    3.8.5 Ethernet Settings Windows CE Ethernet Cradle Datalogic Kyman™ can be connected to an Ethernet network by inserting it into the Datalogic Kyman™ Ethernet Multi Cradle. When correctly inserted into the Ethernet Multi Cradle, the Ethernet driver installed on the mobile computer will automatically run, and using the DHCP service, will dynamically assign the IP Address.
  • Page 72 Control Panel. This applet is only visible when the mobile computer is correctly inserted into the Ethernet Multi Cradle. LAN icon Ethernet LANNDS1 Communications Window The IP Address belongs to Datalogic Kyman™ while the MAC address is specific to each cradle slot.

  • Page 73: Windows Mobile Ethernet Cradle

    USE AND FUNCTIONING Windows Mobile Ethernet Cradle Before using the ethernet cradle you have to un-check the 'COM1 Enable' option on the 'System Configuration' window (Start -> Programs -> System Configuration) and re-boot the unit. For internet browsing through the ethernet cradle ensure that programs that automatically connect to the internet should connect using 'My Work Network' ->...

  • Page 74: Stylus Calibration

    KYMAN™ 3.8.6 Stylus Calibration You might need to recalibrate the touch screen (i.e. when you attempt to select one item with the stylus, another item is erroneously selected). To recalibrate the touch screen on Windows CE, complete the following steps: Select Start >...
  • Page 75 USE AND FUNCTIONING Figure 2 To recalibrate the touch screen on Windows Mobile, complete the following steps: Select Start > Settings > System > Screen to open the Screen Settings dialog as shown in Figure 3. Figure 3...
  • Page 76 KYMAN™ Tap Align Screen to open the Calibration screen shown in Figure 4. Carefully press and briefly hold stylus on the center of the target. Repeat as the target moves around the screen. Press the <ESC> key at any time to cancel the stylus calibration.
  • Page 77 USE AND FUNCTIONING Startup stylus calibration on Windows CE When starting the terminal, a stylus calibration screen comes up if valid calibration settings are not available. This happens in the following circumstances: At the first startup of the terminal. After restoring registry default settings using the applet Registry Admin and performing a warm boot.

  • Page 78: Volume Settings

    KYMAN™ 3.8.7 Volume Settings From the Windows CE control panel main window, select the VOLUME SETTINGS applet by double tapping the Volume Settings icon. From the Windows Mobile Start Menu, tap Settings -> System -> Volume Settings. Select the VOLUME SETTINGS applet by tapping the Volume Settings icon.
  • Page 79 USE AND FUNCTIONING GSM : it is automatically activated each time a phone-call is started. It is not available when using cradle loudspeaker this case Current Profile = Cradle).

  • Page 80: Output Tab

    KYMAN™ Output Tab It allows setting the volume for each audio profile: The “Master Volume” slider allows setting the volume used by all audio profiles. In addition, it is possible to attenuate the volume for each single profile through the dedicated slider.
  • Page 81 USE AND FUNCTIONING Two radio buttons allow selecting the type of cradle to be used. Check the “Cradle desk, AC plug or none” radio button, if using a cradle different from the vehicle cradle or an AC adapter plug. If using a vehicle cradle, check the related radio button. By inserting the mobile computer into the cradle when the “Cradle vehicle”...

  • Page 82: Windows Connections

    Kyman™ and synchronize the information on them. Synchronization compares the data on the Kyman™ with that on the desktop computer and updates both computers with the most recent information.
  • Page 83 USE AND FUNCTIONING In Windows Mobile before using the ActiveSync follow the directions described in 2.1 NOTE Visit the following Microsoft Web site for the latest in updates, technical information, and samples: http://www.microsoft.com/windowsmobile/resources/downloads NOTE ActiveSync® Remote ® Microsoft® ActiveSync Remote is no longer supported in Windows CE.

  • Page 84: Bluetooth® Manager Device Setup

    Kyman™ you must perform the discovery procedure and enable the device as follows: ® Place the Bluetooth device within the range of the Kyman™ (10 meters). From the “Control Panel” main window double tap on the “Bluetooth” applet to open the ®...
  • Page 85 USE AND FUNCTIONING Tap on the “Discovery” button to enter the related window; then, tap on the “Scan” button to run the Discovery procedure. Once the Discovery procedure has been ® completed, select the desired Bluetooth device from the list. It is also possible to digit ®...
  • Page 86 KYMAN™ Windows Mobile Bluetooth® Manager Device Setup Before turning on Bluetooth®, ensure that the two devices are within close range and that both Bluetooth®-enabled devices are discoverable. Tap Start -> Settings -> Connections tab. Tap Bluetooth > Mode Select or clear the “Turn on Bluetooth” check box: By default, Bluetooth®...
  • Page 87 USE AND FUNCTIONING Tap the name of the other device, and tap Next: In Passkey, if you want to use a passkey (recommended for enhanced security), enter a alphanumeric passkey between 1 and 16 characters, and tap Next. Otherwise, leave the passkey blank, and tap Next:...
  • Page 88 KYMAN™ Enter the same passkey on the other device. To give the partnership a more meaningful name, change the name of the device in Name. Tap Finish. You can give a more meaningful name to a Bluetooth® partnership to help you recognize it when selecting from a list of partnerships: Tap Start ->...
  • Page 89 USE AND FUNCTIONING Other devices with Bluetooth® capabilities can detect your device and attempt to beam information to it, establish a partnership, or use a Bluetooth® service. To make a device discoverable: Tap Start -> Settings -> Connections tab. Tap Bluetooth > Mode Tab. Select the “Turn on Bluetooth”...
  • Page 90 KYMAN™ If you no longer want your device to be discoverable, clear the “Make this device visible to other devices” check box. Your device will not detect and notify you of incoming Bluetooth® beams unless you set it up to do this. To receive a Bluetooth® beam: Tap Start ->...

  • Page 91: Ftp Server Setup

    The Kyman™ Operating System includes a sample File Transfer Protocol (FTP) server. FTP is used for copying files to and from remote computer systems over a network using TCP/IP. You can establish a connection to your Kyman™ using its FTP Server through the following interfaces: WLAN using the WiFi radio LAN through the Datalogic Kyman™...

  • Page 92: 3.10 Backup Directory File Management

    KYMAN™ 3.10 BACKUP DIRECTORY FILE MANAGEMENT All of the Windows CE system files reside in RAM (volatile memory) except for the Backup directory, which resides in FLASH (non-volatile memory). Therefore the contents of the Backup directory are persistent even if the mobile computer is re- booted or the battery pack is changed.

  • Page 93: 3.11 Firmware Update For Windows Ce

    USE AND FUNCTIONING 3.11 FIRMWARE UPDATE FOR WINDOWS CE The Datalogic Kyman ™ is equipped with a tool that implements a firmware update service. This tool, called Datalogic Updater ( DLUpdater ), is compatible with all hardware versions of the following WindowsCE 5.0 models: Datalogic Skorpio ™...
  • Page 94 KYMAN™ Firmware Update Procedure Download the update from the web site (see previous par.). It is a zip file containing the files: • DLUpdater.exe – that starts the update; • DLUpdate.bin – binary file containing the updated firmware; Copy the files DLUpdater.exe (optional) and DLUpdate.bin on a Mini SD card.
  • Page 95 USE AND FUNCTIONING Following the operating system upgrade, the message shown in figure 3 may come up at the terminal startup. It informs the user that a flash disk formatting (folder \backup ) would required for a clean update and asks whether to proceed with this operation.

  • Page 96: Maintenance

    It is possible to recharge the battery pack by using the FPS-18 AC/DC external power supply directly connected to the Kyman™, see par. 2.1. Alternatively, it is also possible to recharge the battery pack by using the Kyman™ Single Cradle Desk or the Kyman™ Vehicle Cradle.
  • Page 97 MAINTENANCE Even if the storage temperature range is wider, In order to achieve the longest battery life, store the terminal and the spare batteries between 20 to 30 ºC (68 to 86 ºF). The Batteries must be charged at a temperature ranging from 0° to +45 NOTE °C (+32°...

  • Page 98: Replacing The Battery Pack

    KYMAN™ REPLACING THE BATTERY PACK To correctly replace the battery pack, proceed as follows. Turn off the Kyman™. Pull the battery latch down as indicated in the figure below. Remove the battery pack. Battery Contacts To correctly insert the new battery pack, first insert the bottom and then the upper part of the battery pack into the slot as indicated in the following figure: Press it back until the battery latch is automatically closed.
  • Page 99 MAINTENANCE Use only a Datalogic Mobile approved power supply. Use of an alternative power supply will void the product warranty and may cause product damage. Do not apply voltages to the batteries contacts. WARNING Risk of explosion if the battery is replaced by an incorrect type.

  • Page 100: Cleaning The Mobile Computer

    In order to guarantee an adequate operating autonomy, when replacing the battery pack the mobile computer checks the battery energy level. If the battery is not sufficiently charged, Kyman™ does not turn on (when pressing the ON button). In this case, either substitute the battery pack with a charged one NOTE (sufficiently charged) or insert Kyman™...

  • Page 101: Technical Features

    TECHNICAL FEATURES TECHNICAL FEATURES TECHNICAL DATA Kyman™ Common Features Electrical Features Power DC supply 14 V ± 5% Battery pack 2 cell Li-Ion 2200 mAh@ 7.4 V (nominal) Internal backup battery Rechargeable Li-Ion 30 mAh Communication Features Windows CE COM Port COM5 Bluetooth®...
  • Page 102 KYMAN™ Mechanical Features Dimensions (LxWxH) NO HANDLE : 23.8 x 9.1 x 5.5 cm / 9.3 x 3.5 x 2.2 in WITH HANDLE: 23.8 x 9.1 x 16.2 cm / 9.3 x 3.5 x 6.3 in Weight (depending on model) NO HANDLE: 550 - 630 g / 19.3 - 22.1 oz (incl.
  • Page 103 UPC A, UPC E, UPC E1, EAN 8, EAN 13, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 32, Code 93, Interleaved 2 of 5, discrete 2 of 5, Codabar, MSI, RSS Kyman™ Laser Optical Features Laser Optical Features Kyman™ Kyman™...
  • Page 104 KYMAN™ Kyman™ Imager Optical Features (XXX-7XX models) Imager Optical Features Max. resolution 1D Codes 0.10 mm / 4 mils 2D Codes 0.17 mm / 6.6 mils Skew angle ± 40 ° Pitch angle ± 35° Depth of field* (linear): X-dimension...

  • Page 105: Reading Diagrams

    (7.5 mils) 0.13 mm (5 mils) 0.10 mm (3.8 mils) 0.33 mm (13 mils) 800 mm Kyman™ HP Laser (XXX-1XX models) Reading Zones (10° skew angle) 1.00 mm (40 mils) 0.50 mm (20 mils) 0.38 mm (15 mils) 0.25 mm (10 mils) 0.19 mm...
  • Page 106 KYMAN™ Kyman™ XLR (XXX-6XX models) Reading Zones (10° skew angle) 0.50 mm (20 mils) 1 mm (40 mils) 380 cm...

  • Page 107: Test Codes

    TEST CODES TEST CODES High Density Codes 0.25 mm (10 mils) !17162H! Code 39 17162 Ë"8NduÌ 2/5 Interleaved 0123456784 ÌtestwÎ Code 128 test x(0B2DE5*KKKKLM( EAN 13 (6450*TRMN( EAN 8...
  • Page 108 KYMAN™ Medium Density Codes 0.38 mm (15 mils) !17162H! Code 39 17162 Ë"8NduÌ Interleaved 2/5 0123456784 ÌtestwÎ Code 128 test 100% x(0B2DE5*KKKKLM( EAN 13 100% (6450*TRMN( EAN 8...
  • Page 109 TEST CODES Low Density Codes 0.50 mm (20 mils) !17162H! Code 39 17162 Ë"8NduÌ Interleaved 2/5 0123456784 ÌtestwÎ Code 128 test 120% x(0B2DE5*KKKKLM( EAN 13 120% (6450*TRMN( EAN 8...

  • Page 110: Glossary

    GLOSSARY Access Point A device that provides transparent access between Ethernet wired networks and IEEE 802.11 interoperable radio-equipped mobile units. Hand-held mobile computers, PDAs or other devices equipped with radio cards, communicate with wired networks using Access Points (AP). The mobile unit (mobile computer) may roam among the APs in the same subnet while maintaining a continuous, seamless connection to the wired network.
  • Page 111 EDGE Enhanced Data rates for GSM Evolution, EDGE is a wireless packet-based communication service based on GSM. Its data transfer can reach a theoretical maximum of 473.6 Kbps. EEPROM Electrically Erasable Programmable Read-Only Memory. An on-board non-volatile memory chip. Flash Disk Non-volatile memory for storing application and configuration files.
  • Page 112 RFID (Radio frequency identification) A technology that incorporates the use of electromagnetic or electrostatic coupling in the radio frequency (RF) portion of the electromagnetic spectrum to uniquely identify an object, animal, or person. RFID is coming into increasing use in industry as an alternative to the barcode identification.

  • Page 113: Index

    Glossary; 92 Buttons; 47 Handle; 6 Charging the Batteries; 78 Cleaning the Mobile Computer; 82 Connection Cables; 18 Kyman™ Description; 1 RS232 Direct Connection; 18 RS232 Power Connection; 19 USB Direct Connection; 18 USB Power Connection; 19 Maintenance; 78 Connections; 12 Microsoft®...
  • Page 114 Reference Documentation; v References; v Technical Features; 83 Registry; 48 Test Codes; 89 Replacing the Batteries; 80 Resetting the Kyman™; 33 Using the Stylus; 23 Safe Setup; 49 Safety Regulations; vi FCC Compliance; xi Vocal Communication; 60 Laser Safety; vii Volume Settings;...
  • Page 115 DATALOGIC MOBILE S.r.l. Via S. Vitalino, 13 40012 - Lippo di Calderara Bologna - Italy dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el Kyman XXX-XXX e tutti i suoi modelli and all its models et tous ses modèles...
  • Page 116 ETSI EN 300 328 v1.6.1, November 2004: (ERM); LECTROMAGNETIC COMPATIBILITY AND ADIO PECTRUM ATTERS IDEBAND TRANSMISSION SYSTEMS TRANSMISSION EQUIPMENT 2,4 GH OPERATING IN THE BAND AND USING WIDE BAND MODULATION TECHNIQUES ARMONIZED COVERING ESSENTIAL REQUIREMENTS UNDER R&TTE D ARTICLE OF THE IRECTIVE ETSI EN 300 330-2 v1.1.1, June 2001: (ERM);...
  • Page 117 World wide Sales Network available from: www.mobile.datalogic.com/contacts Datalogic Mobile S.r.l. Via S. Vitalino, 13 40012 Lippo di Calderara di Reno Bologna - Italy Telephone: (+39) 051-3147011 Fax: (+39) 051-3147561 ©2008 Datalogic Mobile S.r.l. 822000775 (Rev. F) 07/08...
