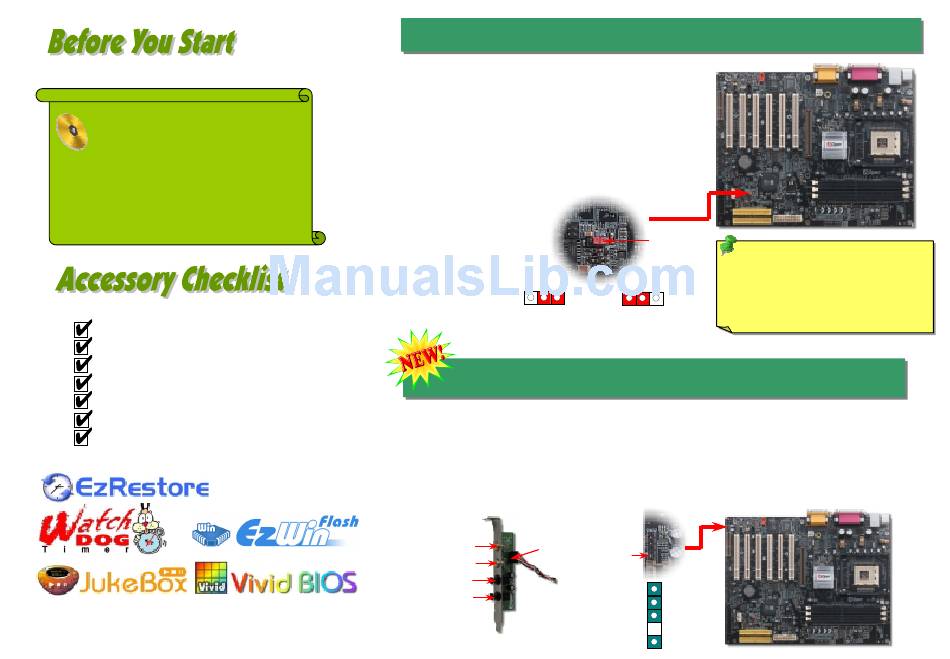

Jp14 Clear Cmos; S/Pdif (Sony/Philips Digital Interface) Connector - AOpen AX45-533 Easy Installation Manual

Everything you need to boot this
motherboard is included in this
Easy Installation Guide. For more
information, a complete
User's Manual can be found in the
Bonus Pack CD Disc. Thanks for
the help of saving our earth.
This Motherboard x1
This Easy Installation Guide x1
80-wire IDE Cable x1
Floppy Disk Drive Cable x1
Registration Card x1
Bonus Pack CD x1
NORTON AntiVirus CD x1
PART NO: 49.88I04.001(M) DOC. NO: AX45533-EG-E0208B
You can clear CMOS to restore system default setting. To
clear the CMOS, follow the procedure below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 for a few seconds.
4. Return JP14 to its normal setting by shorting pin 1 & pin 2.
Online
5. Connect ATX power cable back to connector PWR2.
S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides impressive
audio quality through optical fiber and allows you to enjoy digital audio instead of analog audio. Normally
there are two S/PDIF outputs as shown, one for RCA connector, the most common one used for consumer
audio products, and the other for optical connector with better audio quality. Through a specific audio
cable, you can connect the S/PDIF connector to other end of the S/PDIF audio module, which bears
S/PDIF digital output. However, you must have a S/PDIF supported speaker/amplifier/decoder with
S/PDIF digital input to connect to the S/PDIF digital output to make the most out of this function.
S/PDIF OUT
S/PDIF IN
S/PDIF OUT
S/PDIF IN

1. JP14 Clear CMOS

1
Normal
(default)

2. S/PDIF (Sony/Philips Digital Interface) Connector

(RCA)
S/PDIF
Pin 1
Cable
(Optical)
S/PDIF Module
(User Upgrade Optional)
Pin 1
Tip: When should I Clear CMOS?
1. Boot fail because of overclocking...
1
2. Forget password...
3. Troubleshooting...
Clear CMOS
S/PDIFIN
GND
S/PDIFOU
T
NC
1
S/PDIF Connector
