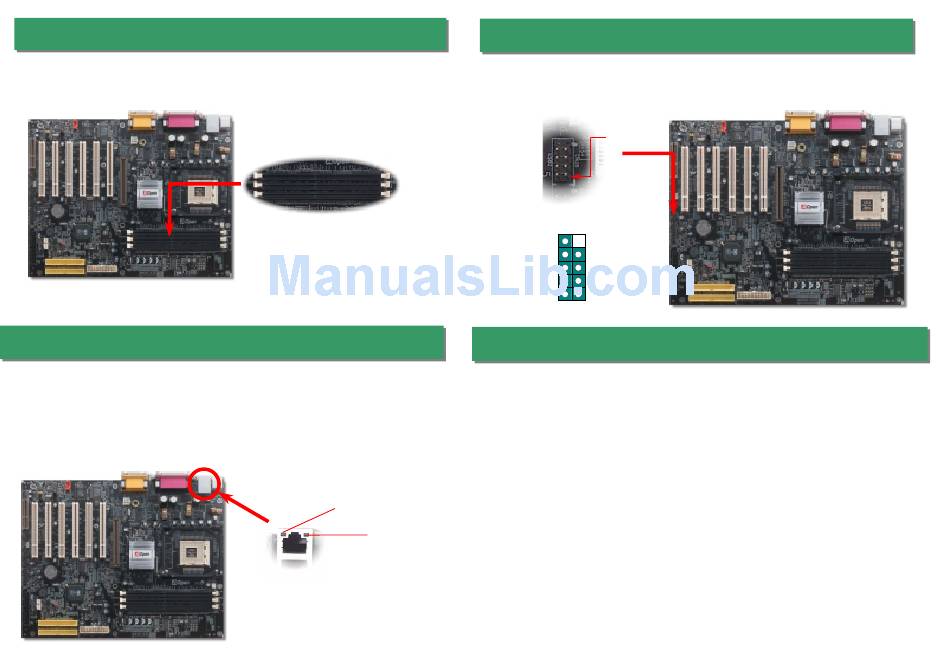

10. DIMM Socket

This motherboard has three 184-pin DDR DIMM sockets that allow you to install
DDR266/200 (DIMMx3) memory up to 3 GB or DDR333 (DIMMx2) memory up to 2 GB.
11. 10/100 Mbps LAN onboard (AX45-533N only)
The South Bridge SIS961B includes a fast Ethernet controller on chip. On the strength of
RealTek 8100BL LAN controller on board, which is a highly-integrated Platform LAN
Connect device, it provides 10/100M bps Ethernet for office and home use, the Ethernet
RJ45 connector is located on top of USB connectors. The green LED indicates the link
mode, it lights when linking to network and blinking when transferring data. The orange
LED indicates the transfer mode, and it lights when data is transferring in 100Mbps mode.
To enable or disable this function, you may simply adjust it through BIOS.
This motherboard provides six USB connectors to connect USB devices, such as mouse,
keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You
can use proper cable to connect other USB connectors to the back panel or front panel of
chassis.
DIMM1
DIMM2
DIMM3
USB_FP_OC0
USB_FP_P1+
USB_FP_P1-
USBPWR0
You can install LAN Driver under Windows95/98, Windows NT and Windows 2000 for
RealTek 8100BL PCI Fast Ethernet adapter by following steps.
Installing driver procedure on Microsoft Windows 95 :
-----------------------------------------------------
1. Select "Driver from disk provided by hardware manufacturer" when being asked which
driver you would like to install.
2. Specify the setup file pathname
[CD-ROM]:Driver\LAN\RTL8100\Windows\Win95\WIN95A (for Windows 95 and Win95A) or
[CD-ROM]:Driver\LAN\RTL8100\Windows\Win95 (for Windows 95 OSR2).
3. Follow the procedure and insert Windows 95 system disk to complete setup step.
Green/ACT
4. Windows 95 will finish the other installation procedures automatically, and then restart your
system.
Installing driver for Win98/Win98 SE/Windows2000/Windows ME :
Orange/Speed
-------------------------------------------------------------------
1. Select "Driver from disk provided by hardware manufacturer" when being asked which
driver you would like to install.
2. Specify the setup file pathname
[CD-ROM]:Driver\LAN\RTL8100\Windows\WIN98 (for Windows 98/98 SE) or
[CD-ROM]:Driver\LAN\RTL8100\Windows\WIN2000 (for Windows 2000) or
[CD-ROM]:Driver\LAN\RTL8100\Windows\Windows ME (for Windows ME)
3. Follow the procedure and insert your system disk (Win98/Win98
SE/Windows2000/Windows ME) to complete setup step.
4. Win98/Win98 SE/Windows2000/Windows ME will finish the other installation procedures
automatically, and then restart your system.
12. Support Six USB Connectors
Pin 1
USB2 Connector
KEY
GND GND
USB_ FP_P0+
USB_FP_P0-
USBPWR0
1
13. Installing LAN Driver (AX45-533N only)
