INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
23:1 RATIO
Monark Sprayers
2760 psi (19.0 MPa, 190 bar) Maximum Fluid Working Pressure
120 psi (0.84 MPa, 8.4 bar) Maximum Air Inlet Pressure
Part No. 236–721
Cart Mounted pump
Part No. 236–722
Pail Mounted Pump
Part No. 236–723
Wall Mount Pump
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
COPYRIGHT 1994, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
308–367
Supersedes Rev. A
First choice when
quality counts.
Rev. B
and PCN B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco Monark 03289A
Summary of Contents for Graco Monark 03289A

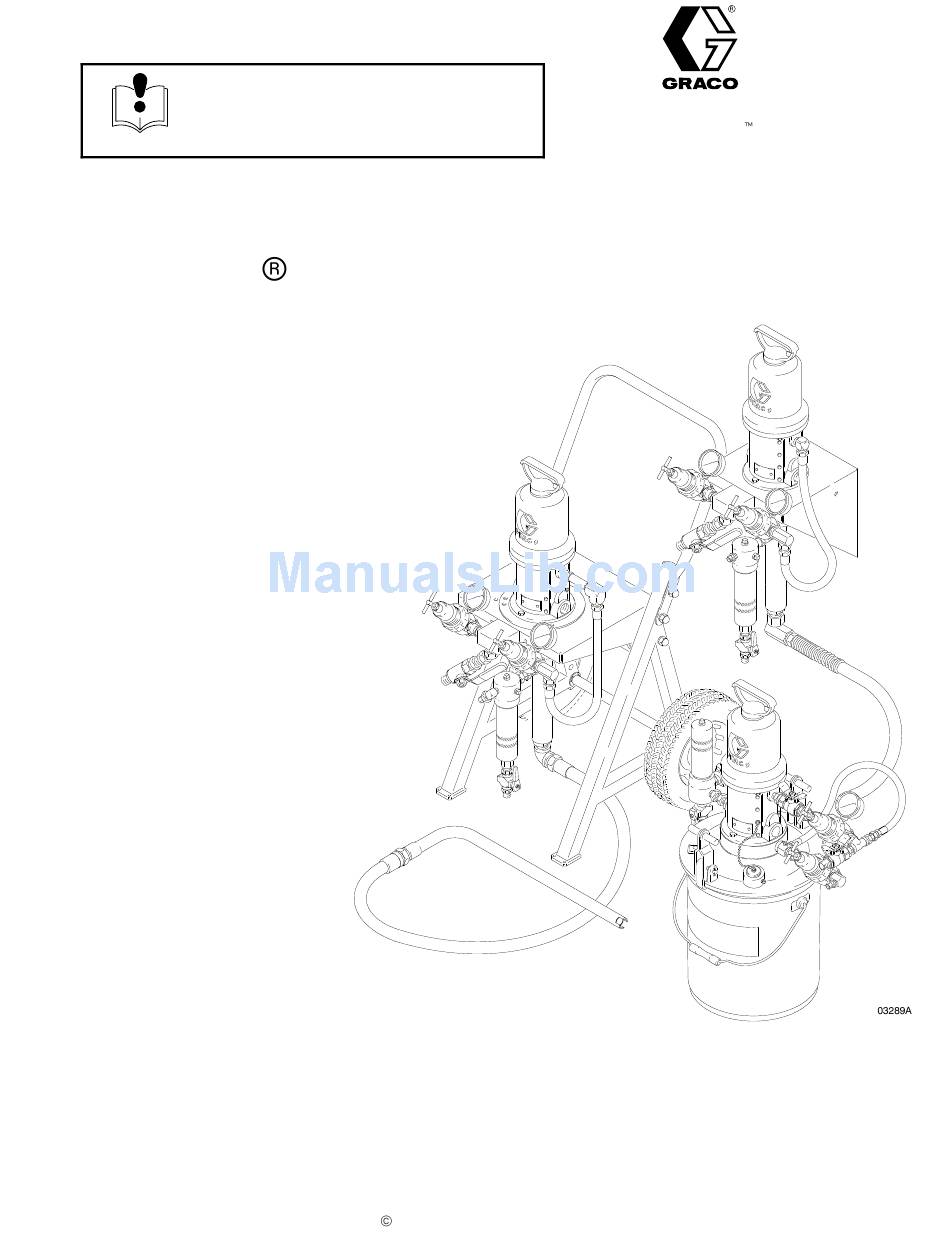

- Page 1 INSTRUCTIONS-PARTS LIST This manual contains important warnings and information. READ AND KEEP FOR REFERENCE. INSTRUCTIONS 23:1 RATIO Monark Sprayers 2760 psi (19.0 MPa, 190 bar) Maximum Fluid Working Pressure 120 psi (0.84 MPa, 8.4 bar) Maximum Air Inlet Pressure Part No. 236–721 Cart Mounted pump Part No.
