AOpen AK89 Max Easy Installation Manual

AOpen AK89 Max Easy Installation Manual

Motherboard
Hide thumbs Also See for AK89 Max:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual

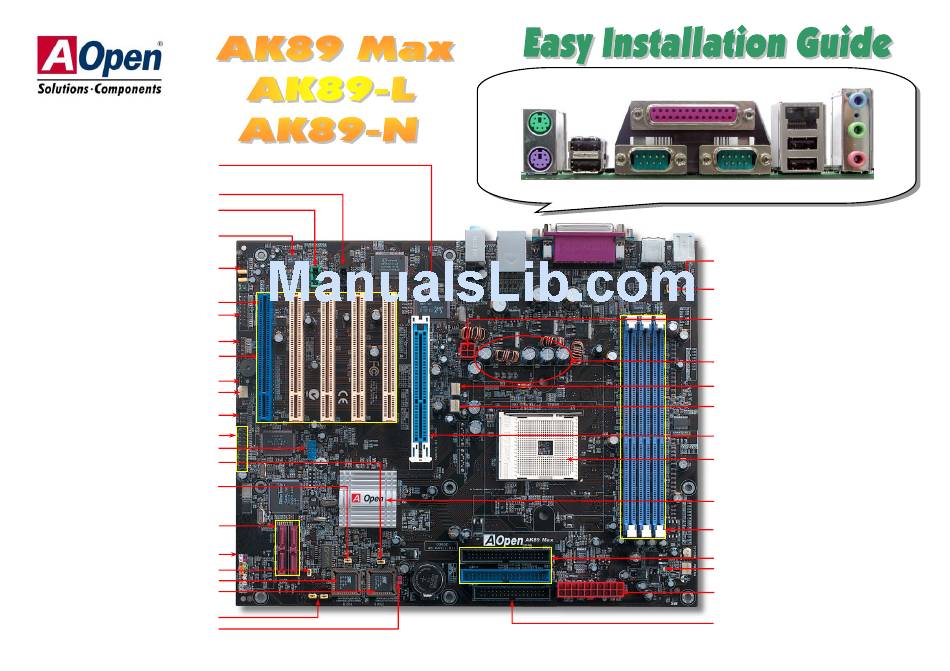

Realtek RTL8110S LAN Chip (for AK89 Max
and AK89-L)
Realtek RTL8100C LAN Chip (for AK89-N)
CD-IN Connector
AUX-IN Connector
Onboard AC97 CODEC
Front Audio Connector
Self-Powered PCI Slot (for AK89 Max only)
Game Port Connector
S/PDIF Connector
32-bit PCI Expansion Slot x5
Case Open Connector
SYSFAN2 Connector
IrDA Connector
IEEE 1394 Connector x2 (for AK89 Max only)
USB2.0 Connector
JP25 BIOS2 Protection Jumper (for AK89 Max
only)
JP24 BIOS Select Jumper (for AK89 Max
Serial ATA Connector x4 (with RAID function)
(for AK89 Max only)
Front Panel Connector
JP2 Dr. Voice II Speaker/buzzer Output Jumper
(for AK89 Max only)
Phoenix Award Flash ROM BIOS (BIOS1) (4Mbit
for AK89 Max only, 2Mbit for AK89-L / AK89-N)
Phoenix Award 4Mbit Flash ROM BIOS (BIOS2,
for AK89 Max only)
JP15 & JP16 Dr. Voice II Language
Selection Jumper (for AK89 Max only)
JP14 BIOS Data Clear Jumper
AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.
only)
SPP/EPP/ECP
PS/2 Mouse
Parallel Port
Connector
PS/2 Keyboard
COM 1 Port
USB2.0 Ports
Connector
RJ45 LAN Jack
Line-In
Speaker
Out
MIC-In
COM 2 Port
USB2.0 Ports
Resetable Fuse
JP28 Keyboard/Mouse Wakeup Jumper
4-pin 12V. ATX Power Connector
3300μF Low ESR Capacitors
CPUFAN Connector
SYSFAN1 Connector
AGP 8X Expansion Slot
754-pin CPU Socket with Voltage and
Frequency Auto-Detection that supports
TM
TM
AMD
Athlon
64 CPU
NVIDIA nForce3 chipset
184-pin DIMMx3 supports DDR400 max. to
2GB and DDR333/266 max. to 3GB
IDE Connector x2 (ATA/66/100/133 supported)
STBY LED
ATX Power Connector
FDD Connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AK89 Max and is the answer not in the manual?

Questions and answers

Related Manuals for AOpen AK89 Max

Summary of Contents for AOpen AK89 Max

  • Page 1 JP15 & JP16 Dr. Voice II Language Selection Jumper (for AK89 Max only) FDD Connector JP14 BIOS Data Clear Jumper AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.

  • Page 2: Jp14 Clear Cmos

    Pin 1 40-wire IDE Cable x 1 (for AK89 Max only) Silicon Image Serial ATA Driver Diskette x 1 (for AK89 Max only) IEEE 1394 Cable x 1 (for AK89 Max only) USB2.0 + Game Port Cable x 1 (for AK89 Max only)

  • Page 3: Installing Cpu & Housing Fan

    Tip: If your system hangs or fails to boot because of overclocking, simply use <Home> key to restore the default setting or you can wait the AOpen “Watch Dog ABS” reset the system in five seconds and system will auto-detect hardware again.

  • Page 4: Installing Memory Modules

    7. Connecting IDE, Floppy Cables 6. Installing Memory Modules This motherboard has three 184-pin DDR DIMM sockets that allow you to install Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDD connector. Be DDR266/333 memory up to 3 GB and DDR400 memory up to 2GB. Non-ECC DDR RAM is careful of the pin1 orientation.

  • Page 5: Front Audio Connector

    11. S/PDIF Connector 9. Front Audio Connector S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides If the housing has been designed with an audio port on the front panel, you’ll be able to impressive audio quality through optical fiber and allows you to enjoy digital audio instead of connect onboard audio to front panel through this connector.

  • Page 6: Bios Upgrade Under Windows Environment

    First step is to set JP24 to Pin2-3 to boot up the system with BIOS 2. After that, please set the JP24 back to Pin1-2, go to AOpen website (http://download.aopen.com.tw/downloads) to get your BIOS version suited for your motherboard, download and installed it.

  • Page 7: Part Number And Serial Number

    IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. AK89 Max is model name of motherboard; R1.02 is BIOS version...
  • Page 8 Online Manual: To download manual, please log on and then select your preferred language. Under “Type” directory, choose “Manuals” to go to our manual database. You can also find the manual and EIG in AOpen Bonus Pack. http://download.aopen.com.tw/downloads Dear Customer, Thanks for choosing AOpen products.

This manual is also suitable for:

Ak89-nAk89-l
