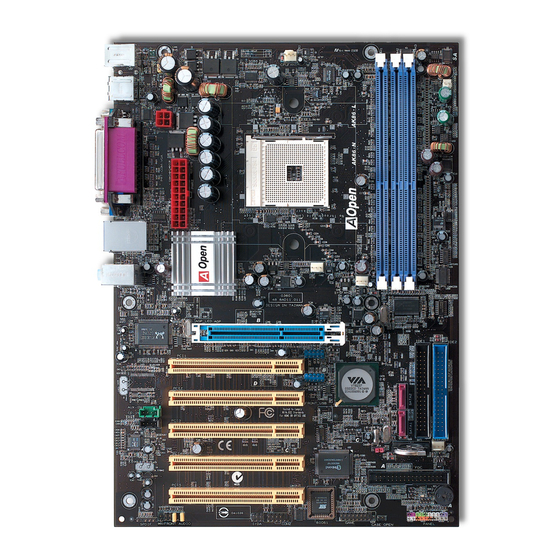

Realtek Gigabit LAN Chip (for AK86-L)
VIA 10/100Mbps LAN Chip (for AK86-N)
AUX-IN Connector
CD-IN Connector
Onboard AC97 CODEC
S/PDIF Connector
Front Audio Connector
32-bit PCI Expansion Slot x5
IrDA Connector
COM2 Connector
Phoenix Award 4Mbit Flash ROM BIOS
USB2.0 Connector x2
Game Port Connector
JP14 CMOS Data Clear Jumper
Case Open Connector
Serial ATA Connector x2 (with RAID function)
FDD Connector
STBY LED
Front Panel Connector
SYSFAN2 Connector
AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.
SPP/EPP/ECP
PS/2 Mouse
Parallel Port
Connector
PS/2 Keyboard
USB2.0 Ports
COM 1 Port
Connector
RJ45 LAN Jack
Line-In
Speaker
Out
MIC-In
USB2.0 Ports
Resetable Fuse
JP28 Keyboard/Mouse Wakeup Jumper
4-pin 12V. ATX Power Connector
ATX Power Connector
3300μF Low ESR Capacitors
AGP 8X Expansion Slot
754-pin CPU Socket with Voltage and
Frequency Auto-Detection that supports
TM
TM
AMD
Athlon
64 CPU
CPUFAN Connector
SYSFAN1 Connector
®
VIA
K8T800 Chipset and VT8237 SB
184-pin DIMMx3 supports DDR400 max. to
2GB and DDR333/266 max. to 3GB
IDE Connector x2 (ATA/66/100/133 supported)
Advertisement
Table of Contents
Related Manuals for AOpen AK86-L
Summary of Contents for AOpen AK86-L
- Page 1 Serial ATA Connector x2 (with RAID function) FDD Connector STBY LED Front Panel Connector IDE Connector x2 (ATA/66/100/133 supported) SYSFAN2 Connector AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.
-
Page 2: Jp14 Clear Cmos
1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. Everything you need to boot this 2. Remove ATX power cable from connector PWR2. motherboard is included in this 3. -
Page 3: Installing Cpu & Housing Fan
Tip: If your system hangs or fails to boot because of overclocking, simply use <Home> key to restore the default setting or you can wait the AOpen “Watch Dog ABS” reset the system in five seconds and system will auto-detect hardware again. -
Page 4: Installing Memory Modules
7. Connecting IDE, Floppy Cables 6. Installing Memory Modules This motherboard has three 184-pin DDR DIMM sockets that allow you to install Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDD connector. Be DDR266/333 memory up to 3 GB and DDR400 memory up to 2GB. Non-ECC DDR RAM is careful of the pin1 orientation. -
Page 5: Front Audio Connector
11. S/PDIF Connector 9. Front Audio Connector S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides If the housing has been designed with an audio port on the front panel, you’ll be able to impressive audio quality through optical fiber and allows you to enjoy digital audio instead of connect onboard audio to front panel through this connector. -
Page 6: Bios Upgrade Under Windows Environment
You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select and it’s STRONGLY RECOMMENDED to close all the applications before you start the model name. upgrading. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://english.aopen.com.tw/) Unzip download... -
Page 7: Part Number And Serial Number
IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. AK86-L is model name of motherboard; R1.02 is BIOS version... - Page 8 Online Manual: To download manual, please log on and then select your preferred language. Under “Type” directory, choose “Manuals” to go to our manual database. You can also find the manual and EIG in AOpen Bonus Pack. http://download.aopen.com.tw/downloads Dear Customer, Thanks for choosing AOpen products.
