GRAPH TECH GHOST User Manual page 8

Jazz ® or Precision
•
Remove the strings and the bridge saddles from the guitar.
•
Remove the entire bridge assembly.
•
Drill holes in the bridge plate beneath each saddle, after setting intonation, to
allow the pickup wires to be routed through to the bridge cavity (Diagram 3).
•
Install the GHOST Pickup System saddles on the bridge plate. Route the wires
through the new holes.
•
Connect the wires from the pickups to the common connector block. Be sure
to match correct lead color to string (see Pickup Color Codes, page 22).
•
Connect the dual connector cable assembly to the spare position on the
common connector block and route the other end through to the control cavity.
Re-install the bridge assembly, arranging the pickup wires so that they are not
damaged.
Bridge Plate
Les Paul ® Style Instruments
• Remove the strings and the saddles from the guitar.
• Remove the bridge pickup.
• Install the GHOST Pickup System saddles. Route the wires through the pickup
cavity.
• Re-install the bridge pickup.
• Connect the wires from the pickups to the common connector block. Be sure
to match correct lead color to string (see Pickup Color Codes, page 22).
• Connect the dual connector cable assembly to the spare position on the
common connector block and route the other end through to the control
cavity. Re-install the bridge assembly, arranging the pickup wires so that they
are not damaged.
8
® Style Instruments

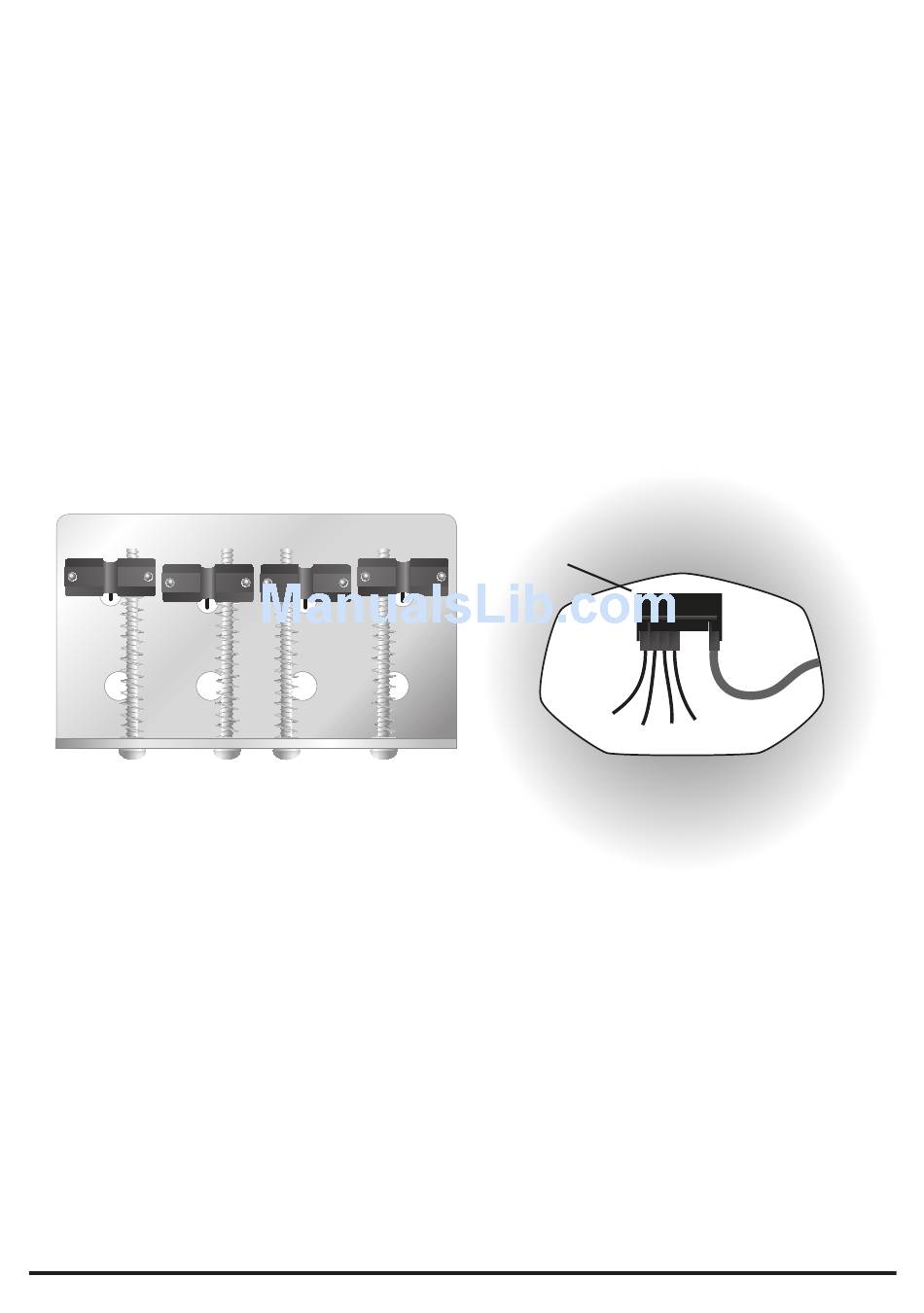

Diagram 3.
Connector
Block
E
D G
A
Inside the Bridge Cavity
