• Remove the strings and the bridge saddles from the guitar.
• Remove the entire bridge assembly.
• Remove the pickup from the bridge plate.
• Install the GHOST Pickup System saddles on the bridge plate. Route the wires
through the pickup hole (Diagram 2).
• Re-install the pickup on the bridge plate.
• Connect the wires from the pickups to the common connector block. Be sure
to match correct lead color to string (see Pickup Color Codes, page 22).
• Connect the dual connector cable assembly to the spare position on the
common connector block and route the other end through to the control cavity.
Re-install the bridge assembly, arranging the pickup wires so that they are
not damaged.
E
A
Inside the Bridge Cavity
• Alternatively, the pickup wires may be
routed through individual holes drilled
beneath each saddle in the bridge plate.
IMPORTANT: Be sure to set your intona-
tion before drilling holes in baseplate.
E
G B
D

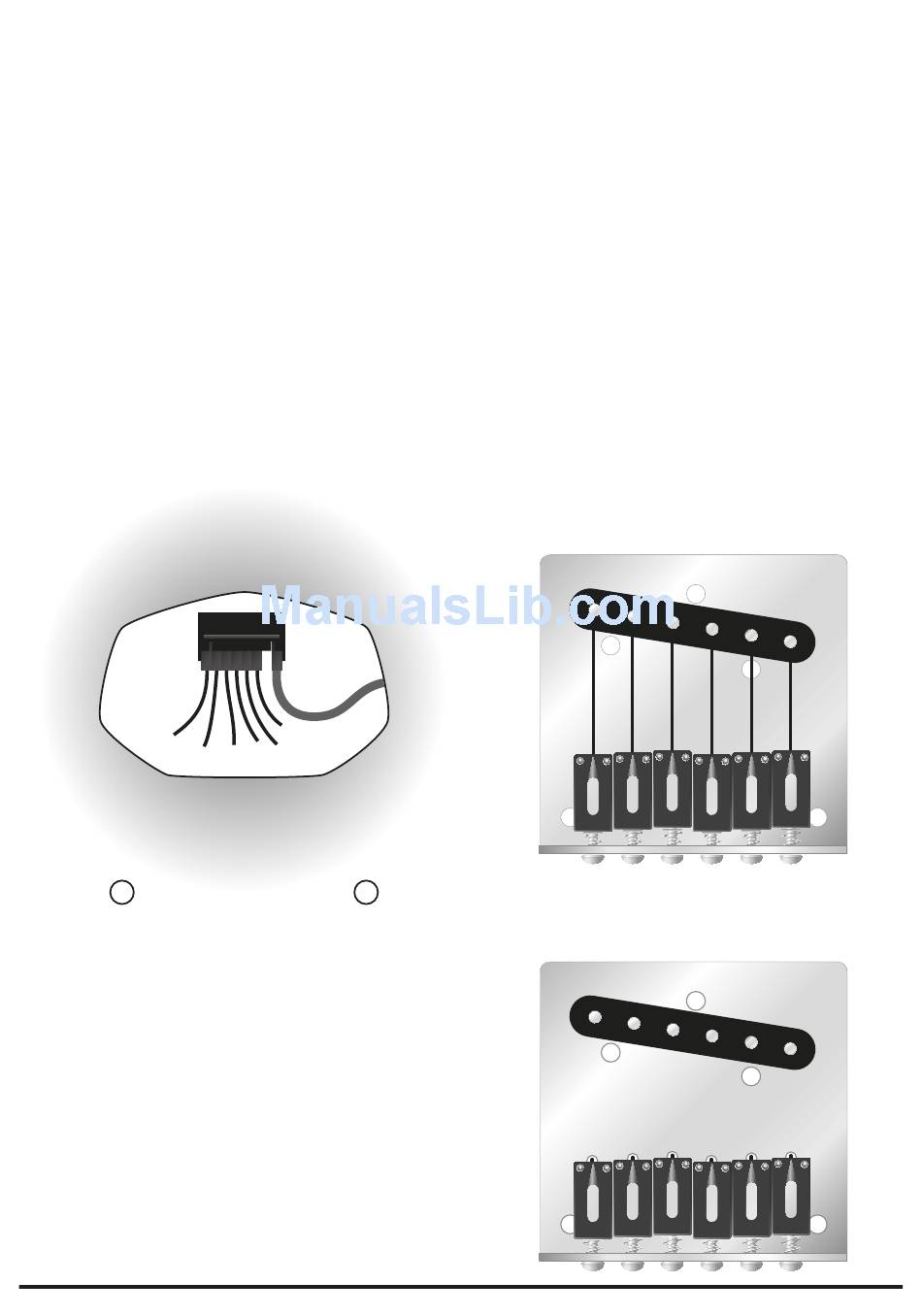

Diagram 2.
Bridge Plate
