GRAPH TECH GHOST User Manual page 15

• Plug the cable from the GHOST pickups into the PIN pins of the Acousti-Phonic
Intelligent Pre-amp.
• Plug the BE-5003-00 Six-Pin Connector (blue, red, white and black wires) into
the RING, TIP, and SW pins of the Acousti-Phonic Intelligent Pre-amp. Route
the wires to the stereo jack. Cut to length and solder the wires to the tip, ring,
switch and shank contacts of the jack (Diagram 9, page 15).
• Plug the BE-5002-00 Six-Pin Connector (purple, yellow, green and black wires)
into the GHOST and VOL pins of the Acousti-Phonic Intelligent Pre-amp. Cut
the GHOST (purple) wire to length and solder to the top contact of the GHOST
volume pot (Diagram 9). Cut the VOL (yellow) wire to length and solder to the
centre contact of the GHOST volume pot. Cut the ground (black) wire to length
and solder to the bottom contact of the GHOST volume pot. Connect the MAG
(green) wire to the mag pickup output.
• Solder a wire from the outer casing of the GHOST volume pot to ground.
• Plug the cable from the battery snap into the BAT pins of the Acousti-Phonic
Intelligent Pre-amp. Make sure that the two red leads connect to the
Signal side of the pins marked BAT and PWR, and the two black leads
to the Ground side.

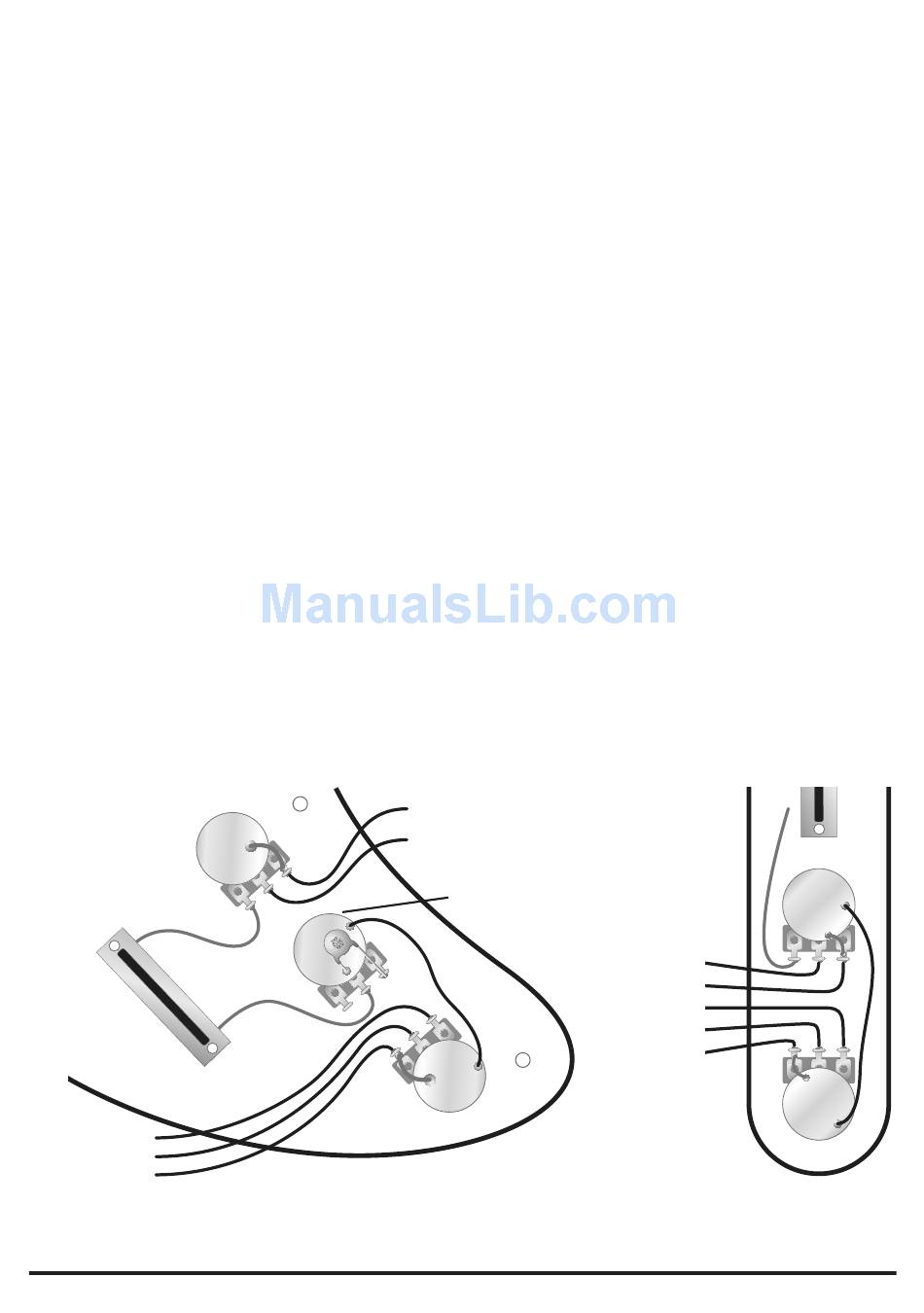

The wiring diagrams below show the GHOST volume pot fitted in place of an
existing Tone control. For clarity, the wiring diagrams highlight the new wires.
Magnetic
Volume
GHOST (Purple)
VOL (Yellow)
GND (Black)
Strat Style Instruments
Diagram 9.
GND (Black)
MAG (Green)
Magnetic
Tone
GHOST
Volume
MAG (Green)
GND (Black)
GHOST (Purple)
VOL (Yellow)
GND (Black)
Tele Style Instruments
15
