GRAPH TECH GHOST User Manual page 18

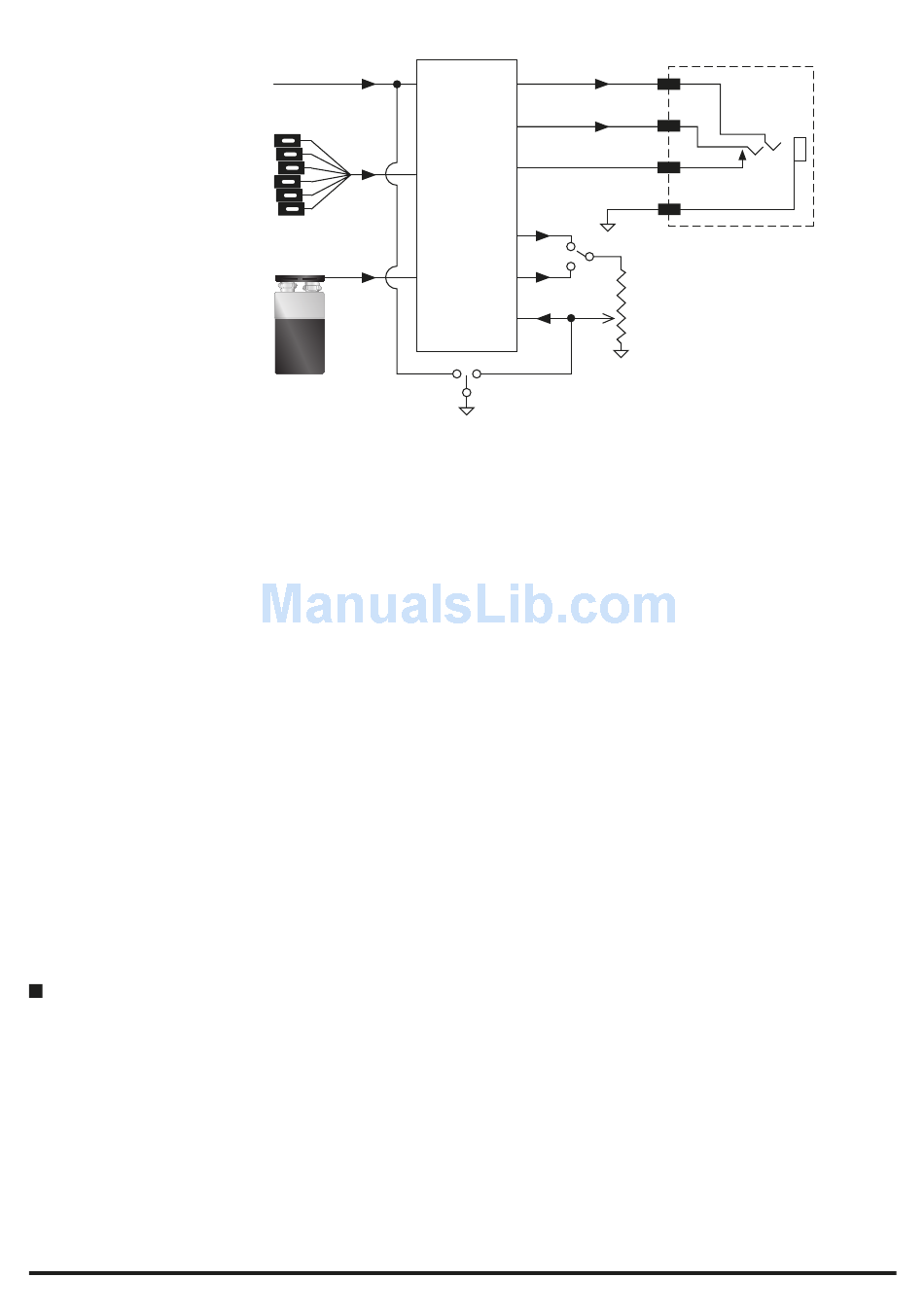

Diagram 10 Continued.
Magnetic Pickups
and Controls
Pickups
Battery
STEP 5: Optional QuickSwitch
If you are NOT installing the optional QuickSwitch, skip to STEP 6, page
19. When a guitar equipped with an Acousti-Phonic Intelligent Pre-amp is con-
nected to an amplifier via mono cable, the Acousti-Phonic Intelligent Pre-amp
automatically provides a blended magnetic/GHOST signal. To play with just a
mag sound the GHOST volume control is set to zero. To play with just an acoustic
sound the mag volume control is set to zero. This is fine unless you need to
change quickly from one sound to the other. Then you have to adjust two volume
controls quickly.
A Quick Switch Assembly is available to allow quick switching between mag,
acoustic or blended sound. In the mag position the switch mutes the GHOST
signal leaving just the mag sound. In the acoustic position the switch mutes the
mag signal leaving just the acoustic sound. In the centre position the switch has
no effect, leaving the blended sound.
Quick Switch Assembly part number PE 0111-00
To install and wire the Quick Switch Assembly:
• Install the switch in a new hole in the pick guard (or control plate).
• Plug QuickSwitch into the QSW pin contact on the Acousti-Phonic Intelligent
Pre-amp. (Diagram 11).
For clarity the wiring diagrams show only the new wires.
18
Acousti-Phonic Intelligent Pre-amp
GHOST
Optional QuickSwitch & Mid/Dark Switch Schematic
MAG
TIP
RING
Switch
SW
PIN
Mid
Boost
MID
BATT GHOST
Pickups
VOL
Quick
Switch
Stereo Jack
Tip
Ring
Shank
GHOST
Volume
