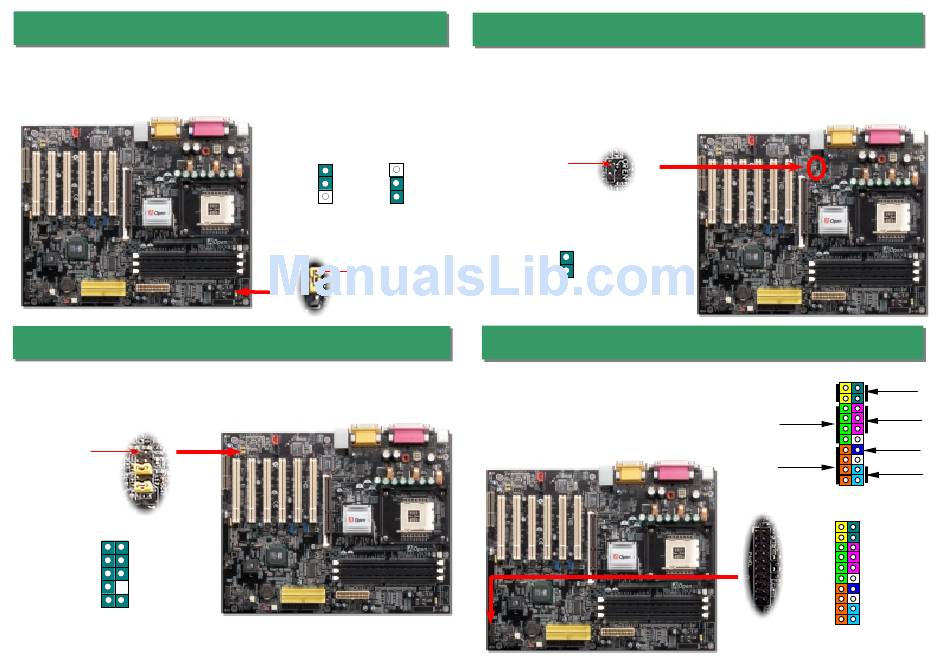

10. JP29 Memory Voltage Jumper
This motherboard supports all DDR200/266/333 DDR SDRAM on market, therefore you
don't need to adjust this JP29 memory voltage jumper from its default setting. However, if
you wish to use DDR400 SDRAM which requires higher voltage on this motherboard, you
may have to adjust the jumper to pin1-2 for a higher voltage supply up to 2.7V.

11. Front Audio Connector

If the housing has been designed with an audio port on the front panel, you'll be able to
connect onboard audio to front panel through this connector. By the way, please remove the
jumper cap from the Front Audio Connector before you connect the cable. Do not remove
this yellow jumper cap if your housing doesn't have an audio port on the front panel.
Pin 1
1
AUD_MIC
AUD_GND
AUD_MIC_BIAS
AUD_VCC
AUD_FPOUT_R
AUD_RET_R
NC
KEY
AUD_FPOUT_L
AUD_RET_L
The "CASE OPEN" header provides chassis intrusion-monitoring function. To make this
function works, you have to enable it in the system BIOS, connect this header to a sensor
somewhere on the chassis. So, whenever the sensor is triggered by lights or by the opening of
the chassis, the system will beep to inform you. Please be informed that this useful function
only applies to advanced chassis, you may purchase an extra sensor, attach it on your chassis,
and make a good use of this function.
1
1
Default
2.7V
Pin1
JP29
Memory Voltage Jumper
Attach the power LED, speaker, and reset switch connectors
to the corresponding pins. If you enable "Suspend Mode" item
in BIOS Setup, the ACPI & Power LED will keep flashing while
the system is in suspend mode.
Locate the power switch cable from your ATX housing. It is
2-pin female connector from the housing front panel. Plug this
connector to the soft-power switch connector marked SPWR.

12. Case Open Connector

Pin 1
1
Sensor
GND
Intrusion Sensor

13. Front Panel Connector

1
SPWR
ACPI & PWR
IDE LED
LED
ACPI LED (BLUE)
Speaker
Reset
NC
SPWR
NC
GND
+5V
ACPI LED-
IDE LED
GND
IDE LED
ACPILED
+5V
NC
+5V
ACPI_B
GND
GND
NC
RESET
SPEAKER
GND
