INSTRUCTIONS–PARTS LIST

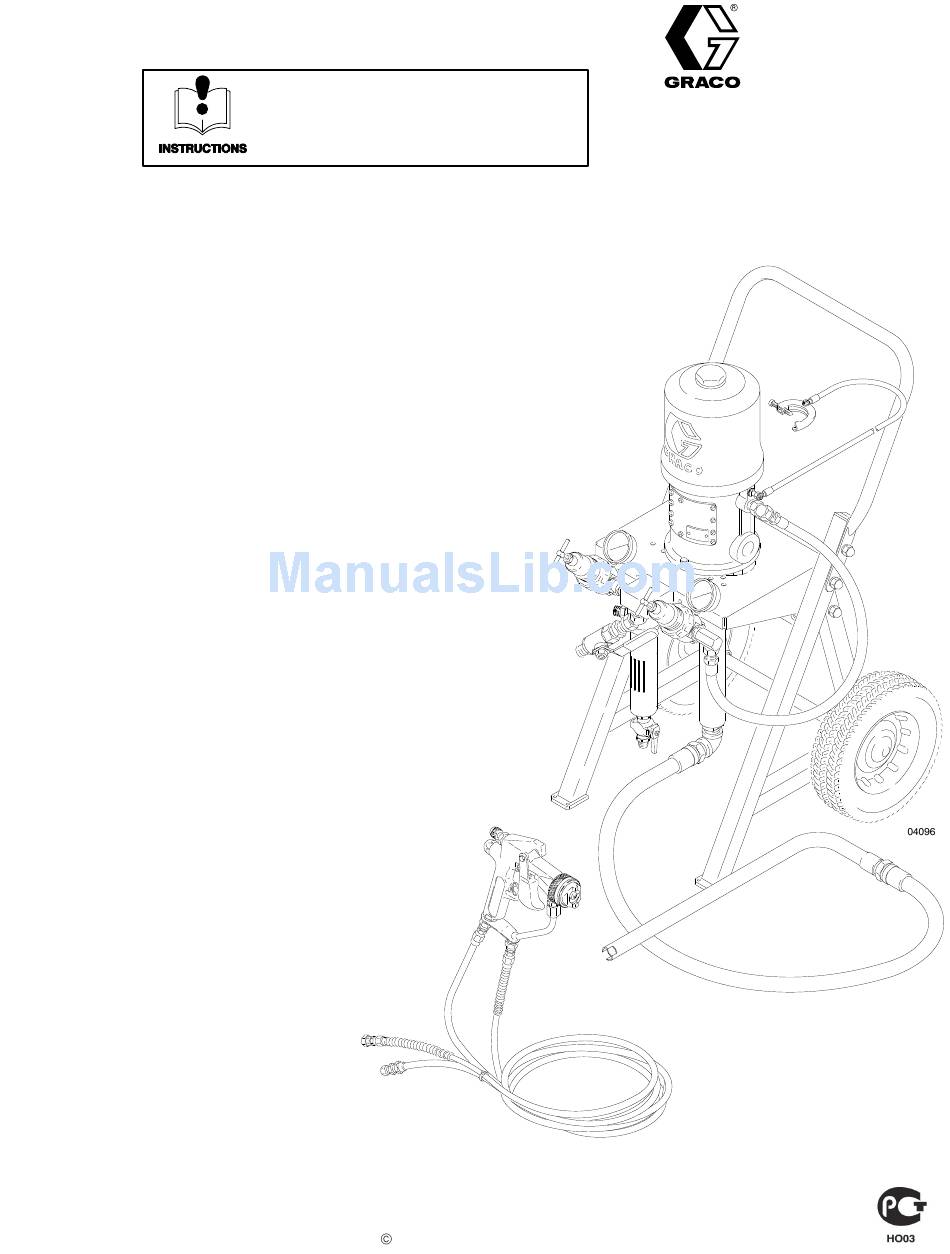

30:1 PRESIDENT STAINLESS STEEL, CART MOUNTED
AA200hs Air-Assisted Airless
Spray Package
See the Data Sheet, 305–664, for application information
3000 psi (210 bar) Maximum System Working Pressure
100 psi (6.9 bar) Maximum Air Inlet Pressure
Model 237–421, Series A
Complete package includes pump,
AA200hs air-assisted airless gun with 411 spray tip,
portable cart, 25 ft. (7.6 m) air and fluid hoses,
air and fluid controls, and fluid feed.
IMPORTANT
This manual provides basic safety, installation and
operation information for the package. For your safety,
also read the component manuals supplied with this
package before operating it.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
COPYRIGHT 1994, GRACO INC.
308–460
Rev. A
